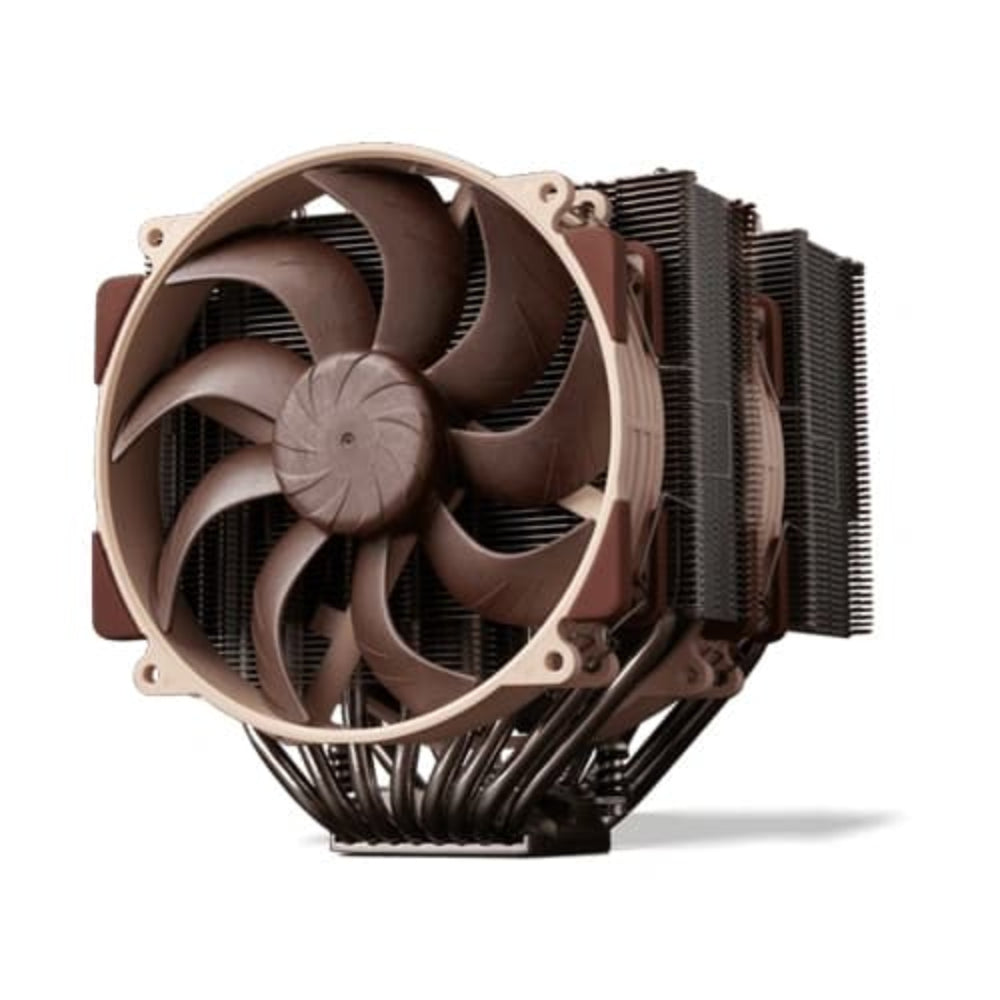

NOCTUA NH-D15 G2 LBC Brown 140mm Dual Tower CPU Air Cooler ( Brown )

The Noctua NH-D15 G2 LBC is the low-base-convexity variant of Noctua's second-generation NH-D15 dual tower CPU air cooler, engineered for builders who want silent, high-efficiency thermal management without liquid cooling. Where the original NH-D15 relied on six heatpipes, the G2 steps up to eight, delivering meaningfully increased thermal throughput that pays dividends under extreme sustained loads of 250 W and beyond. At the heart of this upgrade is a redesigned fin-stack architecture. Fin spacing has been tightened from 1.9 mm to 1.6 mm, enabling Noctua to integrate 26 additional fins and grow the total fin surface area by 20% compared to the first-generation model. The front fin-stack is also 5 mm narrower than before, balancing airflow load more evenly across both fans. Despite this extra density, the overall heatsink is actually 9 mm shallower in depth than its predecessor while maintaining the same width and total height including fans — a genuine reduction in physical footprint alongside a performance increase. Powering airflow are two NF-A14x25r G2 PWM fans running in a speed-offset configuration, meaning the front fan spins at a slightly different rate than the rear to reduce interference patterns and keep noise low. Both fans measure 140 mm and operate under full PWM control, allowing motherboard headers to modulate speed based on real-time thermal demand. The LBC designation matters at the platform level. Because current CPUs vary in contact-surface flatness, Noctua offers the NH-D15 G2 in three base-convexity variants. The LBC variant is optimised for platforms where a flatter or slightly concave IHS benefits from a lower-convexity base for maximum contact area. Bundled NM-ISW1 shim washers for LGA1700 reduce ILM pressure on the CPU, with typical temperature improvements of around 2–3 °C cited by Noctua. Installation uses Noctua's Torx-based SecuFirm2+ system, which ships with its own screwdriver for controlled, even mounting force. Socket compatibility covers AMD AM5 and AM4, as well as Intel LGA1851, LGA1700, LGA1200, LGA1150, LGA1151, LGA1155, and LGA1156. Verifiable specifications: - Model: NH-D15-G2-LBC - Cooling type: Air cooler, dual tower - Heatpipes: 8 - Fin surface area increase vs. NH-D15: +20% - Fin spacing: 1.6 mm (vs. 1.9 mm on NH-D15) - Fan size: 140 mm (dual NF-A14x25r G2 PWM, speed-offset) - Heatsink depth reduction vs. NH-D15: 9 mm - Socket support: AMD AM5, AM4; Intel LGA1851, LGA1700, LGA1200, LGA1150/1151/1155/1156 - Mounting system: SecuFirm2+ (Torx-based) - Includes: NM-ISW1 shim washers for LGA1700 - Colour: Brown (Noctua signature) - RGB: No - Warranty: 6 years - PWM control: Yes
