NOCTUA NH-L9A-AM5 92mm Single Tower Non RGB CPU Air Cooler ( Brown )

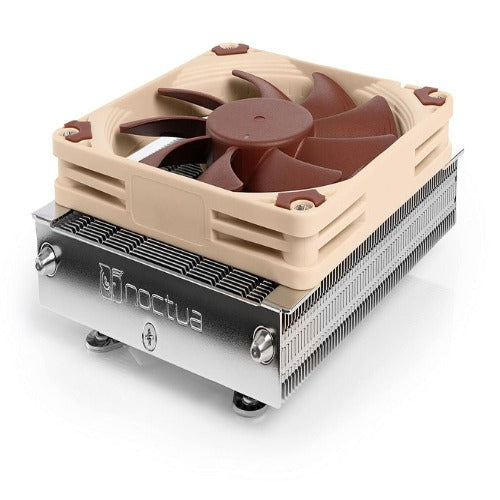

The Noctua NH-L9A-AM5 is a purpose-built low-profile CPU air cooler designed specifically for AMD AM5 (LGA1718) processors in small form factor and HTPC enclosures. With a total installed height of just 37mm — comprising a 23mm heatsink body and the 14mm-thin NF-A9x14 fan — it fits comfortably in cases with minimal CPU cooler clearance where taller coolers simply cannot be used. The cooler's compact 95mm × 92mm footprint fully respects AMD's socket keep-out zones, meaning neither the heatsink nor the fan overhangs DRAM slots or nearby PCIe connectors. Users building on mini-ITX motherboards can install full-height RAM modules and standard PCIe expansion cards without obstruction or restricted access to near-socket headers. Driving airflow is the Noctua NF-A9x14 HS-PWM fan — a 92mm × 92mm × 14mm unit equipped with Noctua's SSO2 self-stabilising oil-pressure bearing and proprietary AAO (Advanced Acoustic Optimisation) frame. At its 2500 RPM maximum it delivers up to 57.5 m³/h of airflow at a peak noise level of 23.6 dB(A). The included NA-RC7 Low-Noise Adaptor caps speed at 1800 RPM, reducing airflow to 40.8 m³/h and acoustic output to 14.8 dB(A) — useful for low-TDP CPUs and APUs where near-silent operation is a priority. PWM control allows the fan to spin as slowly as 600 RPM at 20% duty cycle. Mounting uses Noctua's custom SecuFirm2™ system for AM5, which attaches through the holes of the motherboard's stock backplate — no backplate removal required. The NH-L9A-AM5 ships with NT-H1 pro-grade thermal compound pre-included. Fins are soldered to the copper heatpipes rather than press-fitted, preventing the thermal-cycling degradation that can occur over years with interference-fit designs. An optional NA-FD1 fan duct accessory (sold separately) can channel fresh air from a perforated case panel, potentially improving CPU temperatures by up to 5°C depending on the system configuration. AM4 compatibility is available via the optional NM-AM4-L9aL9i mounting kit, available free of charge through Noctua's website. Verified Specifications: • Socket: AMD AM5 (LGA1718) • Total height (with fan): 37 mm | Heatsink height: 23 mm • Dimensions with fan: 95 mm (W) × 92 mm (D) × 37 mm (H) • Dimensions without fan: 114 mm (W) × 92 mm (D) × 23 mm (H) • Weight with fan: 465 g | Without fan: 390 g • Material: Copper base and heatpipes, aluminium fins, soldered joints, nickel plating • Fan model: Noctua NF-A9x14 HS-PWM | Bearing: SSO2 • Fan speed: 600–2500 RPM (PWM) | With LNA: up to 1800 RPM • Max airflow: 57.5 m³/h | With LNA: 40.8 m³/h • Max noise: 23.6 dB(A) | With LNA: 14.8 dB(A) • Input power (max.): 2.52 W | Voltage: 12 V • MTTF: >150,000 hours | NSPR: 61 • Warranty: 6 years manufacturer's warranty • In-box contents: NF-A9x14 PWM fan, NA-RC7 LNA, NT-H1 thermal compound, SecuFirm2™ AM5 mounting kit, screws for 92×92×25mm fans, Noctua metal case badge
