NOCTUA NH-U14S DX-4189 140mm Single Tower CPU Air Cooler ( Brown )

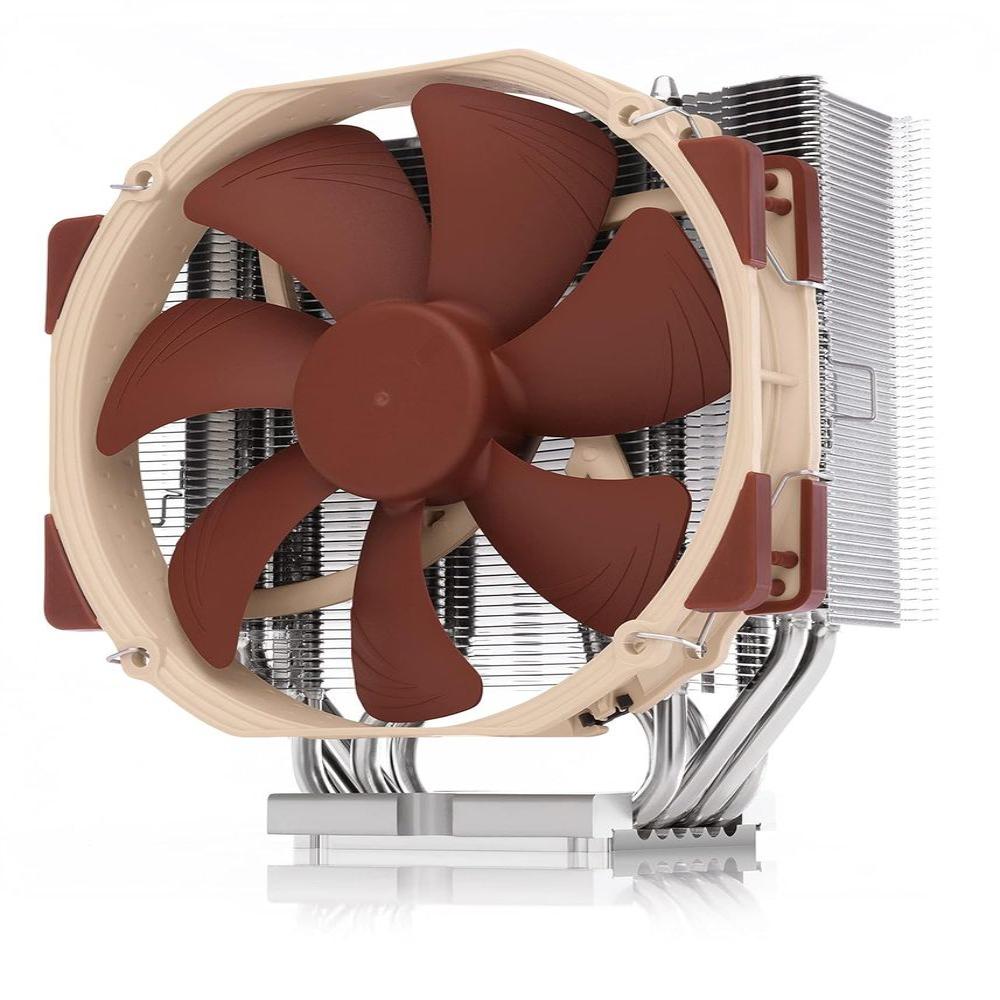

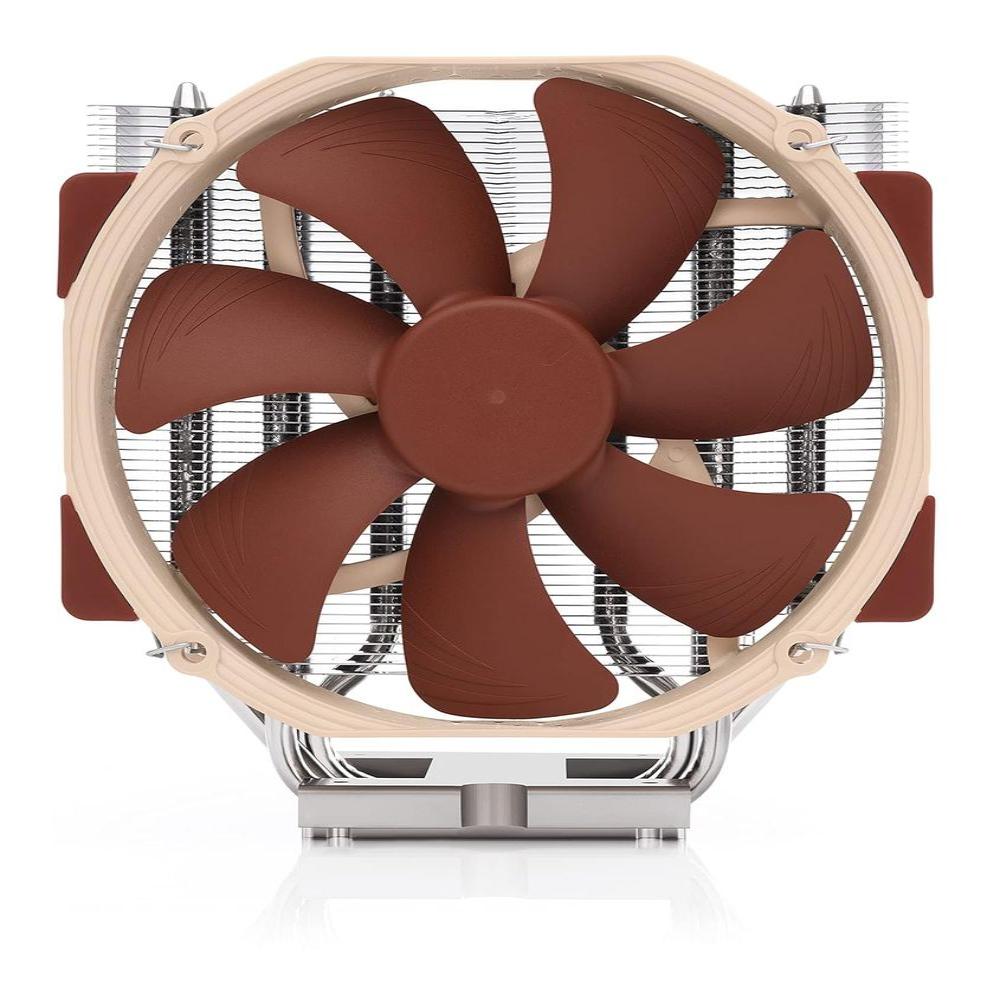

The Noctua NH-U14S DX-4189 is a purpose-built, single-tower CPU air cooler engineered exclusively for Intel's LGA4189 platform — the Whitley socket used by 3rd Gen Intel Xeon Scalable processors (Ice Lake-SP: Platinum, Gold, Silver, and Bronze tiers) as well as W-3300 series Xeon workstation CPUs (Ice Lake-64L). It is part of Noctua's DX line, a range dedicated to quiet, premium-grade thermal solutions for Intel Xeon platforms. At the heart of the design is an enlarged copper contact surface measuring 70 x 56 mm — more than double the area of a standard NH-U14S base — specifically shaped to match the large integrated heat-spreaders found on LGA4189-based processors. Six copper heatpipes draw heat through the base and distribute it across a fin array exceeding 6,000 cm² of surface area, enabling efficient passive dissipation before the fan even starts working hard. The cooler ships with Noctua's NF-A15 HS-PWM fan, a 140 mm unit running on an SSO2 bearing. At full speed the fan reaches 1,500 RPM, delivering up to 140.2 m³/h of airflow while remaining at or below 24.6 dB(A) — quiet enough for audio/video production suites and noise-sensitive professional environments. PWM control lets the motherboard ramp speed down to a minimum of 600 RPM at 20% PWM duty cycle; an optional Low-Noise Adapter (L.N.A.) caps the fan at 300 RPM for even quieter operation. The heatsink body accepts optional second-fan mounting via included clips and anti-vibration pads, allowing an NF-A15 push/pull configuration. The SecuFirm2 mounting system integrates standard Intel LGA4189 hardware including the anti-tilt mechanism, Torx T30 PEEK nuts, and an LGA4189-4 (P4) CPU carrier frame. It also supports P5-type sockets (LGA4189-5) for Cooper Lake-based processors. An NM-SMT5 Torx T30 tool is included. Noctua's NT-H1 thermal compound comes pre-applied to the heatsink base to ensure optimal bond-line thickness during installation. Verified Specifications: — Socket: Intel Xeon LGA4189 (Whitley; P4 and P5 variants) — Heatsink dimensions (H × W × D, without fan): 165 mm × 150 mm × 52 mm — Overall dimensions (H × W × D, with fan): 165 mm × 150 mm × 78 mm — Weight without fan: 797 g | With fan: 957 g — Materials: copper base and heatpipes, aluminium fins, soldered joints, nickel plating — Number of heatpipes: 6 — Included fan: Noctua NF-A15 HS-PWM (SSO2 bearing) — Fan max speed: 1,500 RPM (±10%) | With L.N.A.: 300 RPM | Min @ 20% PWM: 600 RPM — Max airflow: 140.2 m³/h | Max noise: 24.6 dB(A) — Fan input power: 1.56 W | Voltage: 12 V — MTTF (fan): >150,000 hours — NSPR rating: 162 — Warranty: 6 years (manufacturer) — Scope of delivery: NF-A15 HS-PWM fan, anti-vibration pads and fan-clips for optional second NF-A15, NT-H1 thermal compound (pre-applied), SecuFirm2 mounting kit for LGA4189, LGA4189-4 (P4) CPU carrier frame, NM-SMT5 Torx T30 mounting tool, Noctua metal case-badge
