Features Of NZXT C1200 1200W 80 + Gold Fully Modular

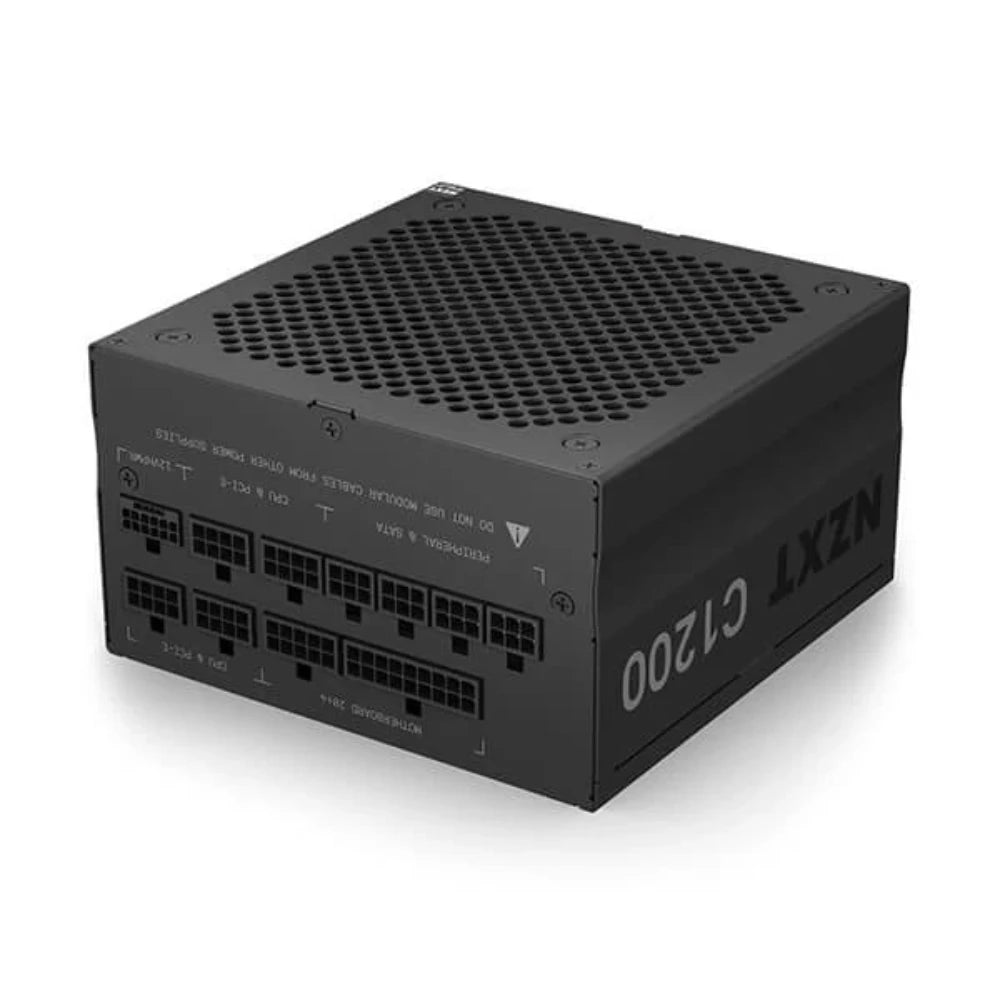

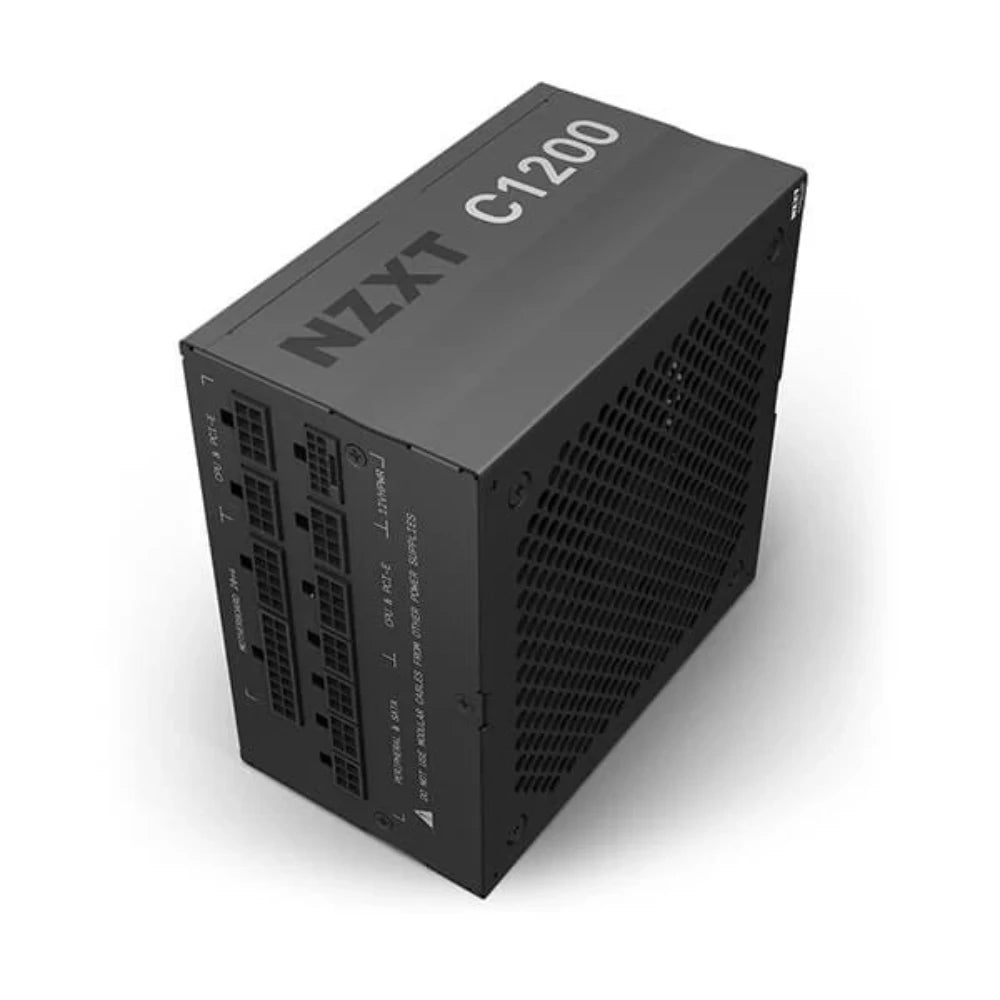

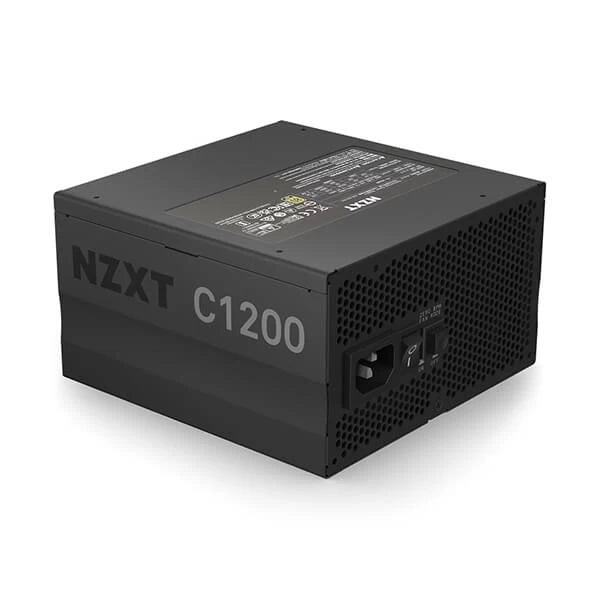

NZXT C1200 1200W Gold Fully-Modular ATX 3.0 PSU
Utilizing the ATX v3.0 power standard, the NZXT C1200 Gold pumps up to 600 watts of power to NVIDIA 40-series graphics cards over a single cable while maintaining highly efficient, low-noise performance.
Next-Gen Power
Provides up to 600W of power to PCIe 5.0 GPUs, such as the NVIDIA GeForce RTX 4090 – over a single 16-pin connector.
Single Cable Connection
NZXT Power Supply Featuring a single 16-pin connection cable—perfect for 40 Series cards. Installation is easier, safer, and less likely to damage parts without requiring any bulky adapters.
Elite Efficiency
With over 90% efficiency at 50% load, the C1200 reduces energy usage to lower monthly costs and extend your PC’s lifespan. No wasted energy – it only draws the power your system needs.
Silent Operation

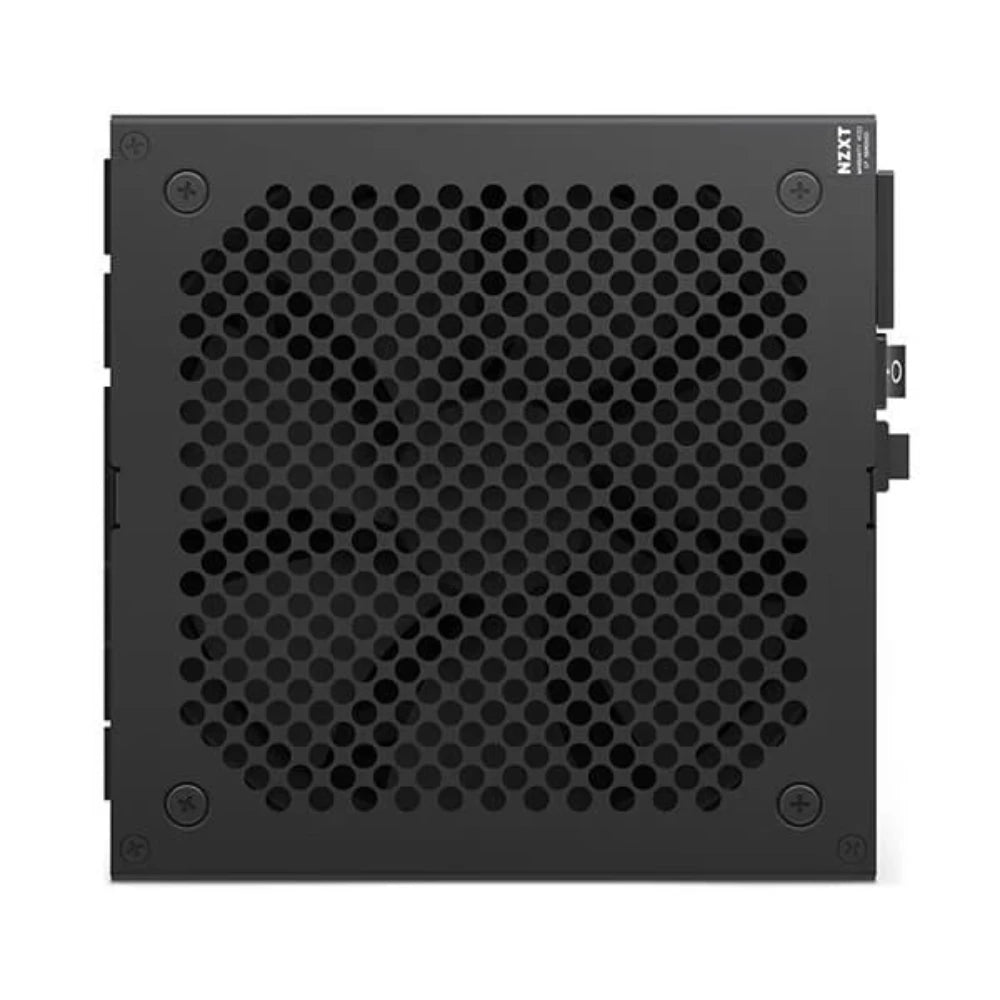

The NZXT C1200 1200W Power Supply 135mm PWM fan with a fluid dynamic bearing runs quietly, even at high loads. Zero Fan Mode shuts it off for total silence when under 40% load.
High-Quality Components
Constructed with all Japanese 105C-rated capacitors for the highest standard in performance, reliability, and longevity.
Get the best 80 Plus Gold computer smps price from us today!

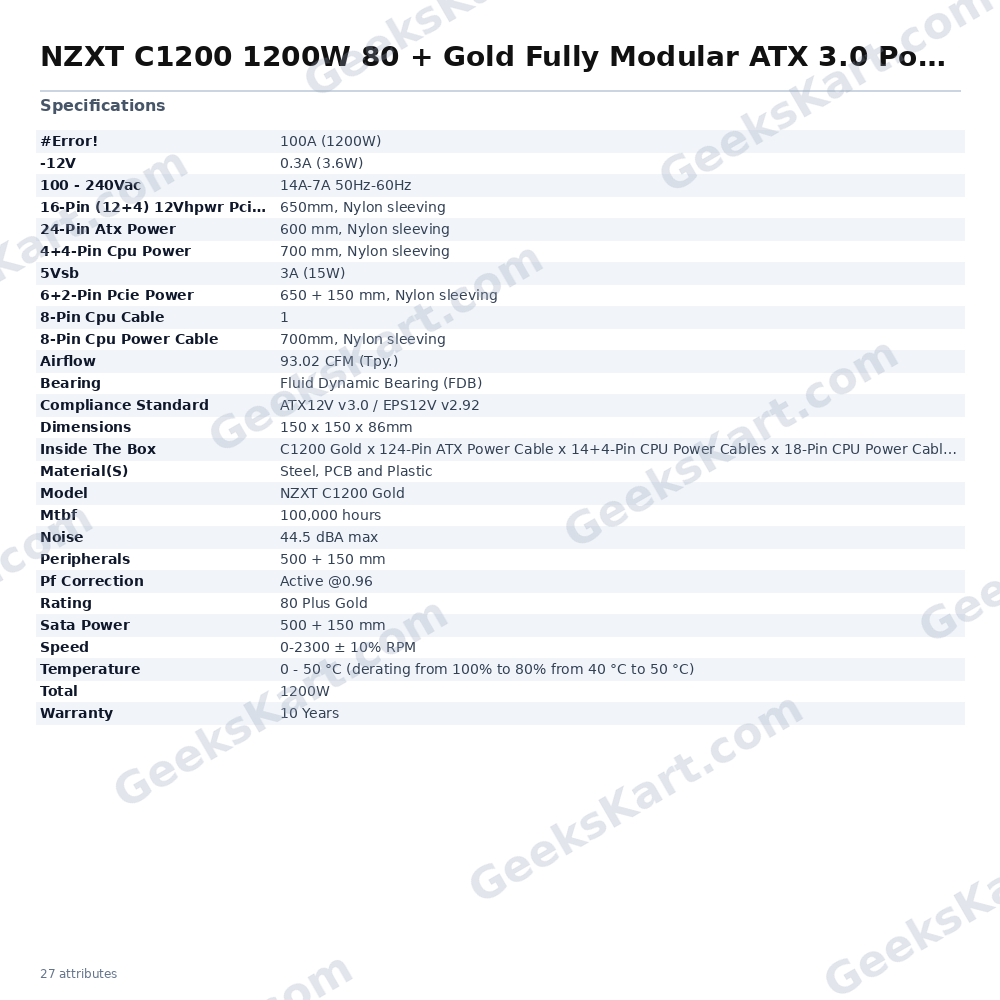

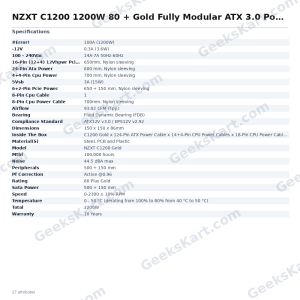

Specifications Of NZXT C1200 1200W 80 + Gold Fully Modular
| Model | NZXT C1200 Gold |
| Model Number | PA-2G1BB |

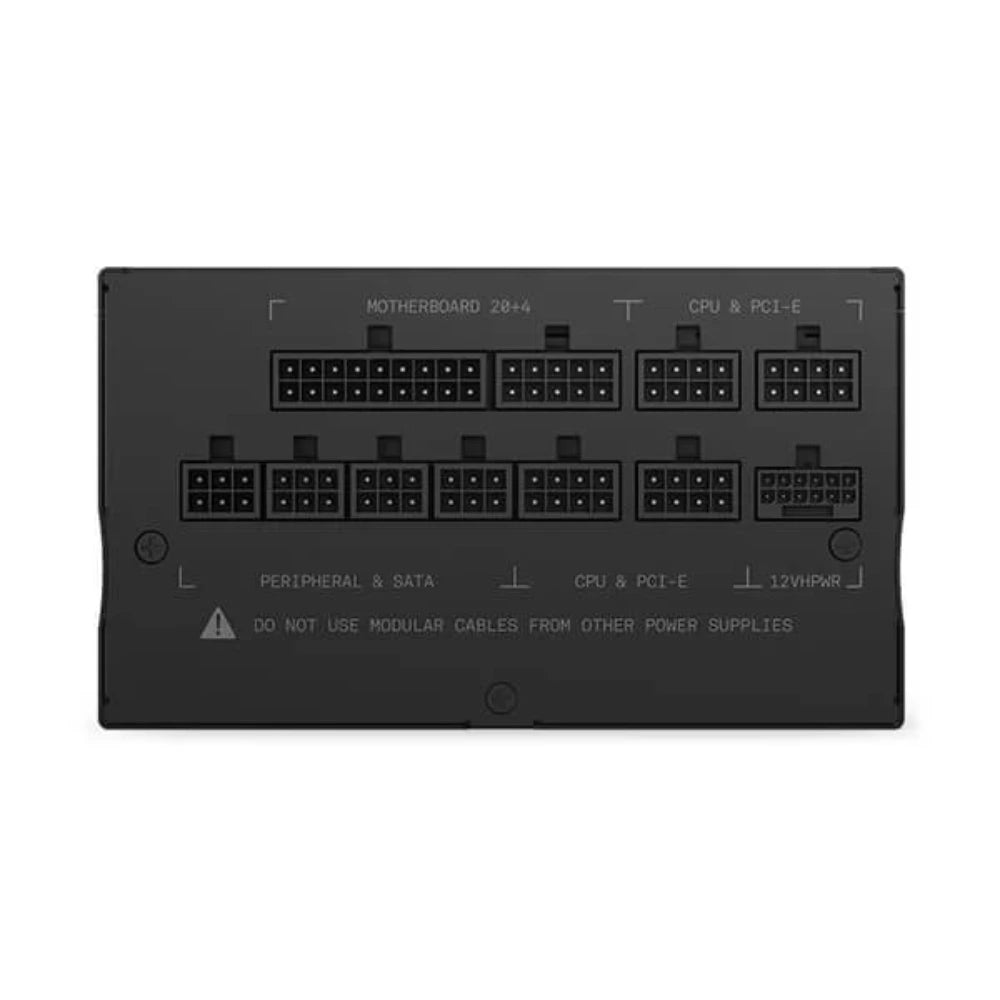

| Output Connectors | |
| 24-pin ATX power | 1 |
| 4+4-pin CPU power | 1 |
| 8-pin CPU Cable | 1 |
| 6+2-pin PCIe power | 2 |
| 16-pin (12+4) 12VHPWR PCIe Cable | 1 |
| SATA power | 8 |
| Peripherals | 4 |
| Cable Specs | |
| 24-pin ATX power | 600 mm, Nylon sleeving |
| 4+4-pin CPU power | 700 mm, Nylon sleeving |
| 8-Pin CPU Power Cable | 700mm, Nylon sleeving |
| 6+2-pin PCIe power | 650 + 150 mm, Nylon sleeving |
| 16-Pin (12+4) 12VHPWR PCIe Cable | 650mm, Nylon sleeving |
| SATA power | 500 + 150 mm |
| Peripherals | 500 + 150 mm |
| AC Input Rating | |
| 100 – 240Vac | 14A-7A 50Hz-60Hz |
| DC Output Rating | |
| #ERROR! | 22A (120W) |
| #ERROR! | 100A (1200W) |
| -12V | 0.3A (3.6W) |
| 5Vsb | 3A (15W) |
| Total | 1200W |
| Fan Specs | |
| Dimensions | 135 x 135 x 25 mm |
| Speed | 0-2300 ± 10% RPM |
| Airflow | 93.02 CFM (Tpy.) |
| Noise | 44.5 dBA max |
| Bearing | Fluid Dynamic Bearing (FDB) |
| General | |
| Dimensions | 150 x 150 x 86mm |
| Material(s) | Steel, PCB and Plastic |
| Compliance Standard | ATX12V v3.0 / EPS12V v2.92 |
| Operation | |
| PF Correction | Active @0.96 |
| MTBF | 100,000 hours |
| Temperature | 0 – 50 °C (derating from 100% to 80% from 40 °C to 50 °C) |
| Energy Efficiency | |
| Rating | 80 Plus Gold |
| Inside the Box | C1200 Gold x 1 24-Pin ATX Power Cable x 1 4+4-Pin CPU Power Cables x 1 8-Pin CPU Power Cable x 1 6+2-pin PCIe Power Cable x 2 16-Pin (12+4) 12VHPWR PCIe Cable x 1 SATA Cables x 3 Peripherals Cables x 1 6-32 Screws x 4 AC Power Cord x 1 |
| Warranty | 10 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
