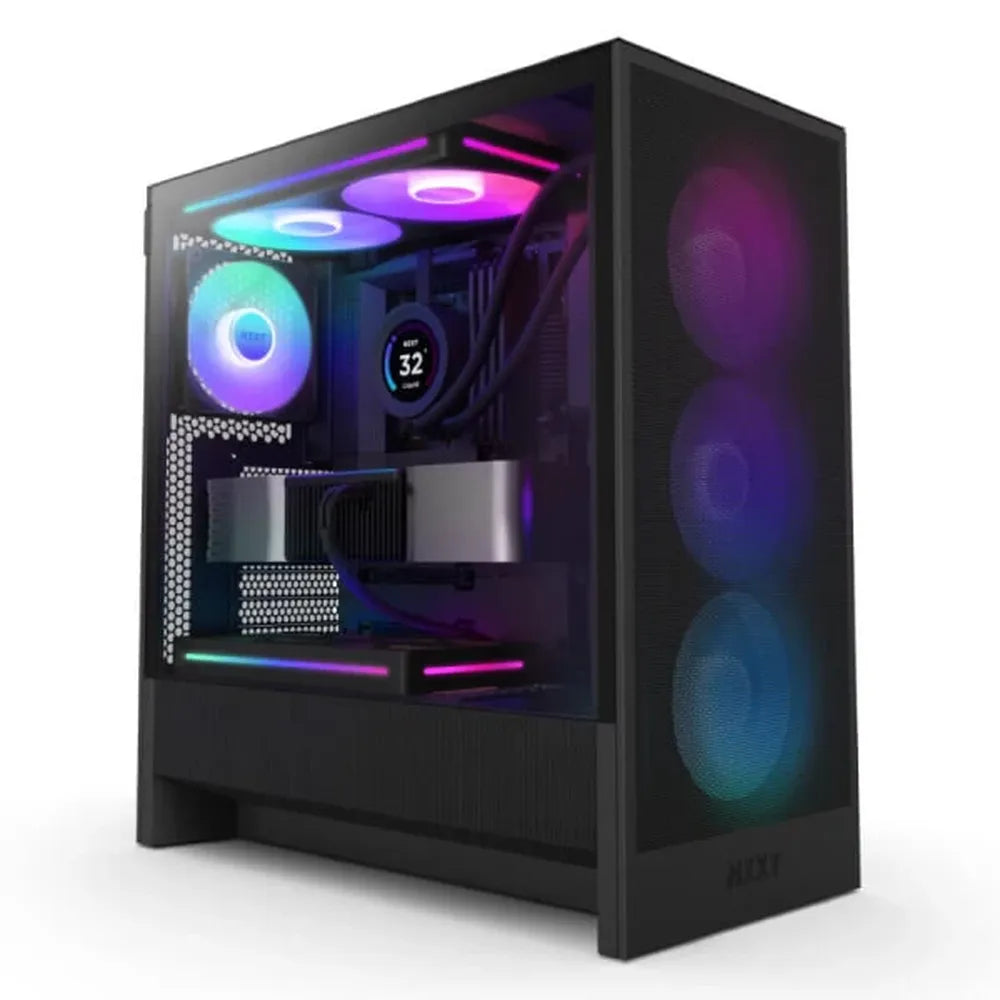

NZXT H5 Flow RGB 2024 Edition EATX Mid Tower Cabinet (Black)

The NZXT H5 Flow RGB 2024 Edition (P/N: CC-H52FB-R1) is a mid-tower chassis built for builders who demand strong airflow, flexible liquid-cooling options, and clean aesthetics without sacrificing interior space. Constructed from SGCC steel and dark-tinted tempered glass, the case measures 465 mm tall, 225 mm wide, and 430 mm deep, and weighs 7.63 kg — compact proportions that still accommodate E-ATX motherboards up to 277 mm wide, standard ATX, Micro-ATX, and Mini-ITX boards. At the heart of the H5 Flow RGB's thermal design is an ultra-fine mesh treatment across the front, top, and side panels. This open-mesh approach, combined with a perforated PSU shroud on the side and bottom, channels fresh air directly toward the GPU — a meaningful advantage for high-TDP graphics cards that need a steady supply of cool air. The shroud's bottom cutouts support two additional 120 mm fans (not included), further boosting intake volume without altering the case's slim exterior footprint. Out of the box, the H5 Flow RGB ships with an F360 RGB Core (Case Version) single-frame fan at the front — rated at 1,700 ± 200 RPM, 50.1 CFM airflow, 1.27 mm-H₂O static pressure, and 23.3 dBA noise level — and an F120Q (Case Version) fan at the rear, rated at 1,350 ± 150 RPM, 60.2 CFM, 1.05 mm-H₂O, and 24.1 dBA. Both fans use 3-pin DC connectors. Additional fan positions support up to 3 × 120 mm or 2 × 140 mm at the front, 2 × 120 mm or 2 × 140 mm on top, and 2 × 120 mm at the bottom. For liquid-cooling enthusiasts, the front accepts radiators up to 360 mm, and the top accommodates a 240 mm radiator (or 280 mm with low-profile memory). The combined radiator-and-fan thickness at the top position is rated up to 55 mm. CPU coolers up to 170 mm tall and GPUs up to 410 mm long fit without modification, and the PSU bay supports units up to 200 mm in length. Cable management is addressed through wide routing channels, integrated hooks, and hook-and-loop straps, with up to 28.7 mm of space behind the motherboard tray. Front I/O includes one USB 3.2 Gen 1 Type-A port, one USB 3.2 Type-C port, and a headset audio jack. Seven standard expansion slots are available; vertical GPU mounting is not supported on this configuration. Storage bays cover two 2.5-inch and one 3.5-inch drive. Tool-less panel removal simplifies maintenance access. NZXT backs the H5 Flow RGB 2024 Edition with a 2-year warranty. Verifiable Specifications: - Part Number: CC-H52FB-R1 - Motherboard Support: E-ATX (up to 277 mm wide), ATX, Micro-ATX, Mini-ITX - Dimensions (H × W × D): 465 × 225 × 430 mm / 18.31 × 8.86 × 16.93 in - Weight: 7.63 kg / 16.82 lb - Materials: SGCC Steel, Dark Tinted Tempered Glass - GPU Clearance: up to 410 mm | CPU Cooler: up to 170 mm | PSU: up to 200 mm - Front Radiator: up to 360 mm | Top Radiator: up to 240 mm (280 mm with low-profile memory) - Included Fans: F360 RGB Core CV (front) + F120Q CV (rear), both 3-pin DC - Front I/O: 1 × USB 3.2 Type-A, 1 × USB 3.2 Type-C, 1 × headset audio jack - Drive Bays: 2 × 2.5-inch, 1 × 3.5-inch | Expansion Slots: 7 standard - Warranty: 2 years
