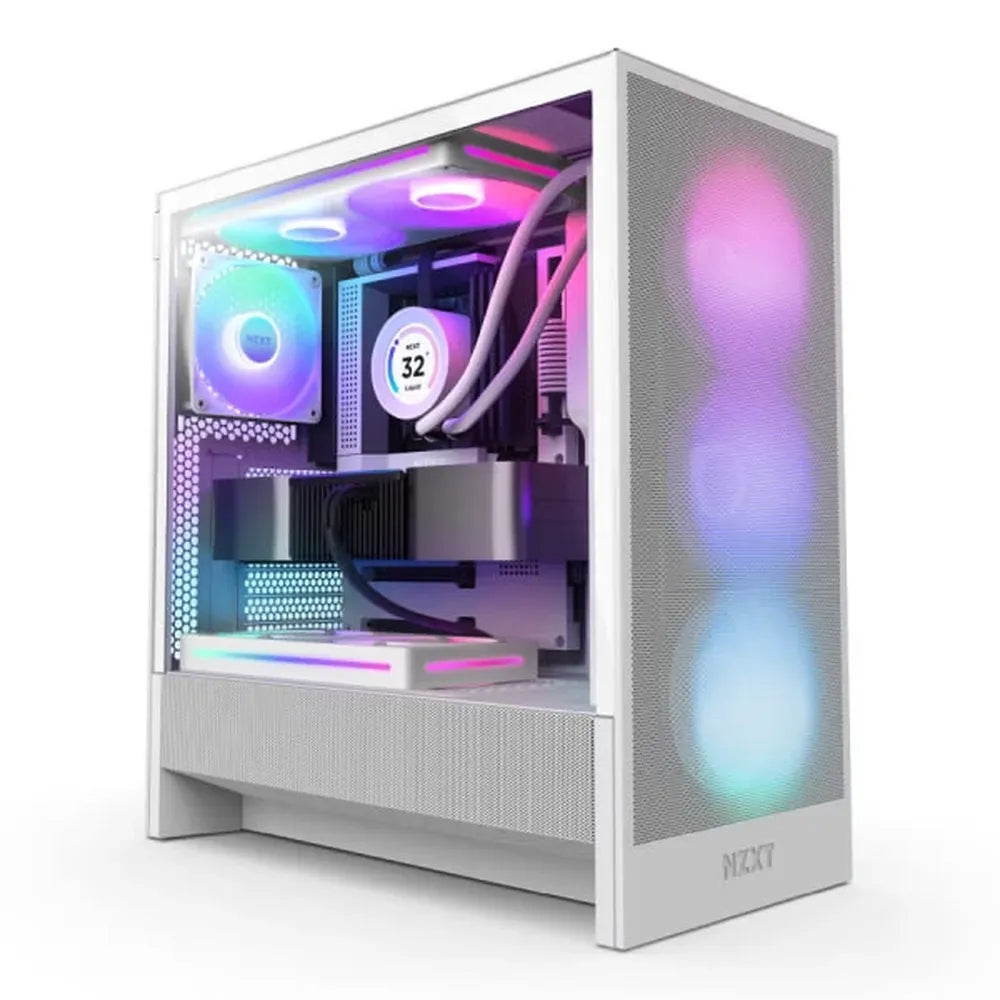

NZXT H5 Flow RGB 2024 Edition EATX Mid Tower Cabinet (White)

The NZXT H5 Flow RGB 2024 Edition (P/N: CC-H52FW-R1) is a white mid-tower chassis engineered around airflow and thermal efficiency. Its SGCC steel frame is paired with dark tinted tempered glass on the side panel, delivering a clean, modern aesthetic without sacrificing structural integrity. The case measures 465 mm tall, 225 mm wide, and 430 mm deep, weighing 7.63 kg — a compact footprint that still accommodates E-ATX motherboards up to 277 mm wide, as well as standard ATX, Micro-ATX, and Mini-ITX boards. Airflow is a central design focus. Ultra-fine mesh covers the front, top, and side panels, encouraging unrestricted intake while filtering particulates. The PSU shroud features perforated side and bottom panels, allowing two 120mm bottom-mounted intake fans (not included) to direct cool air directly toward the GPU. This approach reduces heat soak on graphics cards, which can measure up to 410 mm in length. Out of the box, the case ships with an F360 RGB Core (Case Version, 3-pin DC) front-mounted fan array running at 1,700 ± 200 RPM, delivering 50.1 CFM of airflow at 23.3 dBA, and a rear-mounted F120Q (Case Version, 3-pin DC) fan operating at 1,350 ± 150 RPM with 60.2 CFM airflow at 24.1 dBA. Both fans use the Case Version (CV) 3-pin DC connector. Liquid cooling builders will appreciate support for a 360mm radiator at the front and a 240mm radiator on top (expandable to 280mm with low-profile memory modules). The top combined radiator and fan thickness clearance is 55 mm. CPU cooler height clearance is up to 170 mm, and PSU length is limited to 200 mm. Front I/O includes one USB 3.2 Gen 1 Type-A port, one USB 3.2 Type-C port, and a 3.5mm headset audio jack. Storage options include two 2.5-inch bays and one 3.5-inch bay. The case offers seven standard expansion slots with no vertical GPU slot. Cable management channels provide up to 28.7 mm of routing space, complemented by hooks and straps for a tidy build. All front, side, and top panels open without tools, simplifying component installation and maintenance. The case carries a 2-year manufacturer warranty. Verifiable Specifications: - Model: H5 Flow RGB | P/N: CC-H52FW-R1 | Color: White - Motherboard: E-ATX (≤277 mm wide), ATX, Micro-ATX, Mini-ITX - Dimensions: 465 × 225 × 430 mm | Weight: 7.63 kg - GPU clearance: up to 410 mm | CPU cooler: up to 170 mm | PSU: up to 200 mm - Front radiator: up to 360 mm | Top radiator: up to 240 mm (280 mm with low-profile RAM) - Pre-installed fans: F360 RGB Core CV (front, 1,700 RPM, 50.1 CFM, 23.3 dBA) + F120Q CV (rear, 1,350 RPM, 60.2 CFM, 24.1 dBA) - Fan support: Front 3×120/2×140 mm, Top 2×120/2×140 mm, Bottom 2×120 mm, Rear 1×120 mm - Front I/O: 1× USB 3.2 Type-A, 1× USB 3.2 Type-C, 1× headset jack - Drive bays: 2× 2.5", 1× 3.5" | Expansion slots: 7 standard - Material: SGCC Steel + Dark Tinted Tempered Glass | Warranty: 2 years
