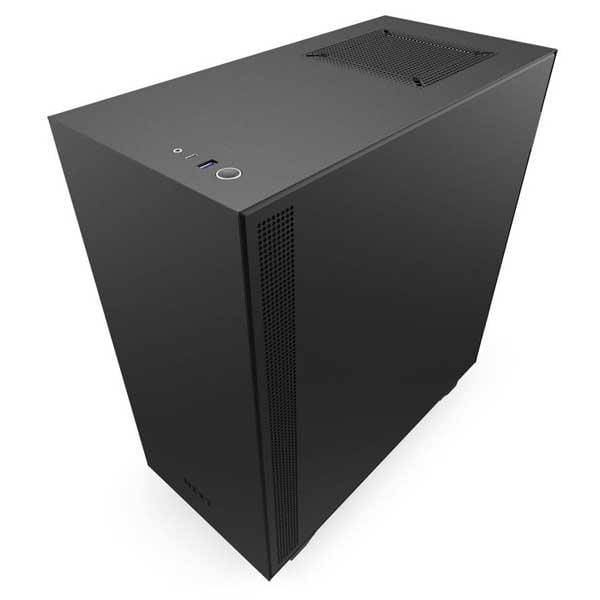

Features of NZXT H510 ATX Mid Tower Cabinet With Tempered Glass Side Panel (Black Red)
We’ve made our iconic NZXT H510 PC cases even better. Our new lineup still features the elements builders loved in the original NZXT H510 ATX Cabinet including our patented cable management system, removable fan/radiator mounting brackets, and easy-to-use drive trays, alongside new updates like a front-panel USB-C connector supporting high-speed USB 3.1 Gen 2 devices, a tempered glass side panel that installs with a single thumbscrew, and an upgraded Smart Device V2 on the H510i.
- With a USB 3.1 Gen2-compatible USB-C connector on the front panel, it’s easier than ever to connect smartphones, high-speed external storage, or the latest peripherals to your PC
- The clean, modern design, iconic cable management bar, and uninterrupted tempered-glass side panel showcase your stunning build.
- Cable management can often take more time than assembly. We designed a cable routing kit with pre-installed channels and straps, for intuitive and easy wiring.
- Two Aer F120mm fans* are included in nzxt case for optimal internal airflow and the front panel and PSU intakes include removable filters. Includes a removable bracket designed for radiators up to 280mm simplifies the installation of either closed-loop or custom-loop water cooling.

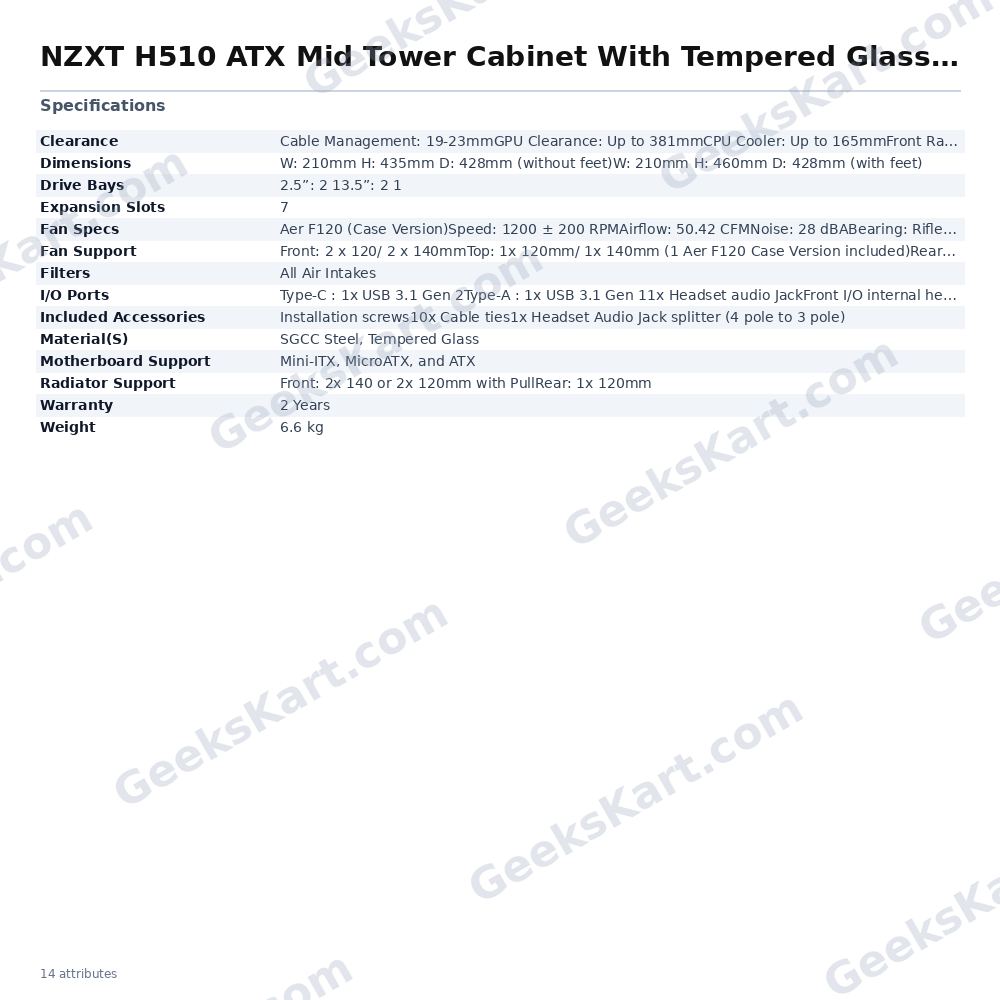

Specifications of NZXT H510 ATX Mid Tower Cabinet With Tempered Glass Side Panel (Black Red)
| Dimensions | W: 210mm H: 435mm D: 428mm (without feet) W: 210mm H: 460mm D: 428mm (with feet) |
| Material(s) | SGCC Steel, Tempered Glass |
| Weight | 6.6 kg |
| Motherboard Support | Mini-ITX, MicroATX, and ATX |
| I/O Ports | Type-C: 1x USB 3.1 Gen 2 Type-A: 1x USB 3.1 Gen 1 1x Headset audio Jack Front I/O internal header Gen 2 USB 3.1 Internal Header: 1 Gen 1 USB 3.1 Internal Header: 1 1x HD Audio Header |
| Filters | All Air Intakes |
| Included Accessories | Installation screws 10x Cable ties 1x Headset Audio Jack splitter (4 pole to 3 pole) |
| Drive Bays | 2.5”: 2 1 3.5”: 2 1 |
| Expansion Slots | 7 |
| Radiator Support | Front: 2x 140 or 2x 120mm with Pull Rear: 1x 120mm |
| Fan Support | Front: 2 x 120/ 2 x 140mm Top: 1x 120mm/ 1x 140mm (1 Aer F120 Case Version included) Rear: 1x 120mm (1 Aer F120 Case Version included) |
| Fan Specs | Aer F120 (Case Version) Speed: 1200 ± 200 RPM Airflow: 50.42 CFM Noise: 28 dBA Bearing: Rifle Bearing |
| Clearance | Cable Management: 19-23mm GPU Clearance: Up to 381mm CPU Cooler: Up to 165mm Front Radiator: 60mm Rear Radiator: 60mm Reservoir & Pump: Up to 180mm (Along cable bar), Up to 86mm (Along bottom panel) |
| Warranty | 2 Years |
| Note | ***Features, Price and specifications are subject to change without notice. |
