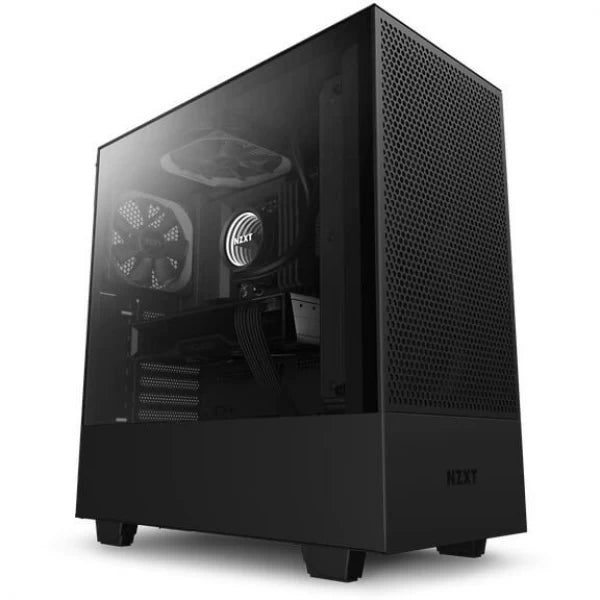

NZXT H510 Flow Edition Compact ATX Mid Tower Cabinet (Black)
MPN NZXT-H510-FLOW-BLACK · Brand NZXT
Features of NZXT H510 Flow Edition Compact ATX Mid Tower Cabinet (Black) This compact mid-tower is an ideal case for high-performance builds and features a perforated front panel for maximized airflow. The NZXT H510 Flow ATX Cabinet is easy to build in and offers flexibility for a variety of ATX parts. An optimized perforated top panel of nzxt case delivers increased airflow to your system for improved temperatures Iconic cable management bar and uninterrupted tempered-glass side panel Cable rou
Inclusive of GST · GST invoice available
Overview
Features of NZXT H510 Flow Edition Compact ATX Mid Tower Cabinet (Black)
This compact mid-tower is an ideal case for high-performance builds and features a perforated front panel for maximized airflow. The NZXT H510 Flow ATX Cabinet is easy to build in and offers flexibility for a variety of ATX parts.
- An optimized perforated top panel of nzxt case delivers increased airflow to your system for improved temperatures
- Iconic cable management bar and uninterrupted tempered-glass side panel
- Cable routing kit with pre-installed channels and straps
- Two Aer F120mm fans and removable filters on all air intakes
- Removable bracket designed for radiators up to 280mm

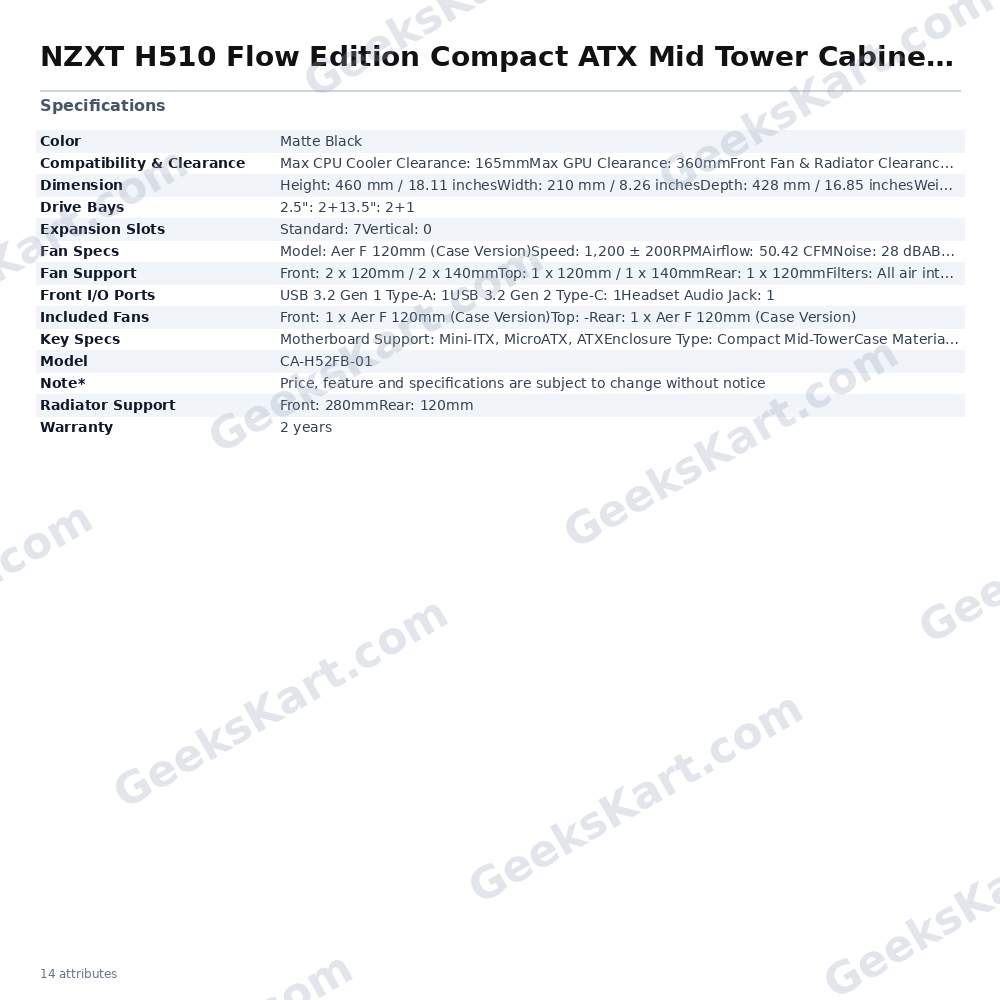

Specifications of NZXT H510 Flow Edition Compact ATX Mid Tower Cabinet (Black)
| Model number | CA-H52FB-01 |
| Color | Matte Black |
| Key Specs | Motherboard Support: Mini-ITX, MicroATX, ATX Enclosure Type: Compact Mid-Tower Case Material: SGCC Steel, Tempered Glass |
| Dimension | Height: 460 mm / 18.11 inches Width: 210 mm / 8.26 inches Depth: 428 mm / 16.85 inches Weight: 6.6 kg / 14.5 lb |
| Front I/O Ports | USB 3.2 Gen 1 Type-A: 1 USB 3.2 Gen 2 Type-C: 1 Headset Audio Jack: 1 |
| Drive Bays | 2.5": 2+1 3.5": 2+1 |
| Radiator Support | Front: 280mm Rear: 120mm |
| Included Fans | Front: 1 x Aer F 120mm (Case Version) Top: - Rear: 1 x Aer F 120mm (Case Version) |
| Fan Specs | Model: Aer F 120mm (Case Version) Speed: 1,200 ± 200RPM Airflow: 50.42 CFM Noise: 28 dBA Bearing: Rifle Bearing Fan Connector: 3-pin |
| Fan Support | Front: 2 x 120mm / 2 x 140mm Top: 1 x 120mm / 1 x 140mm Rear: 1 x 120mm Filters: All air intakes |
| Expansion Slots | Standard: 7 Vertical: 0 |
| Compatibility & Clearance | Max CPU Cooler Clearance: 165mm Max GPU Clearance: 360mm Front Fan & Radiator Clearance: 60mm Cable Management: 19 - 23mm |
| Warranty | 2 years |
| Note* | Price, feature and specifications are subject to change without notice |
Datasheet
| Warranty | 2 Years |
|---|---|
| color | Matte Black |
| Note* | Price, feature and specifications are subject to change without notice |
| Dimension | Height: 460 mm / 18.11 inchesWidth: 210 mm / 8.26 inchesDepth: 428 mm / 16.85 inchesWeight: 6.6 kg / 14.5 lb |
| Fan Specs | Model: Aer F 120mm (Case Version)Speed: 1,200 ± 200RPMAirflow: 50.42 CFMNoise: 28 dBABearing: Rifle BearingFan Connector: 3-pin |
| Key Specs | Motherboard Support: Mini-ITX, MicroATX, ATXEnclosure Type: Compact Mid-TowerCase Material: SGCC Steel, Tempered Glass |
| Drive Bays | 2.5": 2+13.5": 2+1 |
| Fan Support | Front: 2 x 120mm / 2 x 140mmTop: 1 x 120mm / 1 x 140mmRear: 1 x 120mmFilters: All air intakes |
| Model | CA-H52FB-01 |
| Included Fans | Front: 1 x Aer F 120mm (Case Version)Top: -Rear: 1 x Aer F 120mm (Case Version) |
| Expansion Slots | Standard: 7Vertical: 0 |
| Front I/O Ports | USB 3.2 Gen 1 Type-A: 1USB 3.2 Gen 2 Type-C: 1Headset Audio Jack: 1 |
| Radiator Support | Front: 280mmRear: 120mm |
| Compatibility & Clearance | Max CPU Cooler Clearance: 165mmMax GPU Clearance: 360mmFront Fan & Radiator Clearance: 60mmCable Management: 19 – 23mm |
