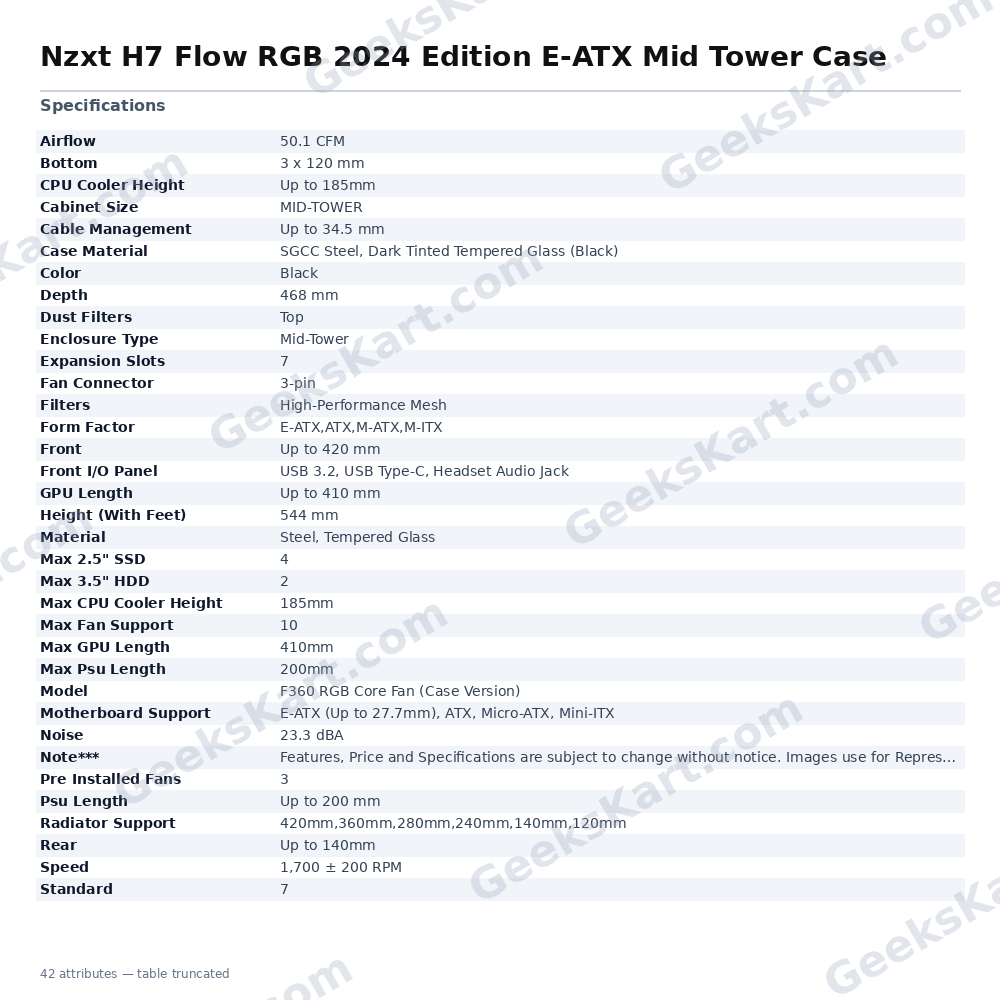

Nzxt H7 Flow RGB 2024 Edition E-ATX Mid Tower Case

The NZXT H7 Flow RGB 2024 Edition (SKU: CM-H72FB-R1) is a mid-tower PC chassis engineered around high-airflow cooling without sacrificing a compact footprint. Its defining feature is a vertical PSU layout that opens up the bottom of the case for three 120mm intake fans positioned directly beneath the GPU — a deliberate design choice that routes fresh air straight to your graphics card rather than relying solely on front-panel intake. The case ships with three pre-installed fans via the F360 RGB Core single-frame fan unit, giving you functional cooling performance and addressable RGB lighting straight out of the box. High-performance mesh panels on the front and top serve dual duty: they maximise airflow throughput for both intake and exhaust, and they integrate dust filtration to reduce particle build-up on components over time. Builder flexibility is a core strength here. The H7 Flow RGB supports E-ATX motherboards up to 277mm wide, along with ATX, Micro-ATX, and Mini-ITX form factors. GPU clearance extends to 410mm, accommodating even the longest flagship graphics cards currently available. CPU cooler height clearance reaches 185mm, which covers the vast majority of air coolers on the market. PSU length support goes up to 200mm. Radiator support is extensive: up to 420mm in the front and up to 360mm across the top, making the case suitable for dual or triple 120mm or 140mm AIO liquid coolers. Rear supports a single 120mm or 140mm radiator. Total fan capacity reaches 10 slots — three front, three top, three bottom, and one rear. Storage support includes up to two 3.5-inch HDDs and up to four 2.5-inch SSDs, while seven standard expansion slots accommodate multi-GPU or multi-card configurations. The front I/O panel provides two USB-A (USB 3.2) ports, one USB-C port, and a headset audio jack for convenient connectivity without reaching around to the back of the system. Cable management is handled via wide routing channels, built-in hooks, and included straps, with up to 34.5mm of cable management space behind the motherboard tray. Tool-less panel removal on the front, top, and tempered glass side panel simplifies building and future upgrades. Verifiable Specifications: - Model: CM-H72FB-R1 | Colour: Black - Motherboard Support: E-ATX (up to 277mm), ATX, Micro-ATX, Mini-ITX - Dimensions: 544mm (H) × 244mm (W) × 468mm (D) | Weight: 11.13 kg - Case Material: SGCC Steel, Dark Tinted Tempered Glass - Pre-installed Fans: 3 × F360 RGB Core (3-pin) | Max Fan Support: 10 - Included Fan Specs: 1,700 ±200 RPM | 50.1 CFM | 1.27 mm-H₂O static pressure | 23.3 dBA - Front Radiator: Up to 420mm | Top Radiator: Up to 360mm | Rear: Up to 140mm - GPU Clearance: Up to 410mm | CPU Cooler: Up to 185mm | PSU: Up to 200mm - Storage: 2 × 3.5-inch HDD + 4 × 2.5-inch SSD - Expansion Slots: 7 standard | Front I/O: 2× USB-A (USB 3.2), 1× USB-C, headset audio - Warranty: 2 Years
