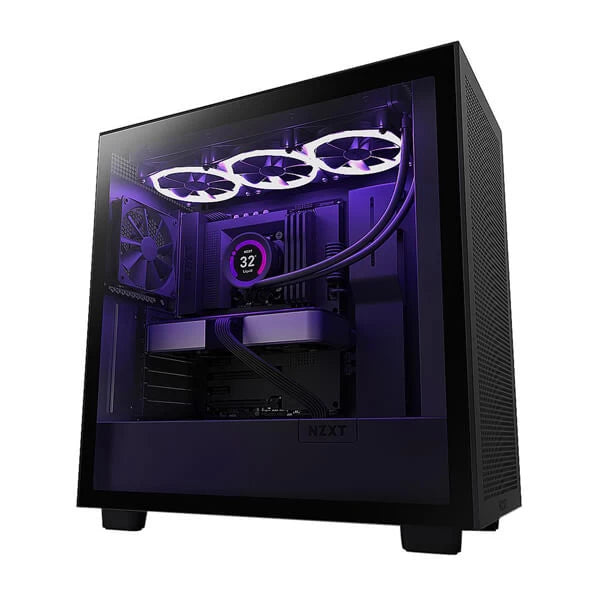

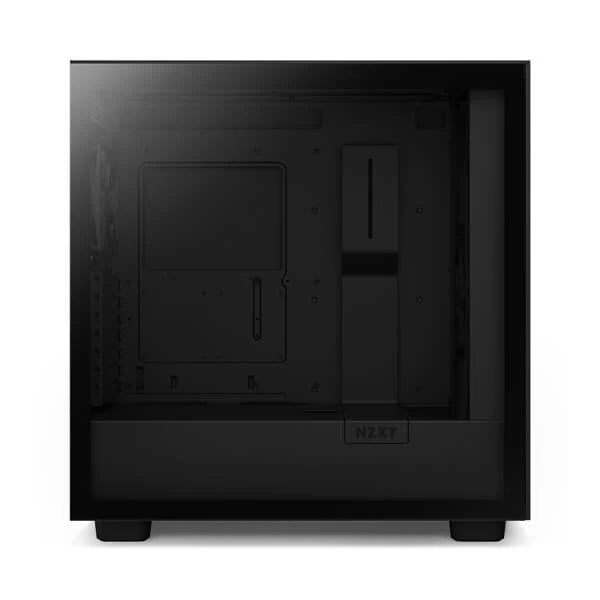

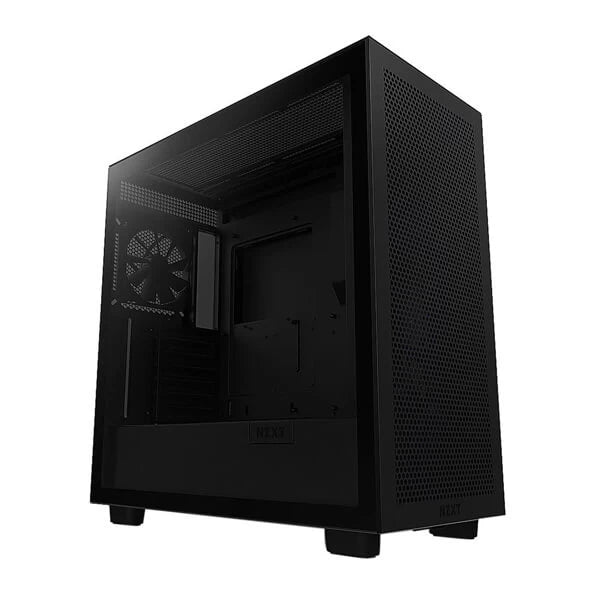

NZXT H7 Flow RGB ATX Mid Tower Cabinet (Black)

The NZXT H7 Flow RGB (Model: CM-H71FB-01, Black) is an ATX mid-tower PC case engineered around high-airflow cooling and an organised build experience. Its perforated front and top panels work in tandem with dust filters on all air intakes to push a steady stream of air across your components, while a tinted tempered-glass side panel lets you view the interior without sacrificing style. Out of the box the H7 Flow RGB ships with three pre-installed F140 RGB Core fans and one F120Q Quiet Airflow fan. The F140 RGB Core fans connect directly to a 5V ARGB header on your motherboard, giving you per-fan lighting control through your board’s own software without requiring a separate controller. The rear F120Q operates at 1200 ±240 RPM, delivers 62.18 CFM of airflow at a measured 25.1 dBA, and uses a standard 3-pin connector. Building inside the H7 Flow RGB is straightforward thanks to widened cable channels (18–22 mm of clearance behind the motherboard tray), integrated hooks, and included Velcro straps. Tool-less panel removal on both the front and tinted side panels makes swapping components easy. The case accommodates Mini-ITX, Micro-ATX, ATX, and E-ATX motherboards up to 272 mm wide, supports CPU coolers up to 185 mm tall, and clears graphics cards up to 400 mm long. Vertical GPU mounting is also supported via an optional bracket sold separately. Cooling flexibility is a key strength: the front supports up to a 360 mm radiator in push/pull configuration (60 mm clearance), the top supports up to a 360 mm radiator (30 mm clearance), and the rear accepts up to a 140 mm radiator. Fan mounting positions cover 3×120 mm or 3×140 mm at the front, 3×120 mm or 2×140 mm at the top, and 1×120 mm or 1×140 mm at the rear. Connectivity on the top I/O panel includes two USB 3.2 Gen 1 Type-A ports, one USB 3.2 Gen 2 Type-C port, and a combined headset audio jack. Seven standard expansion slots are provided. Storage capacity reaches four plus two 2.5-inch bays and two 3.5-inch bays. The chassis is constructed from SGCC steel and tempered glass, measures 505 mm (H, with feet) × 230 mm (W) × 480 mm (D), and weighs 10.05 kg. NZXT covers this case with a 2-year warranty. Verified Specifications: • Motherboard support: Mini-ITX, Micro-ATX, ATX, E-ATX (up to 272 mm) • Dimensions: 505 mm × 230 mm × 480 mm (H×W×D, feet included) • Weight: 10.05 kg • Pre-installed fans: 3× F140 RGB Core (5V ARGB), 1× F120Q (1200 ±240 RPM, 62.18 CFM, 25.1 dBA, 3-pin) • Front fan/radiator: 3×120 mm or 3×140 mm / up to 360 mm (push/pull, 60 mm clearance) • Top fan/radiator: 3×120 mm or 2×140 mm / up to 360 mm (30 mm clearance) • Rear fan/radiator: 1×120 mm or 1×140 mm / up to 140 mm • Max CPU cooler height: 185 mm | Max GPU length: 400 mm • Storage: 4+2× 2.5″, 2× 3.5″ • Expansion slots: 7 standard, 0 vertical (bracket sold separately) • I/O: 2× USB 3.2 Gen 1 Type-A, 1× USB 3.2 Gen 2 Type-C, 1× headset audio jack • Cable management: 18–22 mm • Material: SGCC Steel + Tempered Glass | Warranty: 2 Years • Model number: CM-H71FB-01 (Black)
