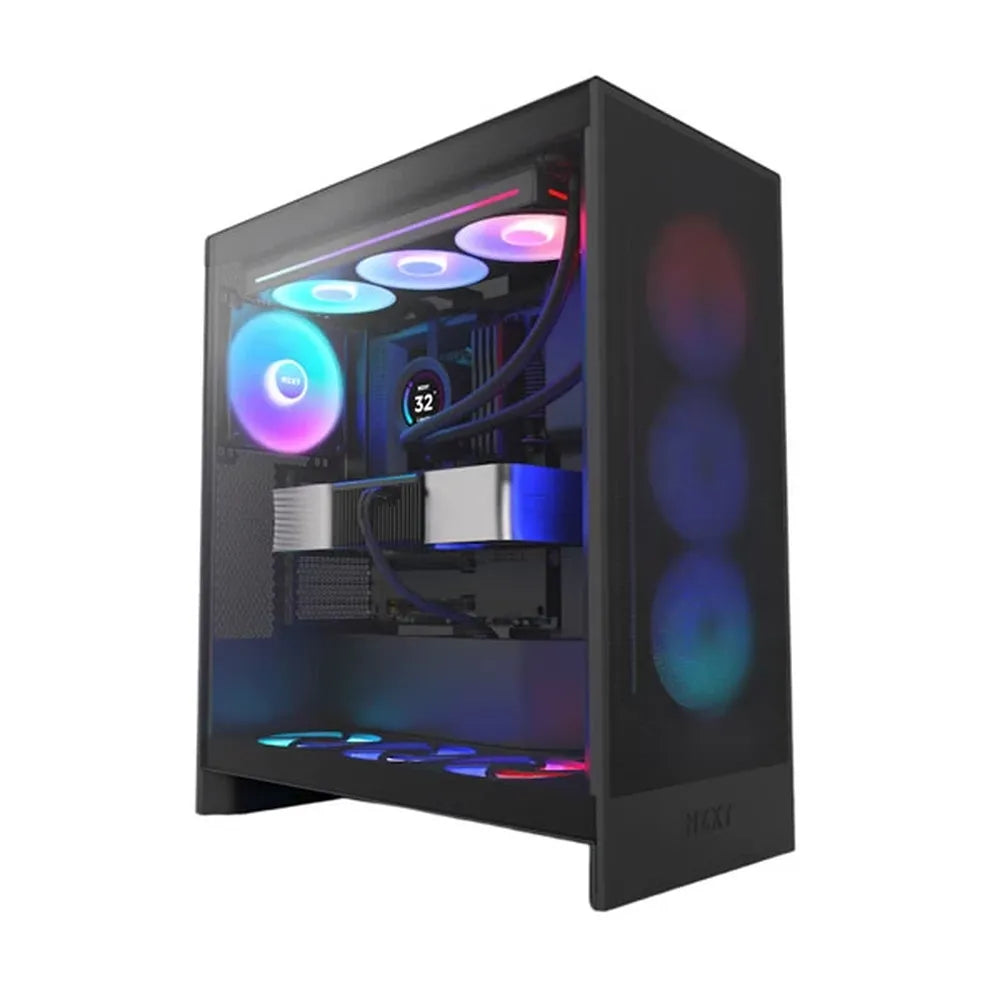

Feature of NZXT H7 Flow RGB EATX Mid Tower Cabinet 2024 Edition (Black)
NZXT H7 Flow RGB ATX Cabinet revolutionizes GPU cooling in a classic mid-tower form factor. Its vertical PSU layout allows space for 3 x 120mm bottom fans, offering efficient cooling without expanding the case footprint.
- Supports three bottom-mounted 120mm fans for direct GPU cooling while retaining a narrow mid-tower footprint.
- Comes equipped with a F360 RGB Core single-frame fan for exceptional out-of-the-box cooling and RGB lighting.
- High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.
- Supports up to 420mm radiators in the front and 360mm radiators in the top for powerful cooling potential.
- Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.
- Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear.
- Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.
- Tool-less access to the front, top, and side panels makes building and upgrading a breeze.
Dedicated GPU Cooling
nzxt cpu case supports three bottom-mounted 120mm fans for direct GPU cooling in a narrow mid-tower footprint.
Out-of-the-Box Performance
Comes equipped with a F360 RGB Core single-frame fan for out-of-the-box cooling and RGB lighting.
Optimized for Airflow
High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.
Large Radiator Support
Supports up to a 420mm radiator in front and 360mm radiator up top for max cooling potential.
Easily Manage Cables
Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.
10-Fan Capacity
Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear.
Top I/O Ports
Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.
Get the affordable cpu case with fan in the huge variety with us!

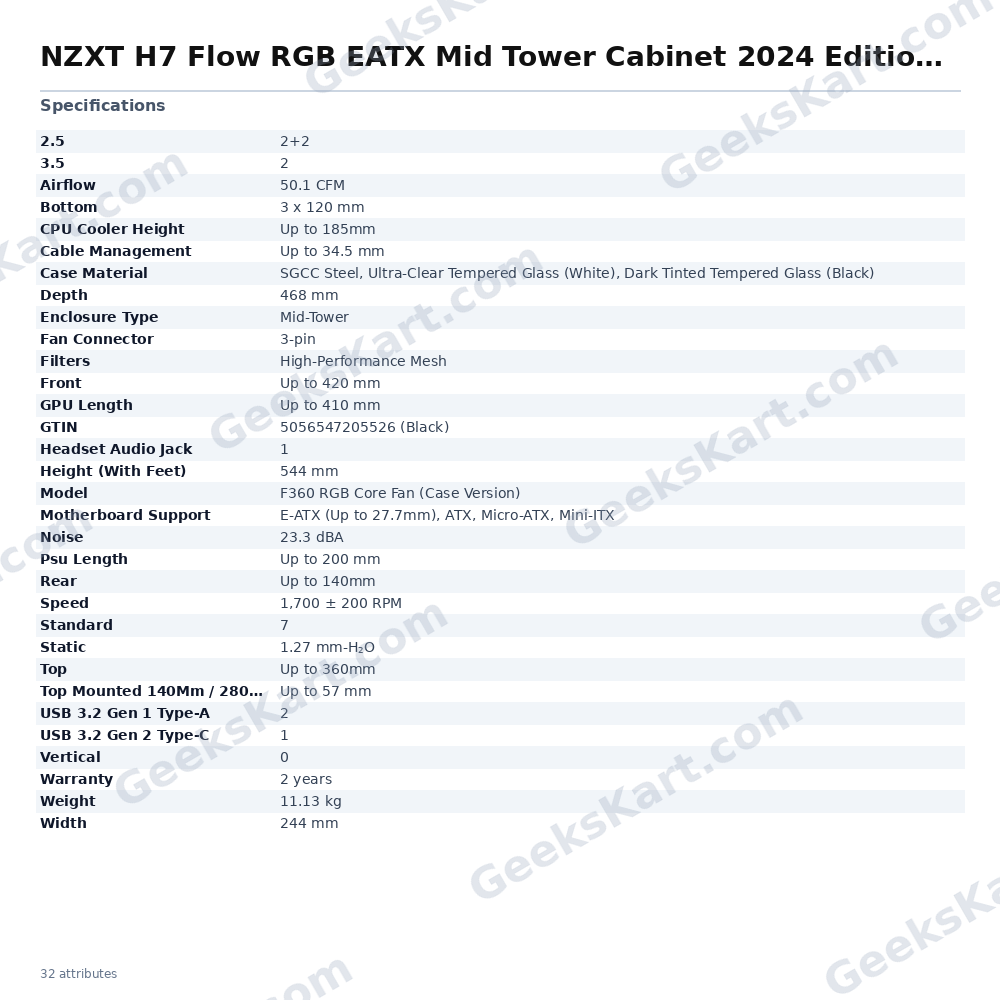

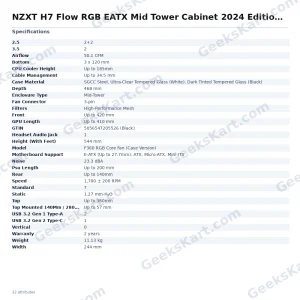

Specifications of NZXT H7 Flow RGB EATX Mid Tower Cabinet 2024 Edition (Black)
| Motherboard Support: | E-ATX (Up to 27.7mm), ATX, Micro-ATX, Mini-ITX |
| Enclosure Type: | Mid-Tower |
| Case Material: | SGCC Steel, Ultra-Clear Tempered Glass (White), Dark Tinted Tempered Glass (Black) |
| Height (With Feet): | 544 mm |
| Width: | 244 mm |
| Depth | 468 mm |
| Weight | 11.13 kg |
| CPU Cooler Height: | Up to 185mm |
| GPU Length: | Up to 410 mm |
| PSU Length: | Up to 200 mm |
| Cable Management: | Up to 34.5 mm |
| Top Mounted 140mm / 280mm Radiator & Fan Combined Thickness: | Up to 57 mm |
| USB 3.2 Gen 1 Type-A: | 2 |
| USB 3.2 Gen 2 Type-C: | 1 |
| Headset Audio Jack: | 1 |
| Standard: | 7 |
| Vertical: | 0 |
| 2.5 | 2+2 |
| 3.5 | 2 |
| Front: | 3 x 120 mm / 3 x 140 mm (1 x F360 RGB Core included) |
| Top: | 3 x 120 mm / 2 x 140 mm |
| Bottom: | 3 x 120 mm |
| Rear: | 1 x 120 mm / 1 x 140 mm |
| Filters: | High-Performance Mesh |
| Front: | Up to 420 mm |
| Top | Up to 360mm |
| Rear | Up to 140mm |
| Model | F360 RGB Core Fan (Case Version) |
| Speed | 1,700 ± 200 RPM |
| Airflow: | 50.1 CFM |
| Static: | 1.27 mm-H₂O |
| Noise: | 23.3 dBA |
| Fan Connector: | 3-pin |
| Warranty: | 2 years |
| Model Number: | CM-H72FB-R1 (Black) |
| UPC | 810074845571 (Black) |
| EAN: | 5056547205526 (Black) |
