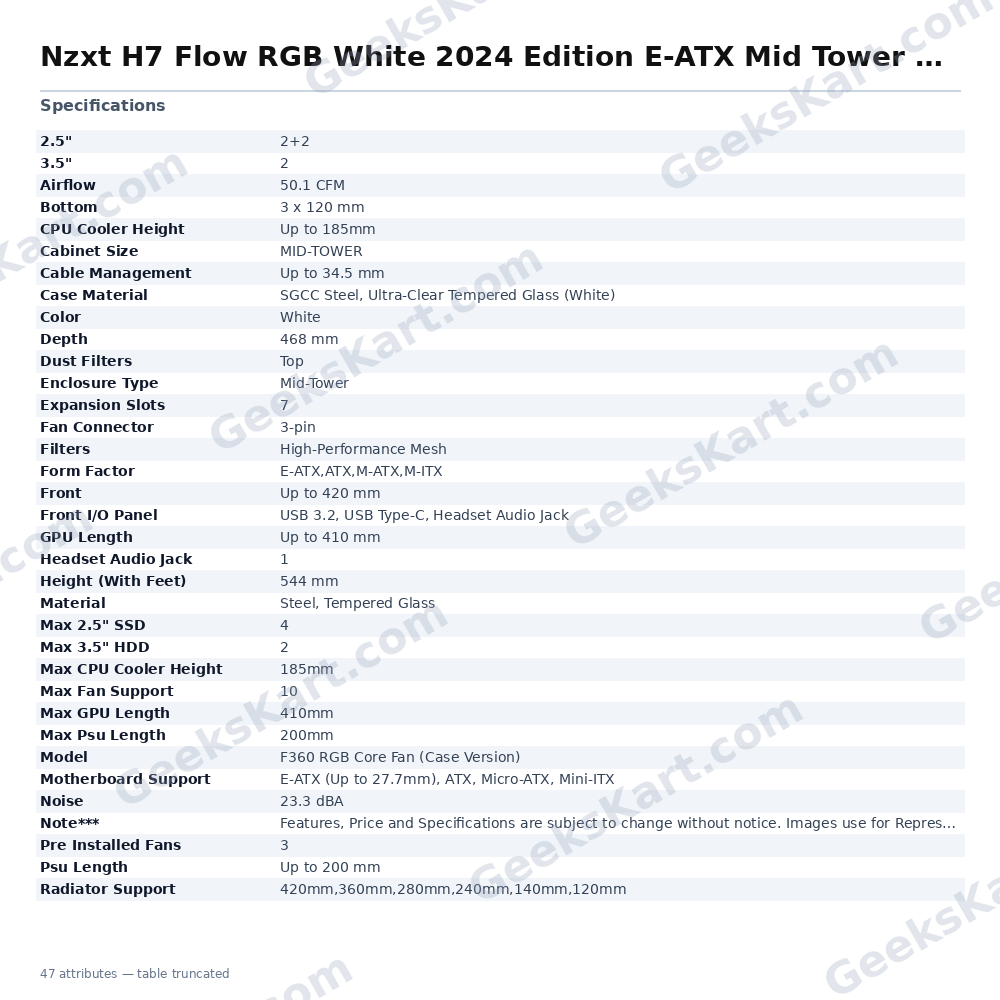

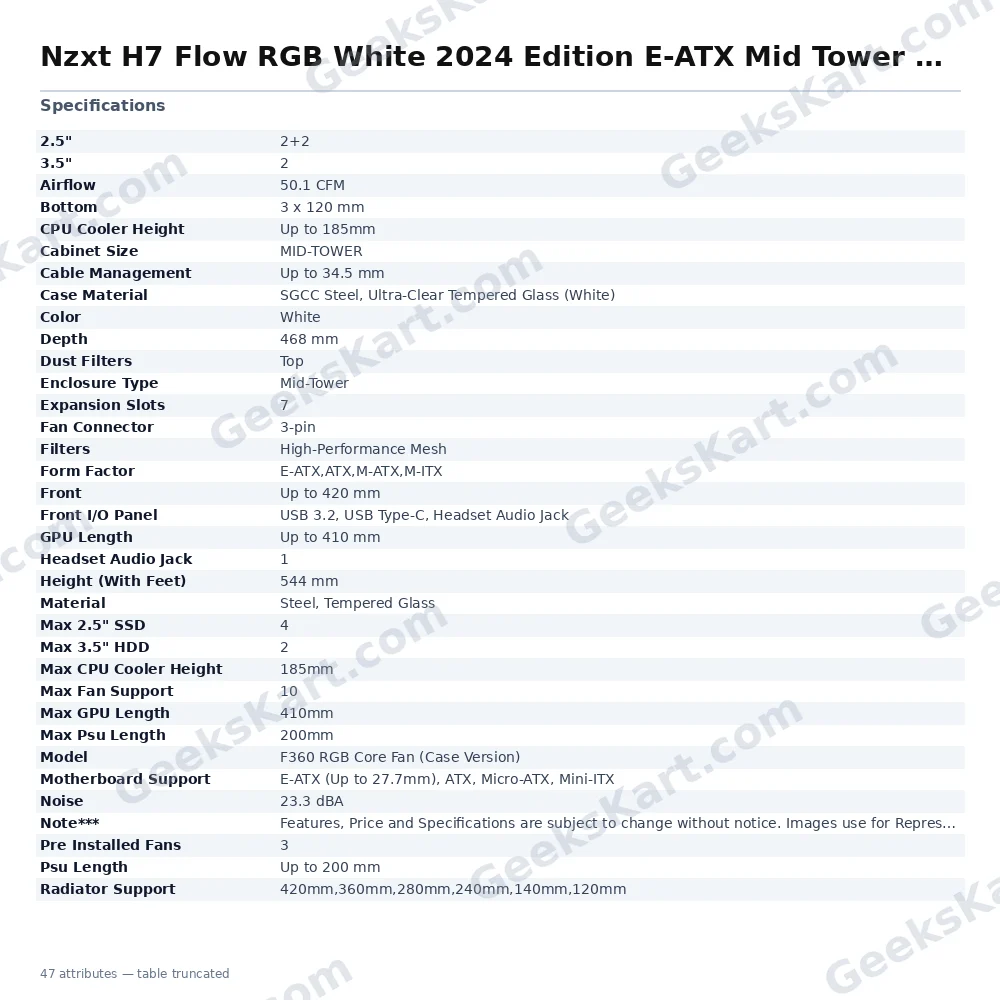

Nzxt H7 Flow RGB White 2024 Edition E-ATX Mid Tower Case

The NZXT H7 Flow RGB (CM-H72FW-R1) is a white mid-tower PC case designed around maximising airflow and cooling flexibility without increasing the chassis footprint. Built from SGCC steel and finished with an ultra-clear tempered glass side panel, it strikes a balance between structural rigidity and interior visibility. At the heart of its cooling system is a vertical PSU layout that frees up the bottom of the chassis for three 120mm intake fans positioned directly beneath the GPU — a deliberate design choice that channels fresh air where modern graphics cards need it most. Three F360 RGB Core fans (single-frame design, 3-pin connector) come pre-installed in the front intake position, spinning at up to 1,700 ± 200 RPM and delivering 50.1 CFM of airflow at a noise level of 23.3 dBA and 1.27 mm-H₂O static pressure. Total fan capacity across the case reaches up to 10 fans: three up top, three in front, three at the bottom, and one at the rear. Radiator support is equally capable. The front accepts radiators up to 420mm, the top up to 360mm, and the rear up to 140mm. The top-mounted radiator and fan combined thickness clearance is up to 57mm for 140mm or 280mm units. CPU coolers can stand up to 185mm tall, while GPUs as long as 410mm fit comfortably. PSUs up to 200mm in length are supported. Motherboard compatibility spans E-ATX (up to 277mm wide), ATX, Micro-ATX, and Mini-ITX. Seven standard expansion slots provide ample room for multi-GPU or PCIe accessory configurations. Storage options include two 3.5-inch HDD bays and up to four 2.5-inch SSD positions (2+2 layout). The front I/O panel on the top of the case provides two USB 3.2 Gen 1 Type-A ports, one USB 3.2 Gen 2 Type-C port, and a headset audio jack. High-performance mesh panels on the front and top serve dual duty as intake surfaces and dust filters, while the cable management channel behind the motherboard tray offers up to 34.5mm of routing depth, supplemented by built-in hooks and included straps. Tool-less access to the front, top, and side panels simplifies building and future upgrades. — Verified Specifications — SKU: CM-H72FW-R1 | Colour: White | Dimensions: 544mm H × 244mm W × 468mm D | Weight: 11.13 kg | Material: SGCC Steel, Ultra-Clear Tempered Glass | Motherboard: E-ATX (≤277mm), ATX, Micro-ATX, Mini-ITX | GPU Clearance: 410mm | CPU Cooler: 185mm | PSU: 200mm | Fan Support: Up to 10 (3 front, 3 top, 3 bottom, 1 rear) | Pre-installed Fans: 3 × F360 RGB Core (3-pin, 1,700±200 RPM, 50.1 CFM, 23.3 dBA) | Radiator: Front 420mm, Top 360mm, Rear 140mm | Expansion Slots: 7 | Drive Bays: 2 × 3.5″, 4 × 2.5″ | Front I/O: 2× USB 3.2 Gen 1 Type-A, 1× USB 3.2 Gen 2 Type-C, 1× audio jack | Warranty: 2 Years
