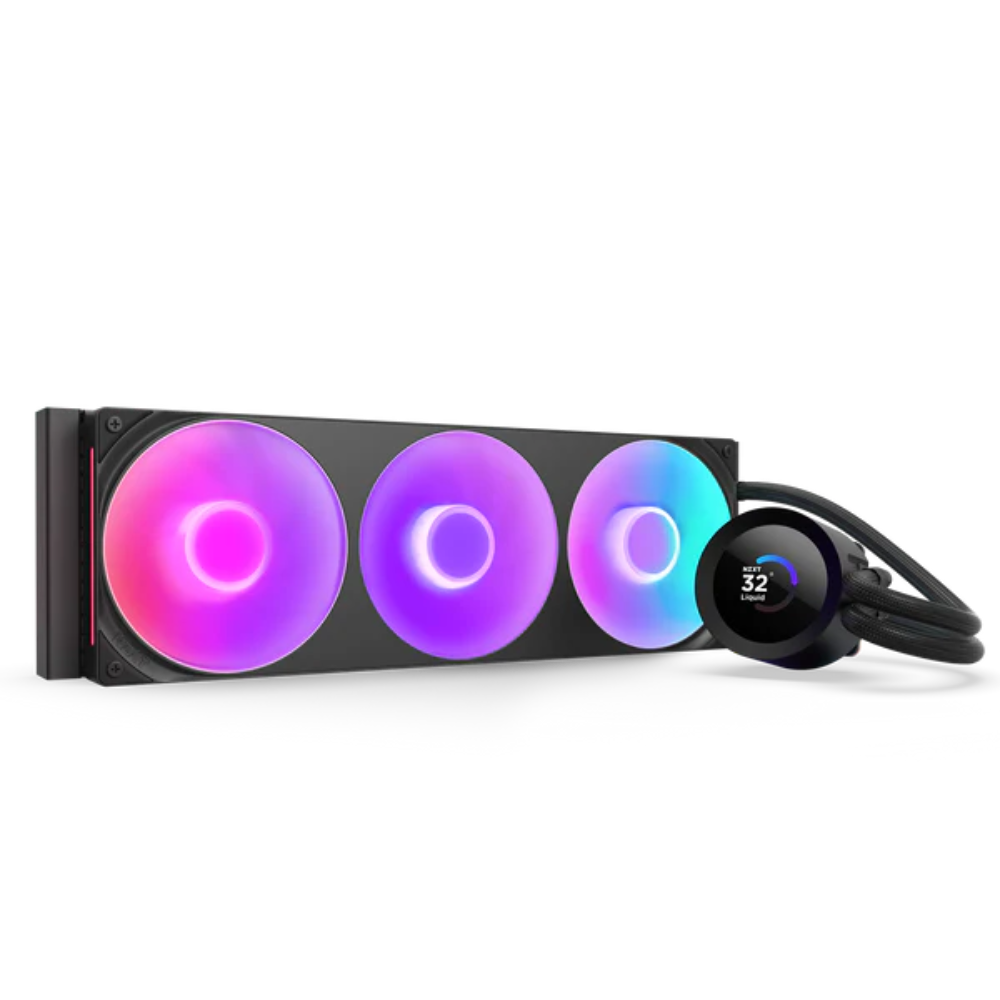

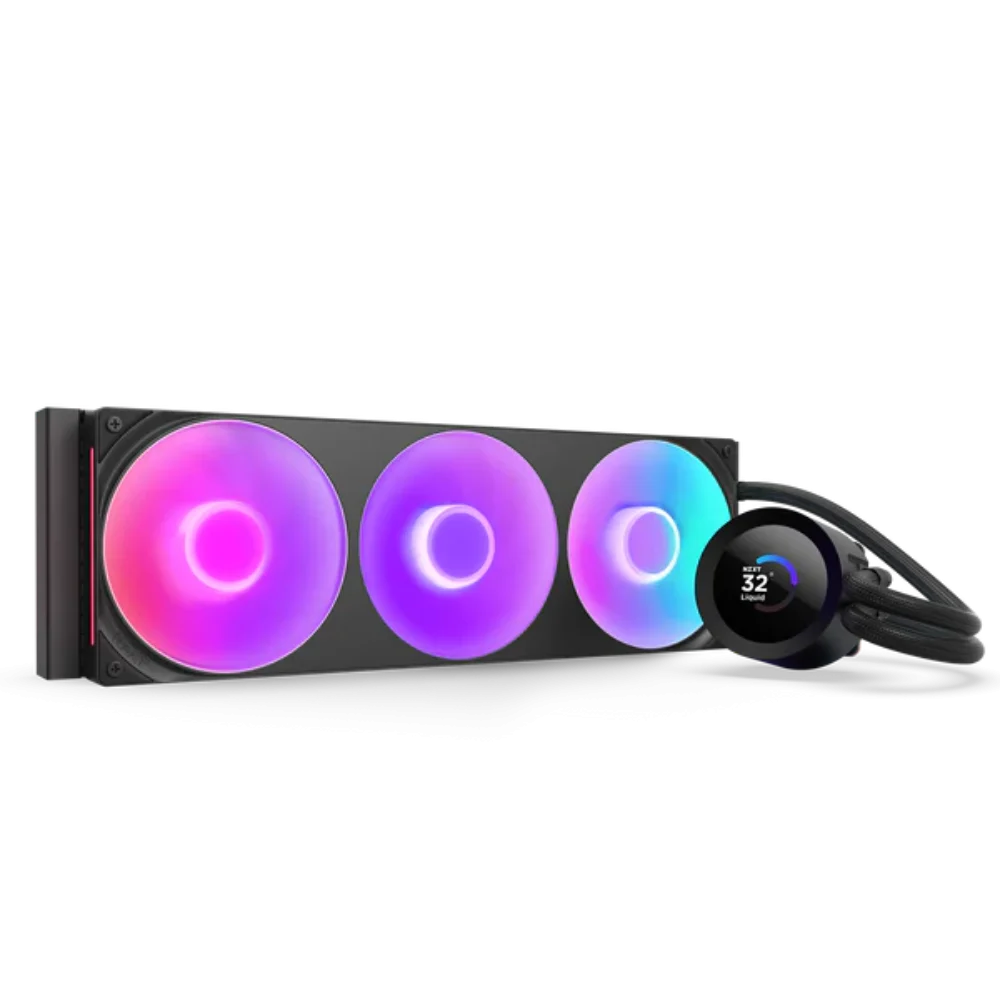

NZXT Kraken Plus 360 RGB 360mm CPU Liquid Cooler ( With LCD Display ) ( Black )
MPN NZXT-KRAKEN-PLUS-360-RGB-360MM-WITH-LCD-DIS-99ac6a · Brand NZXT
Features of NZXT Kraken Plus 360 RGB 360mm CPU Liquid Cooler ( With LCD Display ) ( Black ) 360mm RGB AIO Liquid Cooler with 1.54" LCD The Kraken Plus RGB AIO liquid cooler features the custom-designed NZXT Turbine pump, LCD display, and RGB fans for customizable cooling. High-Performance Cooling: The NZXT Turbine pump is engineered for high flow and head pressure, delivering efficient, low-noise cooling to keep your CPU performing at its best under heavy workloads. Custom LCD Screen: Display re
Inclusive of GST · GST invoice available
Overview
Features of NZXT Kraken Plus 360 RGB 360mm CPU Liquid Cooler ( With LCD Display ) ( Black )
360mm RGB AIO Liquid Cooler with 1.54" LCD
The Kraken Plus RGB AIO liquid cooler features the custom-designed NZXT Turbine pump, LCD display, and RGB fans for customizable cooling.
- High-Performance Cooling: The NZXT Turbine pump is engineered for high flow and head pressure, delivering efficient, low-noise cooling to keep your CPU performing at its best under heavy workloads.
- Custom LCD Screen: Display real-time system temps, animated GIFs, custom images, or web integrations like Spotify and YouTube on a bright 1.54" square LCD — fully customizable through NZXT CAM software.
- Seamless RGB: The RGB Core single-frame fan delivers strong airflow and vibrant, customizable lighting—plus an easy install with just four screws and a single cable.
- Easy Installation: Pre-applied thermal paste and a single breakout cable from the pump cap speed up installation and reduce cable clutter.
- Wide Compatibility: Includes tool-free mounting brackets that support the latest AMD® and Intel® CPU sockets, including AM5 and LGA 1851.
- Durable and Reliable: Reinforced rubber tubing with nylon-braided sleeving ensures long-term durability and easy routing during installation.
- Optimized Cold Plate: The split-flow copper cold plate channels coolant to the CPU’s hottest areas for better heat transfer, lower temps, and more consistent thermal performance.
- NZXT CAM Software: Use NZXT CAM to monitor temps, customize the LCD display, and control fan and pump speeds — all through an intuitive, easy-to-use interface.
Smart Cooling. Bold Display.
Kraken Plus delivers powerful CPU cooling, a fully customizable LCD, and easy installation — designed for builders who want both performance and personalization.
Powered by Turbine
The NZXT Turbine Pump is engineered for high flow and head pressure, delivering efficient, low-noise cooling that keeps up with demanding workloads.
Personalization on Display
Show real-time temps, custom images, GIFs, and web integrations like Spotify and YouTube — all on a vibrant 1.54-inch square LCD, fully controlled through NZXT CAM.
Seamless RGB
The RGB Core single-frame fan delivers strong airflow and vibrant, customizable lighting—plus an easy install with just four screws and a single cable.
Streamlined Cabling
Integrated fan control in the pump cap and a single breakout cable help reduce clutter and make installation faster.
Wide Compatibility
Tool-free mounting brackets support the latest Intel and AMD CPU sockets.
Ready to Install
Pre-applied thermal paste for faster setup and efficient heat transfer.
Optimized Cold Plate
Split-flow design channels coolant to the hottest areas for effective cooling.
Specifications of NZXT Kraken Plus 360 RGB 360mm CPU Liquid Cooler ( With LCD Display ) ( Black )
| Model Number | RL-KR360-B2 |
| DISPLAY | |
| Panel Type | Transmissive TFT, 262K color |
| Diagonal | 1.54 in / 39.1 mm |
| Resolution | 240 x 240 px |
| Refresh Rate | 30 Hz |
| Brightness | 300 cd/m² |
| Colors | 18-bit |
| Orientation | Software adjustable |
| PUMP | |
| Name | NZXT Turbine |
| Motor Speed | 1,200 – 2,800 ± 300 RPM |
| Power | 12 V DC, 0.3 A |
| CAP | |
| Diameter | 2.87 in / 72.95 mm |
| Height | 2.2 in / 55.97 mm |
| Housing Material | Plastic |
| COLD PLATE | |
| Dimensions | 56 mm x 56 mm |
| Type | Split flow |
| Material | Copper |
| RADIATOR | |
| Dimensions (L x W x H) | 401 x 120 x 27 mm |
| Material | Aluminum |
| TUBING | |
| Length | 420 mm |
| Material | CIIR rubber with Nylon braided sleeve |
| FAN SPECS | |
| Model | F360 RGB Core (EV) Fan |
| Color | Black / White |
| Dimensions | 360 x 120 x 26 mm |
| Quantity | 1 |
| Speed | 500 - 2,400 ± 250 RPM per fan |
| Airflow | 75.05 CFM per fan |
| Static Pressure | 3.07 mm-H₂O per fan |
| Noise Level | 31.9 dBA per fan |
| Power Consumption | 12V DC, 0.79 A, 9.48 W | 5V DC, 0.81 A, 4.05 W |
| Connector | 8-pin for PWM & RGB |
| Bearing | Fluid Dynamic Bearing |
| Lifespan | 60,000 hours |
| LED Quantity | 8 LEDs per fan |
| Cable Length | 600 mm |
| Materials | Plastic, rubber, PCB |
| SOCKET SUPPORT | |
| Intel® | LGA 1851/1700, 1200/115X |
| AMD® | AM5, AM4 |
| CPU SUPPORT | |
| Intel® | Intel Core i9 / Core i7 / Core i5 / Core i3 / Pentium / Celeron |
| AMD® | AMD Ryzen 9 / Ryzen 7 / Ryzen 5 / Ryzen 3 |
| EAN | 5056547205274 |
| Warranty | 6 Years |
Datasheet
| Warranty | 6 Years |
|---|---|
| Color | Black, White |
| Resolution | 240 x 240 px |
| Refresh Rate | 30 Hz |
| Panel Type | Transmissive TFT, 262K color |
| Power Consumption | 12V DC, 0.79 A, 9.48 W, 5V DC, 0.81 A, 4.05 W |
| Name | NZXT Turbine |
| Amd® | AMD Ryzen 9 / Ryzen 7 / Ryzen 5 / Ryzen 3 |
| Model | F360 RGB Core (EV) Fan |
| Power | 12 V DC, 0.3 A |
| Speed | 500 – 2,400 ± 250 RPM per fan |
| Colors | 18-bit |
| Height | 2.2 in / 55.97 mm |
| Length | 420 mm |
| Airflow | 75.05 CFM per fan |
| Bearing | Fluid Dynamic Bearing |
| Intel® | Intel Core i9 / Core i7 / Core i5 / Core i3 / Pentium / Celeron |
| Diagonal | 1.54 in / 39.1 mm |
| Diameter | 2.87 in / 72.95 mm |
| Lifespan | 60,000 hours |
| Material | CIIR rubber with Nylon braided sleeve |
| Quantity | 1 |
| Connector | 8-pin for PWM & RGB |
| Materials | Plastic, rubber, PCB |
| Brightness | 300 cd/m² |
| Dimensions | 360 x 120 x 26 mm |
| Motor Speed | 1,200 – 2,800 ± 300 RPM |
| Noise Level | 31.9 dBA per fan |
| Orientation | Software adjustable |
| Cable Length | 600 mm |
| Led Quantity | 8 LEDs per fan |
| Static Pressure | 3.07 mm-H₂O per fan |
| Housing Material | Plastic |
| Dimensions (L X W X H) | 401 x 120 x 27 mm |
