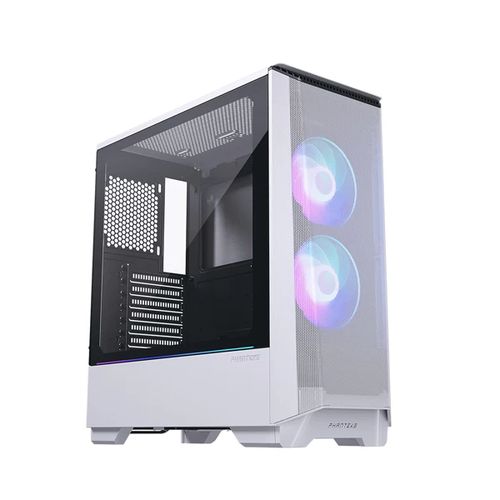

Features of PHANTEKS Eclipse P360A DRGB EATX Mid Tower Cabinet (Glacier White)
The new Phanteks CPU Case Eclipse P360A ARGB White features our new Ultra-Fine Performance Mesh front panel that combines huge airflow performance with dust filtration. The ultra-fine 1mm mesh perforation maximizes airflow without compromising dust filtration, bringing the best of both worlds
- The P360A EATX Cabinet features the Ultra-Fine Performance Mesh front panel that allows high airflow while functioning as a dust filter.
- The P360A is equipped with a D-RGB controller that has been pre-programmed with a wide range of tasteful colors and lighting effects.
- The P360A chassis is “Vertical GPU ready”.
Get the affordable cpu case with fan in the huge variety with us!

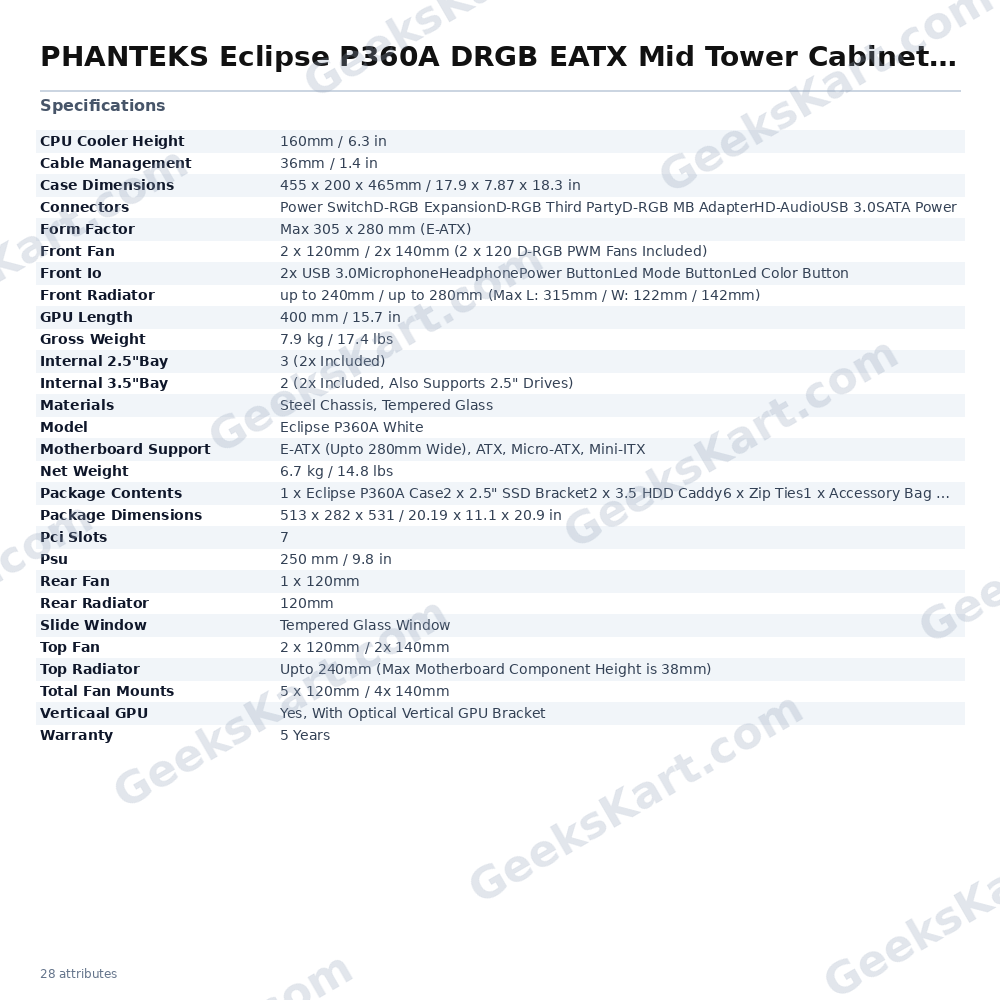

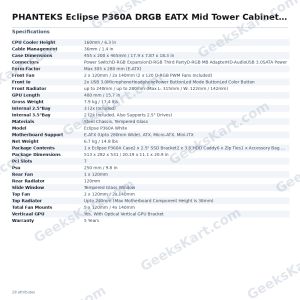

Specifications of PHANTEKS Eclipse P360A DRGB EATX Mid Tower Cabinet (Glacier White)
| Model name | Eclipse P360A White |
| Model No | PH-EC360ATG-DWT01 |
| Case Dimensions | 455 x 200 x 465mm / 17.9 x 7.87 x 18.3 in |
| Form Factor | Mid Tower |
| Materials | Steel Chassis, Tempered Glass |
| Motherboard Support | E-ATX (Upto 280mm Wide), ATX, Micro-ATX, Mini-ITX |
| Front IO | 2x USB 3.0 Microphone Headphone Power Button Led Mode Button Led Color Button |
| Connectors | Power Switch D-RGB Expansion D-RGB Third Party D-RGB MB Adapter HD-Audio USB 3.0 SATA Power |
| Slide Window | Tempered Glass Window |
| PCI Slots | 7 |
| Verticaal GPU | Yes, With Optical Vertical GPU Bracket |
| Internal 3.5″bay | 2 (2x Included, Also Supports 2.5″ Drives) |
| Internal 2.5″bay | 3 (2x Included) |
| Total Fan Mounts | 5 x 120mm / 4x 140mm |
| Front Fan | 2 x 120mm / 2x 140mm (2 x 120 D-RGB PWM Fans Included) |
| Top Fan | 2 x 120mm / 2x 140mm |
| Rear Fan | 1 x 120mm |
| Front Radiator | up to 240mm / up to 280mm (Max L: 315mm / W: 122mm / 142mm) |
| Top Radiator | Upto 240mm (Max Motherboard Component Height is 38mm) |
| Rear Radiator | 120mm |
| GPU Length | 400 mm / 15.7 in |
| CPU Cooler Height | 160mm / 6.3 in |
| Motherboard Size | Max 305 x 280 mm (E-ATX) |
| PSU | 250 mm / 9.8 in |
| Cable Management | 36mm / 1.4 in |
| Package Dimensions | 513 x 282 x 531 / 20.19 x 11.1 x 20.9 in |
| Net Weight | 6.7 kg / 14.8 lbs |
| Gross Weight | 7.9 kg / 17.4 lbs |
| Package Contents | 1 x Eclipse P360A Case 2 x 2.5″ SSD Bracket 2 x 3.5 HDD Caddy 6 x Zip Ties 1 x Accessory Bag With Necessary Screws and Standoffs |
| Warranty | 5 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
