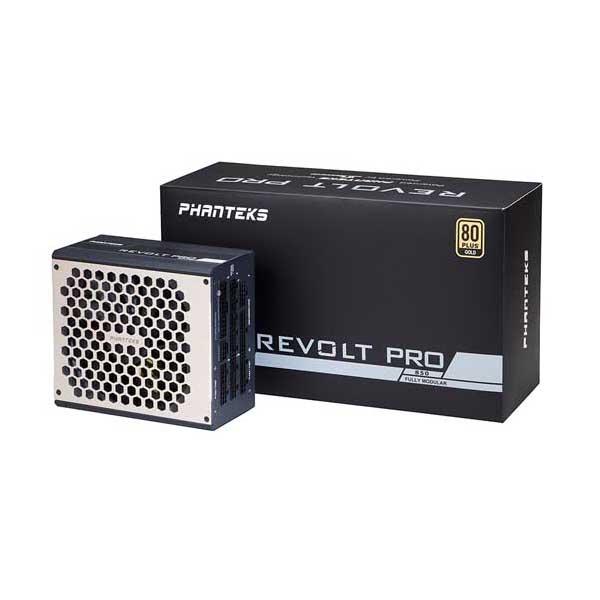

PHANTEKS Revolt Pro 850W 80+ Gold Fully Modular ATX 2.0 Power Supply

The Phanteks Revolt Pro 850W is a fully modular ATX power supply developed in collaboration with Seasonic and carrying the 80 Plus Gold certification. Certified efficient at 90% (115 VAC) and 92% (220–240 VAC) under typical loads, it is engineered to keep power delivery stable and losses low whether you are running a single high-end workstation or a multi-GPU configuration. What makes the Revolt Pro stand out from conventional ATX units is Phanteks’ patented Power Combo technology. A dedicated connector on the PCB lets you link a secondary power supply to the primary unit. In expansion mode, both supplies combine their output so your system can draw from a larger total power pool. In redundancy mode, the Revolt Pro automatically routes power through the surviving supply if one unit fails, keeping the machine running and preventing data loss during a switchover. Thermal management is handled by a 135 mm fluid-dynamic bearing fan rated for 50,000 hours at 40 °C. The Hybrid Mode control circuit allows the fan to stop entirely below 40% load, resulting in a completely silent system at everyday desktop workloads. When load rises, the fan ramps smoothly rather than switching abruptly. Internally, the Revolt Pro uses 100% Japanese 105 °C-rated capacitors and cable-free internal connections on a patented PCB layout. The modular cable set includes sleeved cables for the motherboard, CPU, and PCIe connections, plus flat cables for SATA and Molex runs, keeping the interior of your case tidy. Protection features cover over-power (OPP), over-voltage (OVP), short-circuit (SCP), over-current (OCP), over-temperature (OTP), no-load, and reset conditions. The unit ships with a 12-year manufacturer warranty. Verified Specifications: – Model: PH-P850GC-CN – Wattage: 850 W – Certification: 80 Plus Gold – Efficiency: 90% at 115 VAC / 92% at 220–240 VAC (typical load) – Form factor: Intel ATX 12V – Dimensions (W × D × H): 170 mm × 150 mm × 86 mm – Fan: 135 mm, fluid-dynamic bearing, 50,000 hr life at 40 °C, hybrid fanless mode below 40% load – Modular: Fully modular — black webbed cables (MB/CPU/PCIe), black flat cables (SATA/Molex) – Connectors: 24-pin ×1, CPU (4+4-pin) ×2, PCIe ×4 cables / 8 connectors, SATA ×4 cables / 14 connectors, Molex ×1 cable / 3 connectors – PSU Expansion: Yes (Phanteks Power Combo) – Protection: OPP, OVP, SCP, OCP, OTP, no-load, reset – MTBF: >100,000 hours at 25 °C (excluding DC fan) – Operating temperature: 0–50 °C – Color: Black (brushed aluminium grill, powder-coated steel body) – Warranty: 12 years Pair the Revolt Pro 850W with a Phanteks Eclipse or NV-series case and a Phanteks Glacier One liquid cooler for a complete, warranty-backed Phanteks ecosystem build
