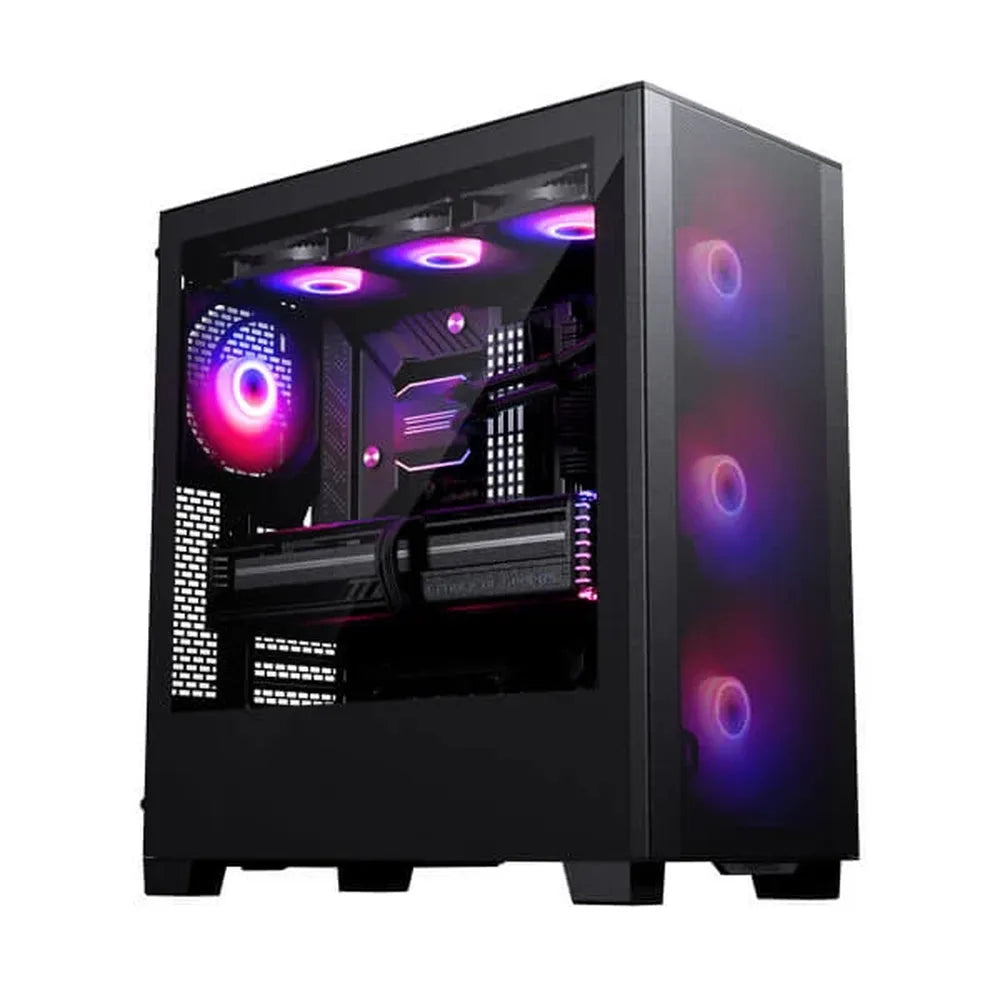

PHANTEKS XT Pro Ultra DRGB EATX Mid Tower Cabinet (Black)

The Phanteks XT Pro Ultra D-RGB E-ATX Mid Tower Cabinet in Black (model PH-XT523P1-DWT01) is engineered for enthusiast-grade desktop builds that demand ample cooling capacity and hardware compatibility. Built on a steel chassis with a tempered glass side panel, the case measures 450 mm (D) × 230 mm (W) × 500 mm (H), making it a practical choice for high-performance configurations without the footprint of a full tower. Motherboard compatibility spans Mini-ITX, Micro-ATX, ATX, and E-ATX up to 280 mm (without GPU support bracket), with dedicated support for rear-connector platforms including MSI Project Zero and ASUS BTF mainboards — enabling a near-zero-cable aesthetic on compatible builds. Cooling flexibility is a defining trait of the XT Pro Ultra. The chassis accommodates up to 10 × 120 mm or 6 × 140 mm fans across the front (3 × 120 mm / 3 × 140 mm), top (3 × 120 mm / 2 × 140 mm), rear (1 × 120 mm or 1 × 140 mm), and mid-plate (3 × 120 mm) positions. Four M25-140 mm D-RGB fans are included. Radiator support reaches up to 360 mm at the top (clearance: 415 × 138 × 60 mm) and up to 360 mm at the front, with a 120 mm position at the rear (clearance: 132 × 170 mm). The mesh front panel and top mesh dust filter promote high-airflow operation. The dedicated mid-plate fan mounting zone provides direct, isolated airflow to the GPU — a thoughtful design element for thermally intensive discrete graphics cards. GPU clearance is rated at 415 mm in length and 184 mm in width. CPU cooler height clearance is 184 mm, and PSU length clearance is 270 mm. Storage configurations are flexible: Configuration 1 supports 5 × 2.5-inch and 1 × 3.5-inch drives; Configuration 2 supports 3 × 2.5-inch and 2 × 3.5-inch drives. A triple 2.5-inch bracket is included. Seven PCI expansion slots are available. The front I/O panel features 1 × USB-C 3.2 Gen 2, 1 × USB 3.0, a combined audio/microphone jack, a power button, and a reset button. Internal connectors include USB 3.2 Gen 2 Type-E (XT Pro Ultra exclusive), USB 3.0, HD Audio, Power/Reset/HDD/Power LED headers. The case is backed by a 5-year warranty per the listed source data. Verified Specifications: - Model: PH-XT523P1-DWT01 - Form Factor: Mid Tower - Dimensions (D×W×H): 450 × 230 × 500 mm - Motherboard Support: Mini-ITX, Micro-ATX, ATX, E-ATX (up to 280 mm) - Materials: Steel chassis, tempered glass panel - Fan Locations: Up to 10 × 120 mm / 6 × 140 mm - Included Fans: 4 × M25-140 mm D-RGB - Top Radiator: Up to 360 mm - Front Radiator: Up to 360 mm - Rear Radiator: 120 mm - GPU Clearance: 415 mm length / 184 mm width - CPU Cooler Clearance: 184 mm - PSU Clearance: 270 mm - PCI Slots: 7 - Storage: Up to 5 × 2.5-inch + 2 × 3.5-inch - Front I/O: USB-C 3.2 Gen 2, USB 3.0, Audio/Mic combo - Warranty: 5 years
