PHANTEKS XT View ATX DRGB Mid Tower Cabinet (White)
MPN PHANTEKS-XT-WHITE · Brand Phanteks
Features of PHANTEKS XT View ATX DRGB Mid Tower Cabinet (White) With new hardware releases demanding more cooling capacity and internal space, the PHANTEKS XT View E-ATX DRGB cabinets are designed to deliver just that. And it delivers extremely good value. The length and width of the chassis easily fit even the largest graphics cards with space to spare for cable management. Cooling has been optimized with up to 9x 120 mm fan locations, support for 140 mm fans and dedicated radiator space in the
Inclusive of GST · GST invoice available
Overview
Features of PHANTEKS XT View ATX DRGB Mid Tower Cabinet (White)
With new hardware releases demanding more cooling capacity and internal space, the PHANTEKS XT View E-ATX DRGB cabinets are designed to deliver just that. And it delivers extremely good value. The length and width of the chassis easily fit even the largest graphics cards with space to spare for cable management. Cooling has been optimized with up to 9x 120 mm fan locations, support for 140 mm fans and dedicated radiator space in the top of the chassis.
The XT-Series further innovates to bring support for the latest mainboards that host hidden connectors at the rear to unlock that zero-cable setup. The graphics card also benefits from 3x 120 mm fan locations on the mid-plate that provides direct cooling.
COMPUTING WITH A VIEW
COOL AND POWERFUL
BUILD FOR THE FUTURE
PACKED WITH VALUE
INTEGRATED D-RGB LIGHTING
MULTIPLE STORAGE OPTIONS
Specifications of PHANTEKS XT View ATX DRGB Mid Tower Cabinet (White)
| ProductDimension(DxWxH) | 440x230x500mm |
| FormFactor | Mid Tower |
| Motherboard Support | ATX,Micro-ATX,Mini-IT,E-ATX(280mm without GPU support bracket) |
| Materials | Steel Chassis (Tempered Glass) |
| Front lO | IxUSB-C3.2 GEN 2 2xUSB3.0 Microphone/HeadphoneCombo ResetButton PowerButton D-RGB Color button D-RGB Mode button |
| Connectors | Power Switch Reset Switch HD-audio USB3.0 USB3.2 GEN 2 Type-E D-RGB expansion D-RGB Motherboard |
| Expansion | |
| PCI Slots | 7 |
| Internal 3.5" Bay | 2(2x included) |
| Internal 2.5" Bay | 5 (5 x included) |
| Fans & Radiators | |
| Top Fan | 3 x 120mm/2 x 140mm |
| Right Side Fan | 2x 120mm |
| Rear Fan | 1x l20mm/ 1x 140mm |
| Midplate Fan | 3 x 120mm |
| Top Radiator | up to 360 |
| Right Side Radiator | up to 240 (onlywithVerticalGPU} |
| Rear Radiator | 120 |
| Clearances | |
| GPU Length | 415 mm |
| GPU Width | 184 mm |
| CPU Cooler Height | 184 mm |
| Power Supply | 270 mm |
| Top 360 radiator | 415 x 138 x 60 mm |
| Side 240 radiator | 305 x 120 x 62mm (only with Vertcal GPU) |
| Rear Radiator | 120 |
| Warranty | 5 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |

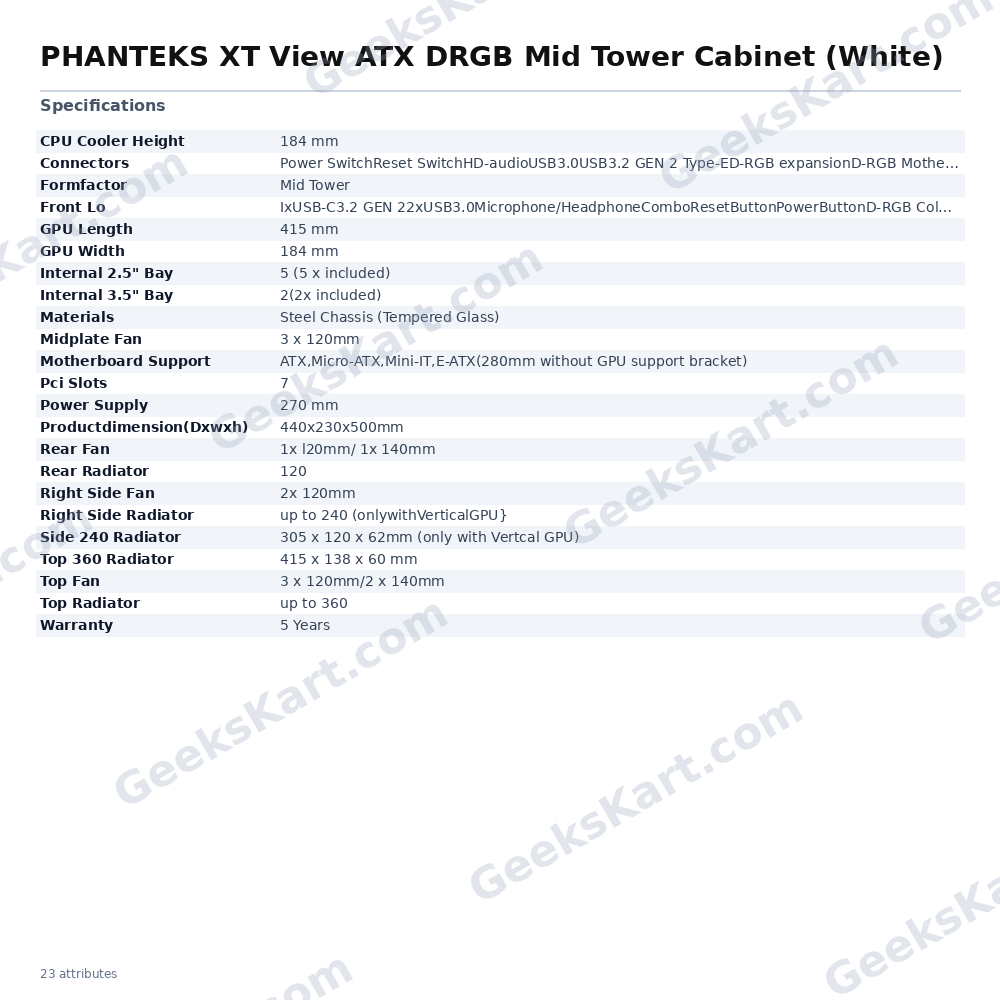

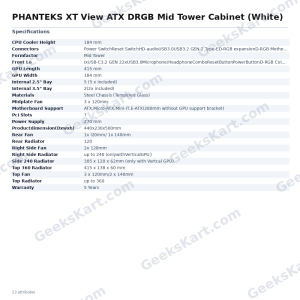

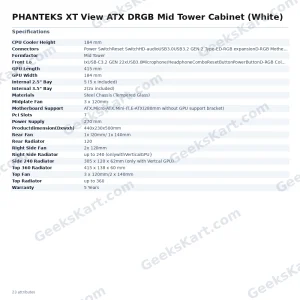

Datasheet
| Warranty | 5 Years |
|---|---|
| Top Fan | 3 x 120mm/2 x 140mm |
| Front Lo | IxUSB-C3.2 GEN 22xUSB3.0Microphone/HeadphoneComboResetButtonPowerButtonD-RGB Color buttonD-RGB Mode button |
| Rear Fan | 1x l20mm/ 1x 140mm |
| GPU Width | 184 mm |
| Materials | Steel Chassis (Tempered Glass) |
| Pci Slots | 7 |
| Connectors | Power SwitchReset SwitchHD-audioUSB3.0USB3.2 GEN 2 Type-ED-RGB expansionD-RGB Motherboard |
| Formfactor | Mid Tower |
| GPU Length | 415 mm |
| Midplate Fan | 3 x 120mm |
| Power Supply | 270 mm |
| Top Radiator | up to 360 |
| Rear Radiator | 120 |
| Right Side Fan | 2x 120mm |
| Top 360 Radiator | 415 x 138 x 60 mm |
| CPU Cooler Height | 184 mm |
| Internal 2.5" Bay | 5 (5 x included) |
| Internal 3.5" Bay | 2(2x included) |
| Side 240 Radiator | 305 x 120 x 62mm (only with Vertcal GPU) |
| Motherboard Support | ATX,Micro-ATX,Mini-IT,E-ATX(280mm without GPU support bracket) |
| Right Side Radiator | up to 240 (onlywithVerticalGPU} |
| Productdimension(Dxwxh) | 440x230x500mm |
