PNY GeForce RTX 5060 Ti EPIC-X RGB Overclocked Triple Fan 8GB GDDR7 Graphics Card
MPN VCG5060T8TFXXPB1-O · Brand PNY
PNY GeForce RTX 5060 Ti EPIC-X RGB OC triple-fan graphics card with 8 GB GDDR7, 4608 CUDA cores, 2692 MHz boost clock, and DLSS 4.5 support on NVIDIA Blackwell architecture
Inclusive of GST · GST invoice available
Overview
The PNY GeForce RTX 5060 Ti EPIC-X RGB Overclocked Triple Fan Graphics Card (SKU: VCG5060T8TFXXPB1-O) brings NVIDIA Blackwell architecture to the mainstream segment, pairing 4608 CUDA cores with 8 GB of fast GDDR7 memory for smooth, high-fidelity gaming and content creation. The card runs a base clock of 2407 MHz and a boost clock of 2692 MHz out of the box, with PNY's factory overclock giving it a head start over reference speeds without any manual tuning. Cooling is handled by PNY's EPIC-X RGB triple-fan shroud, which spreads airflow across a large heatsink to keep thermals in check during extended sessions. The ARGB lighting is configurable, letting you coordinate colours with the rest of your build. Three DisplayPort outputs and one HDMI port support up to four simultaneous displays at resolutions up to 7680 × 4320 (8K), making it a versatile choice for both single-screen high-refresh setups and multi-monitor productivity rigs. On the software side, the card supports DLSS 4.5 for AI-powered frame generation and upscaling, DirectX 12 Ultimate for ray tracing and mesh shaders, and NVIDIA Studio drivers for creative workloads such as video editing and 3D rendering. The 128-bit memory bus running at 28 Gbps provides the bandwidth needed to keep the GPU fed in demanding titles. Installation requires a PCI Express 5.0 x8 slot (electrically compatible with PCIe 4.0 and 3.0 motherboards), a single 8-pin supplementary power connector, and a system power supply rated at 600 W or above. The card's maximum power draw is 180 W. OpenGL 4.6 support rounds out compatibility for legacy applications. Verified Specifications: - GPU Architecture: NVIDIA Blackwell - CUDA Cores: 4608 - Memory: 8 GB GDDR7 - Memory Interface: 128-bit - Memory Bandwidth: 28 Gbps - Base Clock: 2407 MHz | Boost Clock: 2692 MHz - TDP / Max Power: 180 W - Recommended PSU: 600 W - Power Connector: 1 × 8-pin - Display Outputs: 3 × DisplayPort, 1 × HDMI - Max Resolution: 7680 × 4320 (8K) - Max Simultaneous Displays: 4 - PCI Express: 5.0 (x8 slot) - DirectX: 12 Ultimate | OpenGL: 4.6 - OS Support: Windows 11 64-bit, Linux 64-bit - Warranty: 3 Years - Model Number: VCG5060T8TFXXPB1-O

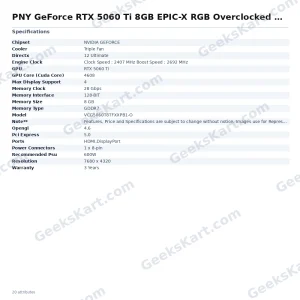

Datasheet
| Memory Type | GDDR7 |
|---|---|
| Warranty | 3 Years |
| Chipset | NVIDIA GEFORCE |
| Memory Size | 8 GB |
| GPU | RTX 5060 Ti |
| Memory Clock | 28 Gbps |
| Recommended PSU | 600W |
| Resolution | 7680 x 4320 |
| Model | VCG5060T8TFXXPB1-O |
| Ports | HDMI,DisplayPort |
| Cooler | Triple Fan |
| Note** | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only |
| Opengl | 4.6 |
| Directx | 12 Ultimate |
| Pci Express | 5.0 |
| Engine Clock | Clock Speed : 2407 MHz Boost Speed : 2692 MHz |
| Memory Interface | 128-BIT |
| Power Connectors | 1 x 8-pin |
| Max Display Support | 4 |
| GPU Core (Cuda Core) | 4608 |
