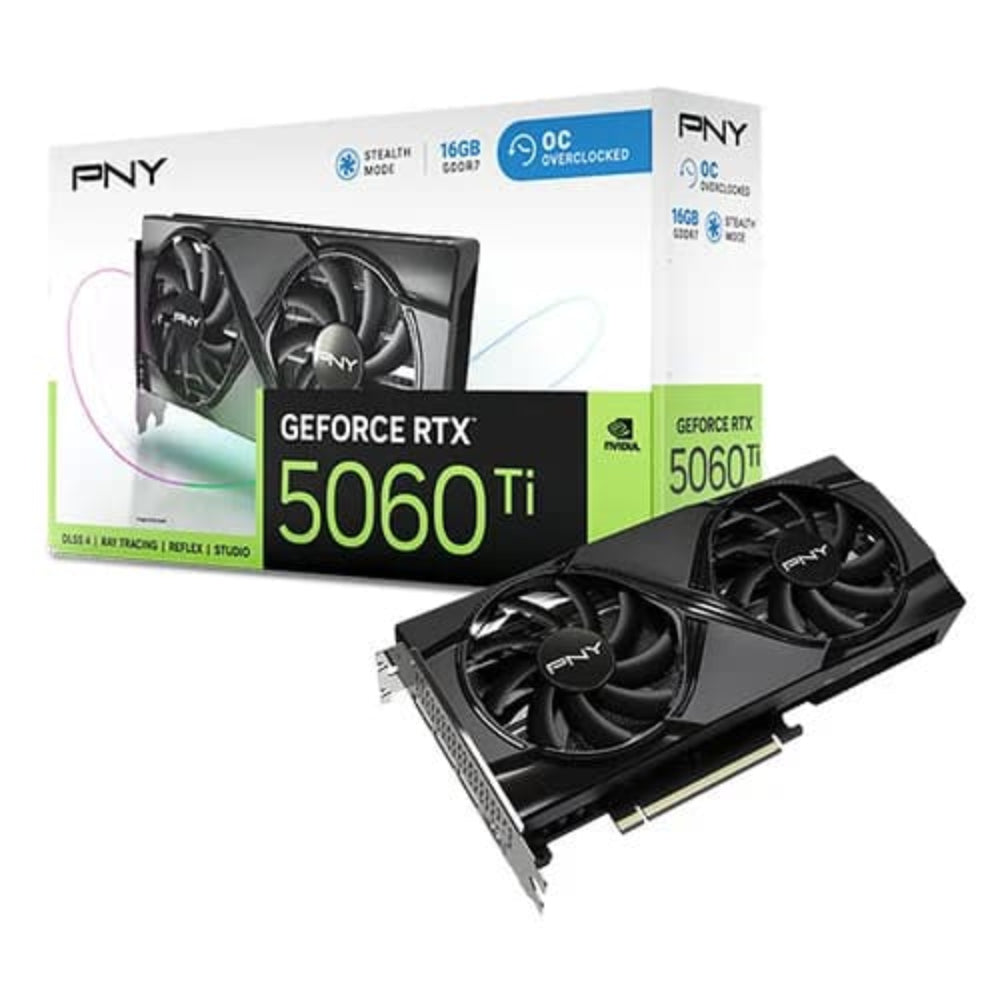

PNY GeForce RTX 5060 Ti OC 16GB Nvidia Graphic Card
MPN PNY-RTX-5060-TI-OC-16GB · Brand PNY
The PNY GeForce RTX 5060 Ti OC 16GB features NVIDIA Blackwell architecture, 4,608 CUDA cores, and 16 GB of fast GDDR7 memory with factory overclocked boost clocks up to 2,692 MHz for smooth high-resolution gaming and creative work
Inclusive of GST · GST invoice available
Overview
The PNY GeForce RTX 5060 Ti OC 16GB is a mid-to-high range desktop graphics card built on NVIDIA's Blackwell architecture. It is designed for gamers and content creators who want strong 1080p and 1440p performance along with AI-accelerated features in a power-efficient package. At the heart of this card sits the RTX 5060 Ti GPU with 4,608 CUDA cores clocked at a base speed of 2,407 MHz and a factory overclocked boost speed of 2,692 MHz. The 16 GB of GDDR7 memory operates at 28 Gbps over a 128-bit interface, delivering ample bandwidth for high-resolution textures and large creative workloads. GDDR7 is a newer memory standard compared to the GDDR6X used in prior-generation mid-range cards, contributing to improved throughput per watt. NVIDIA's DLSS 4 technology uses AI-based frame generation and upscaling to increase in-game frame rates without a proportional rise in GPU load, making high-refresh-rate gaming more accessible. Blackwell's hardware ray-tracing and AI tensor cores also benefit NVIDIA Studio users working in 3D rendering, video editing, and machine-learning inference tasks. The card's dual-fan cooling solution manages a maximum thermal design power of 180 W, and PNY recommends a 650 W power supply for a complete system. Power is drawn through a single 8-pin connector. Display output consists of three DisplayPort and one HDMI port, supporting up to four simultaneous monitors at resolutions up to 7,680 × 4,320 (8K). The card connects to the motherboard via a PCIe Gen 5 slot and is compatible with DirectX 12 Ultimate and OpenGL 4.6. Verified Specifications: - GPU: NVIDIA GeForce RTX 5060 Ti (Blackwell) - CUDA Cores: 4,608 - Base Clock: 2,407 MHz | Boost Clock: 2,692 MHz - Memory: 16 GB GDDR7, 128-bit, 28 Gbps - TDP: 180 W | Recommended PSU: 650 W - Power Connector: 1 × 8-pin - Display Outputs: 3 × DisplayPort, 1 × HDMI (4 displays max) - Max Resolution: 7,680 × 4,320 - Interface: PCIe 5.0 - API Support: DirectX 12 Ultimate, OpenGL 4.6 - Cooler: Dual Fan - Warranty: 3 Years - Part Number: VCG5060T16DFXPB1-O

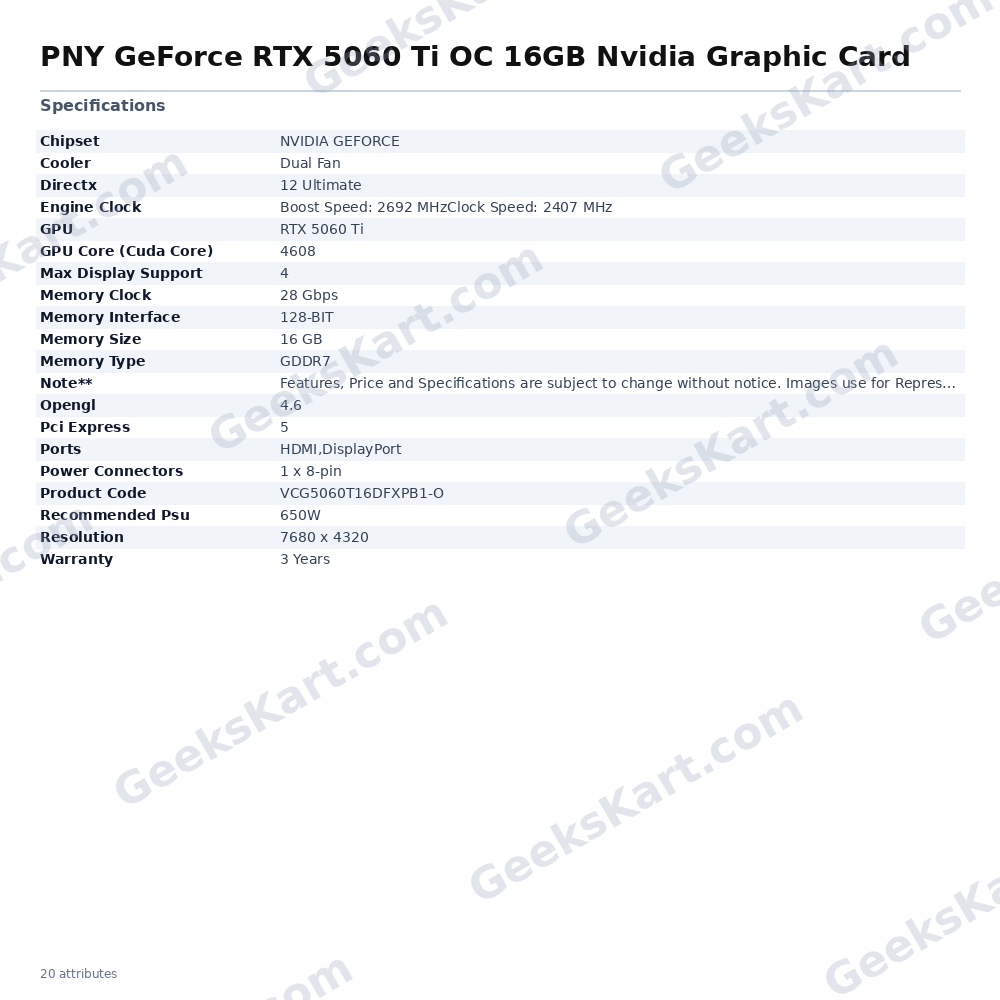

Datasheet
| Memory Type | GDDR7 |
|---|---|
| Warranty | 3 Years |
| Chipset | NVIDIA GEFORCE |
| Memory Size | 16 GB |
| GPU | RTX 5060 Ti |
| Memory Clock | 28 Gbps |
| Recommended PSU | 650W |
| Resolution | 7680 x 4320 |
| Ports | HDMI,DisplayPort |
| Cooler | Dual Fan |
| Note** | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only |
| Opengl | 4.6 |
| Directx | 12 Ultimate |
| Pci Express | 5 |
| Engine Clock | Boost Speed: 2692 MHzClock Speed: 2407 MHz |
| Product Code | VCG5060T16DFXPB1-O |
| Memory Interface | 128-BIT |
| Power Connectors | 1 x 8-pin |
| Max Display Support | 4 |
| GPU Core (Cuda Core) | 4608 |
