PNY NVIDIA RTX PRO 4000 Blackwell GPU
MPN VCNRTXPRO4000-SB · Brand PNY · 4.4" x 9.5" L, Single Slot, Full Height
The PNY NVIDIA RTX PRO 4000 Blackwell delivers 24 GB GDDR7 ECC memory, 8,960 CUDA cores, and a 140 W single-slot design for professional AI, rendering, and engineering workflows
Inclusive of GST · GST invoice available
Overview

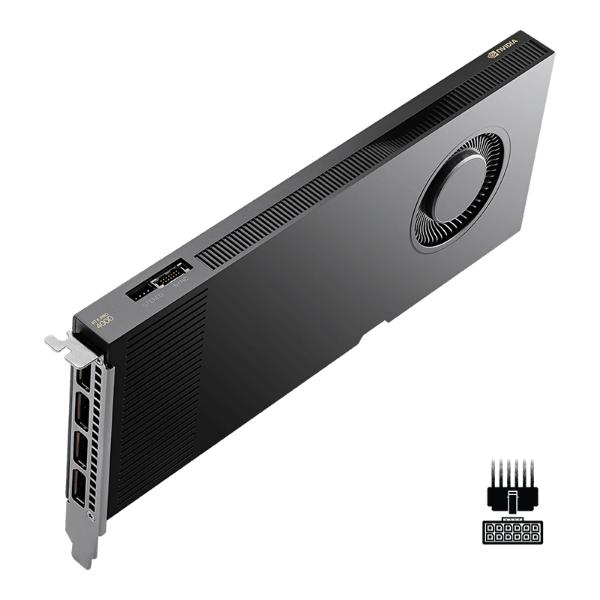

The PNY NVIDIA RTX PRO 4000 Blackwell is a professional-grade workstation graphics card engineered for demanding AI, design, engineering, and media and entertainment workflows. Built on the NVIDIA Blackwell architecture, it combines raw compute throughput with enterprise-class reliability in an exceptionally compact single-slot, full-height form factor measuring 4.4 inches by 9.5 inches. At the heart of this card are 8,960 CUDA cores paired with 24 GB of GDDR7 memory with ECC protection, running across a 192-bit memory interface. The 5th-generation Tensor Cores accelerate AI inferencing and local large language model workloads, while 4th-generation RT Cores handle real-time ray tracing for photoreal rendering in AECO, manufacturing, and media production pipelines. Four 9th-generation NVENC video encoding engines and four 6th-generation NVDEC video decoding engines provide hardware-accelerated video throughput, with support for 4:2:2 H.264, HEVC, and AV1 encoding. The card connects to the host system via a PCIe 5.0 x16 interface and draws just 140 W of total board power through a single PCIe CEM5 16-pin connector, making it suitable for workstations where thermal and power budgets are constrained. Display output is handled by four DisplayPort 2.1b connectors supporting up to four 4K displays at 165 Hz simultaneously, or two 8K displays at 100 Hz. Software support spans DirectX 12 with Shader Model 6.6, OpenGL 4.6, Vulkan 1.3, CUDA 13.0, OpenCL 3.0, and DirectCompute. The card is NVIDIA RTX PRO Sync compatible for multi-GPU frame lock, and supports 3D Vision Pro via 3-pin Mini DIN. ISV certifications and enterprise driver continuity make it a dependable choice for mission-critical deployments. Verified Specifications: - GPU Architecture: NVIDIA Blackwell - Model: VCNRTXPRO4000-SB - CUDA Cores: 8,960 - Tensor Cores: 5th Generation (280 units) - RT Cores: 4th Generation (70 units) - GPU Memory: 24 GB GDDR7 with ECC - Memory Interface: 192-bit - System Interface: PCIe 5.0 x16 - Display Connectors: 4x DisplayPort 2.1b - Max Displays: 4x 3840×2160 @165 Hz or 2x 7680×4320 @100 Hz - Video Engines: 4x 9th-gen NVENC, 4x 6th-gen NVDEC - Total Board Power: 140 W - Power Connector: 1x PCIe CEM5 16-pin - Form Factor: Single Slot, Full Height, 4.4" × 9.5" - Process: 4N NVIDIA Custom - Transistors: 45.6 Billion - Die Size: 378 mm² - Thermal Solution: Active - Warranty: 3 Years
Datasheet
| Memory Type | GDDR7 |
|---|---|
| Warranty | 3 Years |
| GPU | RTX PRO 4000 |
| GPU Memory Size | 24 GB |
| Power Consumption | Total Board Power:140 W |
| Model | VCNRTXPRO4000-SB |
| Gpu Memory | 24 GB GDDR7 With ECC |
| Compute Apis | CUDA 13.0, OpenCL 3.0, DirectCompute |
| Graphic Apis | DirectX 12, Shader Model 6.6, OpenGL 4.6 Vulkan 1.3 |
| Tensor Cores | 5th Generation |
| Video Engines | 4x 9th Gen NVENC Video Engines 4x 6th Gen NVDEC Video Engines |
| Cpu Cuda Cores | 8960 |
| Power Connector | 1x PCIe CEM5 16-Pin |
| Gpu Architecture | NVIDIA Blackwell |
| Memory Interface | 192-bit |
| System Interface | PCIe 5.0 x16 |
| Thermal Solution | Active |
| Ray Tracing Cores | 4th Generation |
| Display Connectors | 4x DisplayPort 2.1b |
| Max Simultaneous Displays | 4x 3840 x 2160 @165 Hz 2x 7860 x 4320 @100 Hz |
| Form Factor | 4.4" x 9.5" L, Single Slot, Full Height |
