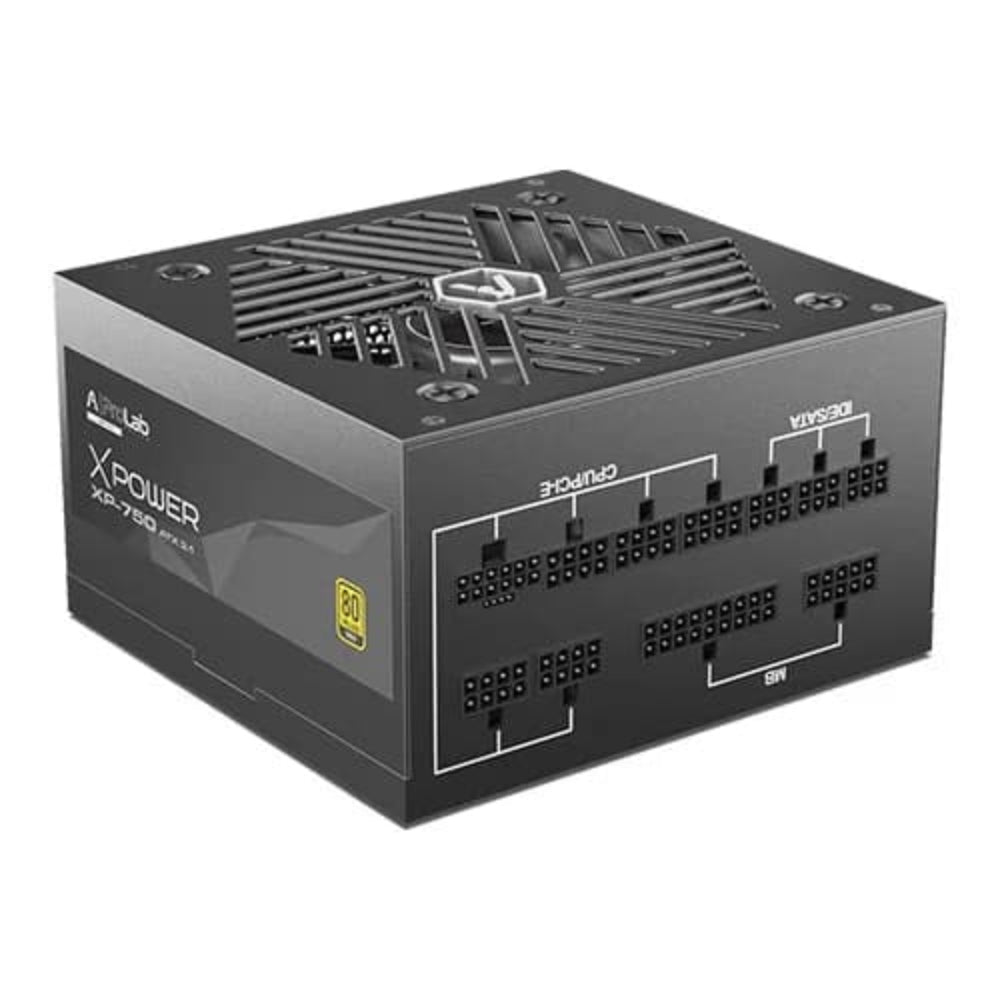

PROLAB DESIGN XPower XP-750 Gold Fully Modular ATX 3.1 Power Supply ( 750W )

The PROLAB DESIGN XPower XP-750 is a 750-watt fully modular power supply built to the ATX 3.1 and PCIe 5.1 specifications, making it ready for modern graphics cards that draw transient power through the 12V-2×6 connector. Its 80 PLUS Gold efficiency rating means it converts AC power with high efficiency across a wide load range, reducing waste heat inside your chassis and keeping electricity costs in check during extended gaming or workstation sessions. At the heart of the XP-750 sit 105°C-rated Japanese capacitors. These high-temperature components are chosen because they maintain stable output even under sustained heavy loads, a meaningful quality indicator compared with standard 85°C capacitors found in budget designs. Power delivery is further stabilised by Active Power Factor Correction (Active PFC), which draws a cleaner current waveform from the wall outlet and is a prerequisite for Energy Star and ErP Lot 6 2013 compliance — both of which this unit carries. Cooling is handled by a 120mm PWM fan mounted on a Fluid Dynamic Bearing (FDB). FDB fans generate less friction than sleeve-bearing alternatives, operate more quietly, and typically last longer — all relevant factors for a component sitting inside a sealed chassis for years. PWM speed control means the fan can spin down during light loads, keeping noise levels low when the system is idle. Being fully modular, every cable — including the 20+4 pin motherboard lead — detaches completely, so you only route the cables your build actually needs. This simplifies installation, improves airflow, and keeps the interior tidy. Six protection circuits — Over Power (OPP), Over Voltage (OVP), Under Voltage (UVP), Short Circuit (SCP), Over Current (OCP), and Over Temperature (OTP) — safeguard connected components. The unit is RoHS-5 compliant and backed by a 5-year warranty. Verified Specifications: • Model: XP-750 (ATX 3.1) • Total Output: 750 W • Efficiency: 80 PLUS Gold / Energy Star / ErP Lot 6 2013 • Form Factor: ATX 3.1 / ATX 12V / EPS 12V / PCIe 5.1 • Fan: 120mm PWM, Fluid Dynamic Bearing • Capacitors: 105°C Japanese • Modular: Fully Modular • AC Input: 100–240 Vac, 12–6 A, 50–60 Hz • Dimensions: 140 mm (L) × 150 mm (W) × 86 mm (H) • Cables: 20+4 Pin MOBO ×1, 4+4 Pin CPU ×2, 6+2 Pin PCIe ×2, SATA ×4 (×2 cables), Molex ×2 (×1 cable), 12V-2×6 Pin ×1 • Protection: OPP / OVP / UVP / SCP / OCP / OTP • Compliance: RoHS-5 • Warranty: 5 Years
