Samsung 870 Evo 1TB SSD

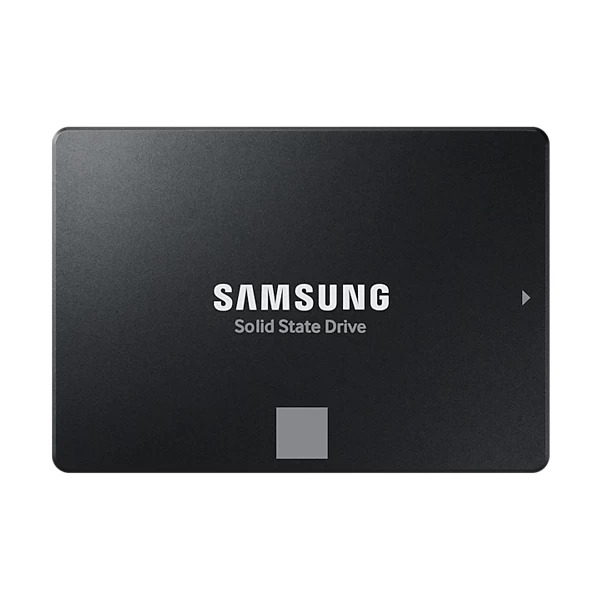

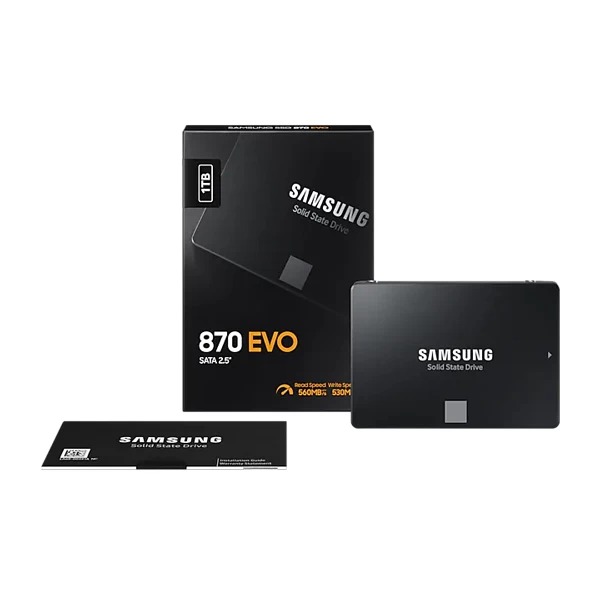

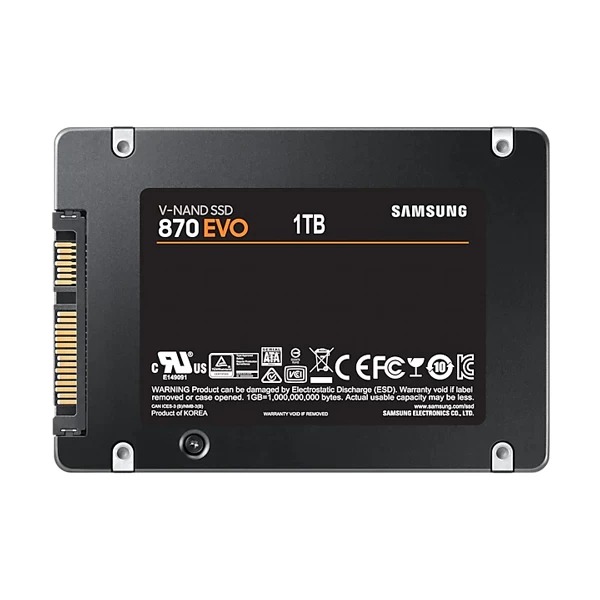

The Samsung 870 EVO 1TB 2.5-inch SATA SSD (model MZ-77E1T0BW) is a mainstream internal solid-state drive built around Samsung’s 6th-generation V-NAND 3-bit MLC (TLC) memory and the in-house Samsung MKX controller. It targets desktop and laptop users who need a dependable SATA upgrade without sacrificing everyday performance. Using the SATA 6 Gb/s interface, the drive achieves sequential read speeds of up to 560 MB/s and sequential write speeds of up to 530 MB/s. Random performance reaches up to 98,000 IOPS on reads and up to 88,000 IOPS on writes (both measured at 4 KB blocks, QD32). A 512 MB low-power DDR4 SDRAM cache works alongside Samsung’s Intelligent TurboWrite technology to sustain elevated write throughput during mixed workloads. The 2.5-inch, 7 mm (6.8 mm per Samsung spec) form factor fits standard laptop bays and desktop SATA slots, and the drive remains backward compatible with SATA 3 Gb/s and SATA 1.5 Gb/s hosts. Reliability credentials are strong for this class of drive. Samsung rates the 870 EVO 1TB for 600 TBW (terabytes written) endurance and 1.5 million hours MTBF. Hardware-level AES 256-bit encryption, TCG/Opal, and IEEE 1667 support are included, making it suitable for encrypted-drive deployments. The drive is backed by a 5-year limited warranty. Samsung Magician software is included for health monitoring, performance benchmarking, firmware updates, and secure erase. A separate Data Migration tool simplifies transferring an existing OS and files from a hard drive or older SSD. Verified Specifications: – Capacity: 1TB (1,000 GB by IDEMA definition) – Form Factor: 2.5-inch – Interface: SATA 6 Gb/s (compatible with SATA 3 Gb/s and 1.5 Gb/s) – Sequential Read: Up to 560 MB/s – Sequential Write: Up to 530 MB/s – Random Read (4 KB, QD32): Up to 98,000 IOPS – Random Write (4 KB, QD32): Up to 88,000 IOPS – NAND: Samsung V-NAND 3-bit MLC – Controller: Samsung MKX – DRAM Cache: Samsung 512 MB LP DDR4 SDRAM – Endurance (TBW): 600 TBW – MTBF: 1.5 million hours – Encryption: AES 256-bit, TCG/Opal, IEEE 1667 – Operating Temperature: 0–70 °C – Dimensions: 100 × 69.85 × 6.8 mm – Weight: Approx. 45 g – Warranty: 5 Years – GTIN: 887276429595 For users who need faster speeds, Samsung’s NVMe lineup — including the 990 EVO and 990 Pro — offers PCIe Gen4 performance in an M.2 form factor
