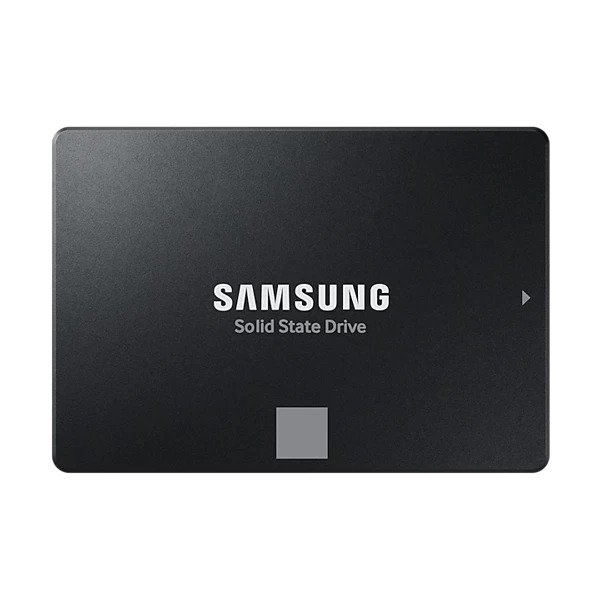

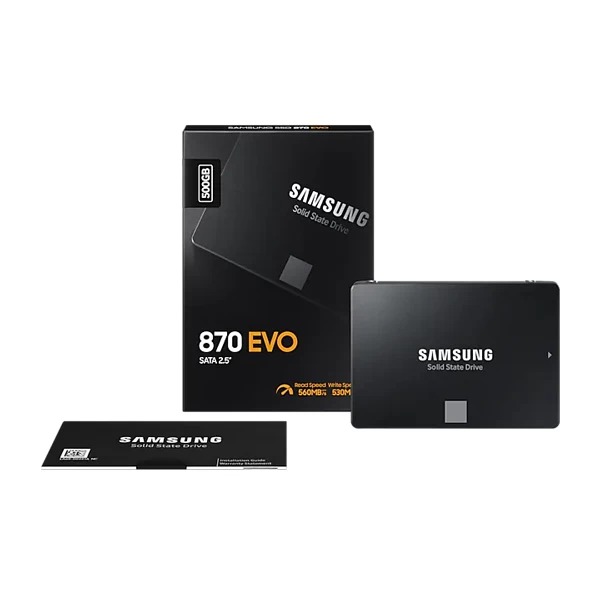

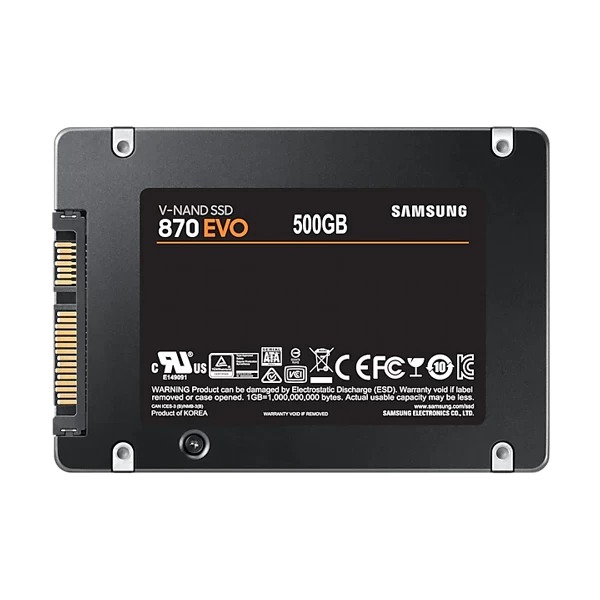

Samsung 870 EVO 500GB SSD

The Samsung 870 EVO 500GB is a 2.5-inch internal SATA solid-state drive designed for client PCs, laptops, and desktop systems that use a standard SATA interface. It delivers sequential read speeds of up to 560 MB/s and sequential write speeds of up to 530 MB/s, reaching the practical ceiling of the SATA 6 Gb/s interface. Random read performance reaches up to 98,000 IOPS and random write up to 88,000 IOPS at queue depth 32, making everyday tasks such as application loading, file transfers, and multitasking noticeably more responsive compared to a traditional hard drive. Powering the 870 EVO is Samsung’s MKX controller paired with 512 MB of Low Power DDR4 SDRAM cache and Samsung’s 6th-generation V-NAND 3-bit MLC (TLC) flash memory. The Intelligent TurboWrite technology dynamically allocates a variable write buffer to sustain high write throughput during extended workloads. All key components — NAND, DRAM, and firmware — are developed and manufactured by Samsung, enabling tight integration between hardware and software layers. For long-term reliability, the 870 EVO is rated at 300 TBW (terabytes written) endurance with a mean time between failures (MTBF) of 1.5 million hours, backed by a 5-year limited warranty. Hardware-level AES 256-bit encryption is supported alongside TCG/Opal and IEEE 1667 standards, allowing the drive to serve as an encrypted drive in compatible host environments. TRIM, S.M.A.R.T., and auto garbage collection are all supported to maintain drive health over time. The drive measures 100 × 69.85 × 6.8 mm and weighs approximately 45 g, fitting standard 2.5-inch drive bays and most laptop upgrade slots. It is backward-compatible with SATA 3 Gb/s and SATA 1.5 Gb/s interfaces. Average power consumption is 2.2 W at the system level, with an idle draw of up to 30 mW, and it operates within a temperature range of 0–70 °C. Samsung Magician software is included for drive health monitoring, performance benchmarking, firmware updates, and Over Provisioning management. A Data Migration utility is also available to transfer data from an existing drive to the 870 EVO without reinstalling the operating system. Verified Specifications: – Capacity: 500 GB – Form Factor: 2.5-inch – Interface: SATA 6 Gb/s (compatible with SATA 3 Gb/s and SATA 1.5 Gb/s) – Sequential Read: Up to 560 MB/s – Sequential Write: Up to 530 MB/s – Random Read (4KB, QD32): Up to 98,000 IOPS – Random Write (4KB, QD32): Up to 88,000 IOPS – NAND: Samsung V-NAND 3-bit MLC (6th Gen) – Controller: Samsung MKX – Cache: Samsung 512 MB LPDDR4 SDRAM – Endurance (TBW): 300 TBW – MTBF: 1.5 million hours – Warranty: 5 years – Encryption: AES 256-bit, TCG/Opal, IEEE 1667 – Dimensions: 100 × 69.85 × 6.8 mm – Weight: Approx. 45 g – Average Power: 2.2 W; Idle: up to 30 mW – Operating Temperature: 0–70 °C – SKU / Model Number: MZ-77E500BW – GTIN / EAN: 8806090527463
