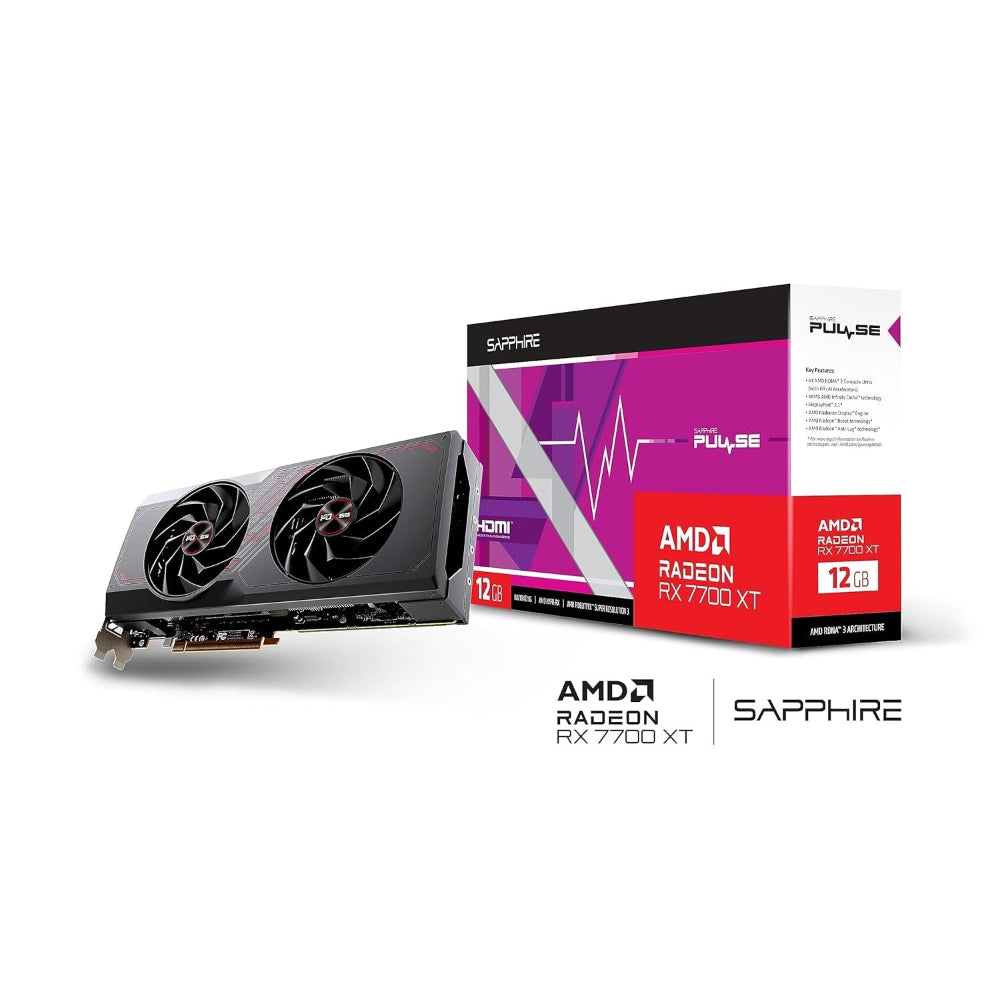

SAPPHIRE Pulse Radeon RX 7700 XT 12GB AMD Graphic Card

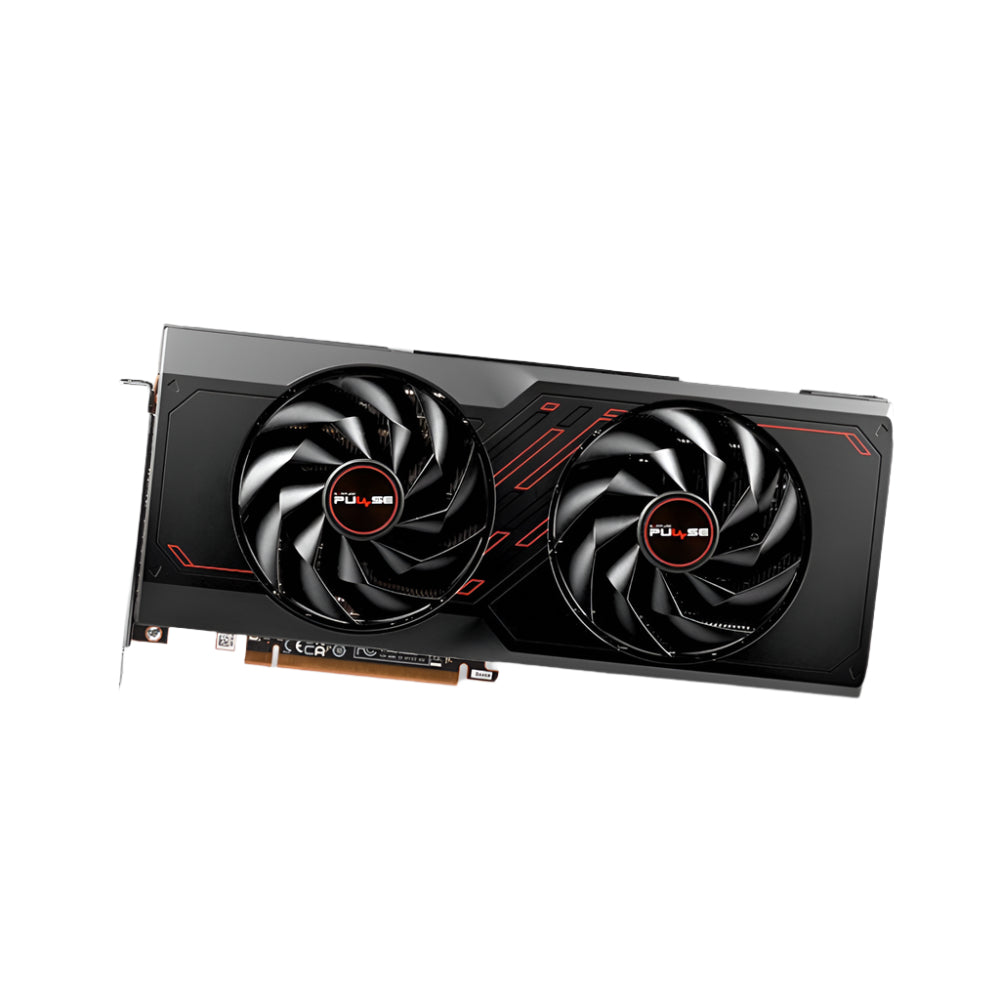

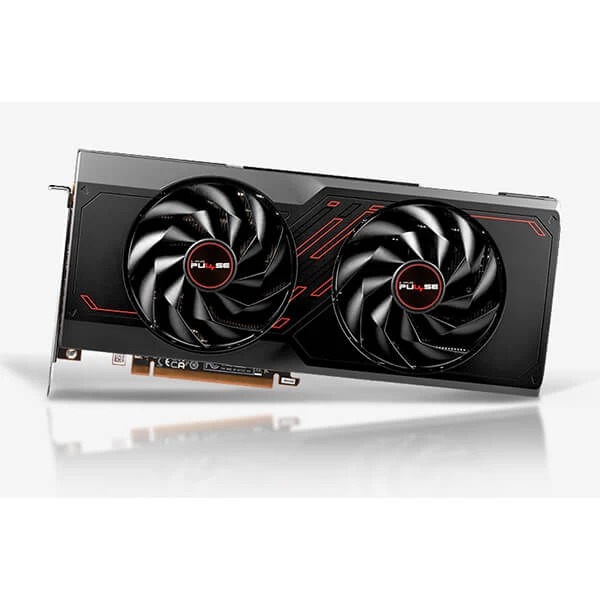

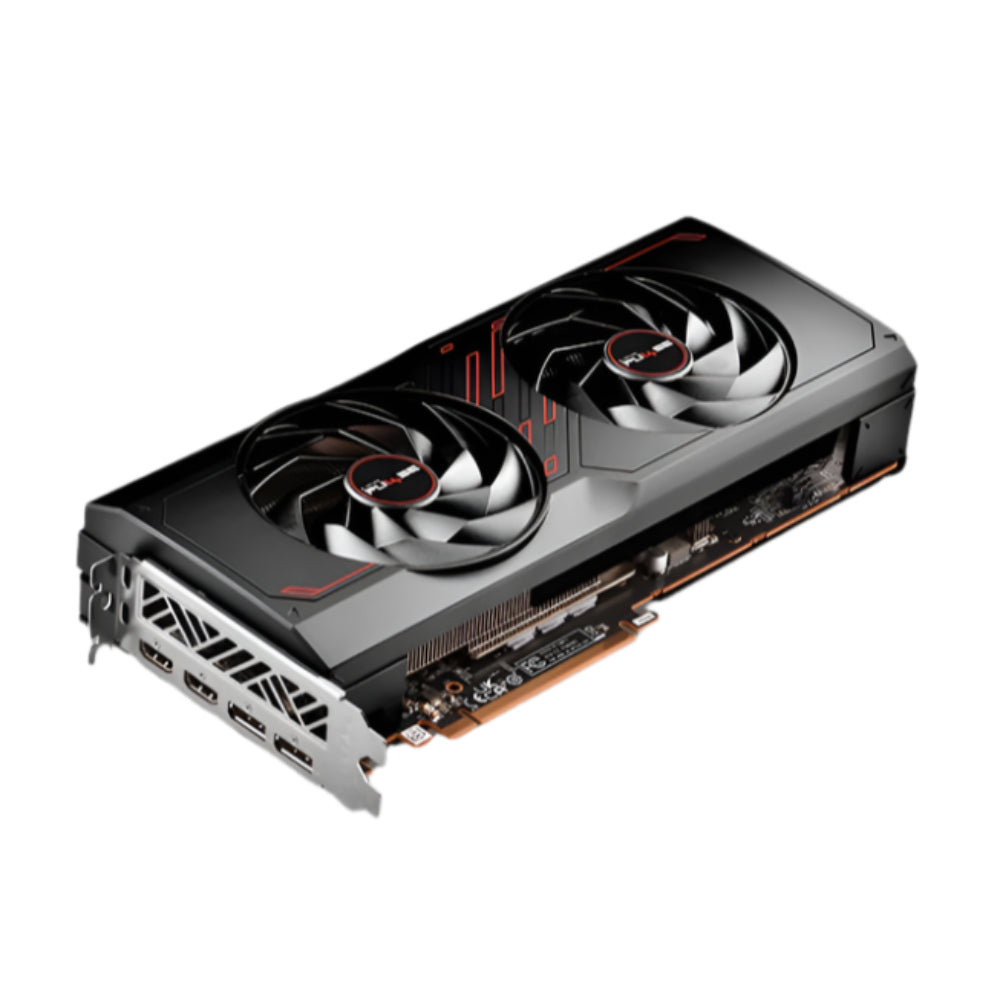

The Sapphire Pulse Radeon RX 7700 XT 12GB is a mid-to-high-range discrete graphics card built on AMD's RDNA 3 architecture. Carrying model number 11335-04-20G, it is designed to deliver capable 1080p and 1440p gaming performance through a combination of a large shader array, efficient power delivery, and a purpose-built dual-fan cooling solution. At the heart of the card sits the AMD Radeon RX 7700 XT GPU, which features 3456 stream processors and 54 ray accelerators for hardware-accelerated ray tracing. The 12 GB of GDDR6 video memory rides on a 192-bit memory bus, providing sufficient bandwidth for modern titles and creative workloads at higher resolutions. The card connects via a PCIe 4.0 slot, ensuring compatibility with current-generation platforms while maintaining backward compatibility with PCIe 3.0 motherboards. Sapphire's Pulse cooling solution centres on dual Angular Velocity fans with dual-ball bearings. According to Sapphire's published design notes, the angular-velocity blade profile delivers up to 44% more downward air pressure and up to 19% more airflow versus the previous fan generation. Composite heatpipes are tuned per card design to spread heat evenly across the heatsink array. The PCB itself is a high-density 14-layer, 2 oz copper, high-TG construction to handle the power and signal demands of the RX 7700 XT silicon. Power delivery relies on a digital multi-phase design paired with Ultra High Performance Conductive Polymer Aluminum Capacitors, which offer stable capacitance at high frequencies and temperatures. External power is drawn through two 8-pin PCIe connectors, each circuit protected by board fuse protection to guard against overcurrent events. Display connectivity covers up to four simultaneous monitors via two HDMI ports and two DisplayPort outputs, with maximum resolution support of 7680 × 4320 (8K). API support includes DirectX 12 Ultimate and OpenGL 4.6. The card ships with a graphics card and user manual, and carries a 3-year warranty. Verified Specifications: • Model: 11335-04-20G • GPU: AMD Radeon RX 7700 XT (RDNA 3) • Stream Processors: 3456 • Ray Accelerators: 54 • Memory: 12 GB GDDR6 • Memory Interface: 192-bit • PCIe Version: 4.0 • Display Outputs: 2× HDMI, 2× DisplayPort • Max Resolution: 7680 × 4320 • DirectX: 12 Ultimate | OpenGL: 4.6 • Power Connectors: 2× 8-pin • Cooler: Dual fan (angular-velocity blades, dual-ball bearings) • Warranty: 3 Years • GTIN: 4895106294288
