Sapphire Pulse RX 6500 XT OC 4GB GDDR6 Graphics Card
MPN 11314-07-20G · Brand SAPPHIRE
The Sapphire Pulse RX 6500 XT OC delivers AMD RDNA 2 performance with 4 GB GDDR6, a 2825 MHz boost clock, and Dual-Fan cooling in a compact 2-slot ATX design — ideal for 1080p gaming builds
Inclusive of GST · GST invoice available
Overview
The Sapphire Pulse RX 6500 XT OC is a compact, energy-efficient discrete graphics card built on AMD's RDNA 2 architecture, manufactured using a 6 nm process node. Designed for users looking to step into dedicated GPU gaming without a large power or physical footprint, it slots into a 2-slot ATX form factor and measures just 194 mm in length — making it compatible with most mid-tower and some small-form-factor cases. At the heart of the card sits the AMD Radeon RX 6500 XT GPU with 1024 stream processors and 16 Ray Accelerators for hardware-accelerated ray tracing. The Sapphire Pulse OC variant pushes the boost clock to up to 2825 MHz, while the typical gaming clock sits at up to 2685 MHz, delivering responsive frame rates in esports and mainstream gaming workloads. Sapphire's Dual-X Cooling Technology uses two fans paired with Intelligent Fan Control, which reduces fan noise during light loads and ramps up cooling when the GPU is under sustained stress. The refined PCB layout is designed to lower board temperatures and reduce component signal noise for stable long-term operation. The card carries 4 GB of GDDR6 memory on a 64-bit bus, running at an effective speed of 18 Gbps, supplemented by 16 MB of AMD Infinity Cache to extend effective memory bandwidth. It supports up to two simultaneous displays at resolutions up to 7680 × 4320 via its HDMI and DisplayPort 1.4 outputs. The interface is PCI-Express 4.0 x4. Power requirements are modest: the card draws 130 W board power, requires a single 6-pin power connector, and AMD recommends a 400 W system PSU. DirectX 12 Ultimate and OpenGL 4.6 support are included, alongside the broader AMD software ecosystem. Verifiable Specifications: - GPU: AMD Radeon RX 6500 XT (6 nm, RDNA 2) - Stream Processors: 1024 - Ray Accelerators: 16 - Boost Clock: Up to 2825 MHz - Game Clock: Up to 2685 MHz - Memory: 4 GB GDDR6, 64-bit bus, 18 Gbps effective - Infinity Cache: 16 MB - Interface: PCI-Express 4.0 x4 - Display Outputs: HDMI, DisplayPort 1.4 (max 2 displays) - Max Resolution: 7680 × 4320 - Cooler: Dual Fan (Dual-X Cooling) - Form Factor: 2-slot ATX, 194 × 107 × 40 mm - Power Consumption: 130 W (board power) - Power Connector: 1 × 6-pin - Recommended PSU: 400 W - DirectX: 12 Ultimate | OpenGL: 4.6 - Warranty: 3 Years

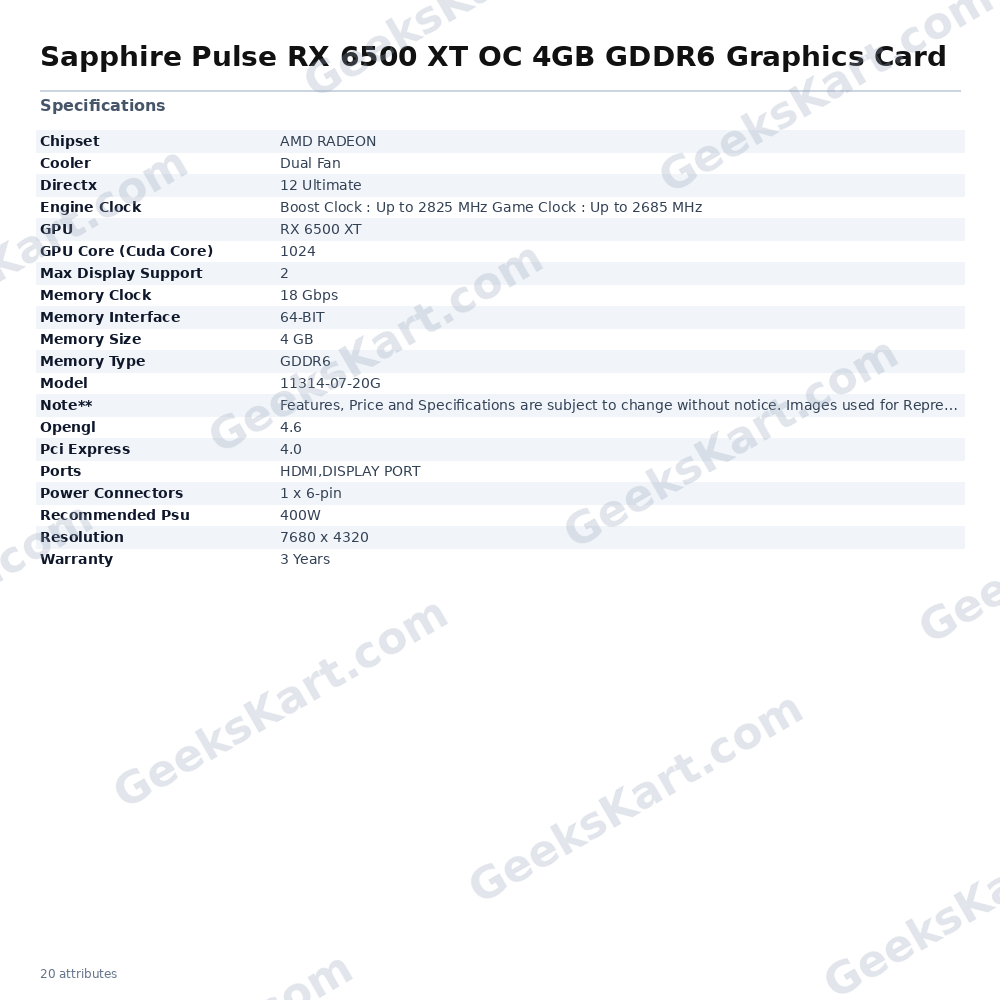

Datasheet
| Memory Type | GDDR6 |
|---|---|
| Warranty | 3 Years |
| Chipset | AMD RADEON |
| Memory Size | 4 GB |
| GPU | RX 6500 XT |
| Memory Clock | 18 Gbps |
| Recommended PSU | 400W |
| Resolution | 7680 x 4320 |
| Model | 11314-07-20G |
| Ports | HDMI,DISPLAY PORT |
| Cooler | Dual Fan |
| Note** | Features, Price and Specifications are subject to change without notice. Images used for Representation Purpose Only |
| Opengl | 4.6 |
| Directx | 12 Ultimate |
| Pci Express | 4.0 |
| Engine Clock | Boost Clock : Up to 2825 MHz Game Clock : Up to 2685 MHz |
| Memory Interface | 64-BIT |
| Power Connectors | 1 x 6-pin |
| Max Display Support | 2 |
| GPU Core (Cuda Core) | 1024 |
