SAPPHIRE Radeon Nitro Plus RX 9070 XT OC 16GB AMD Graphic Card

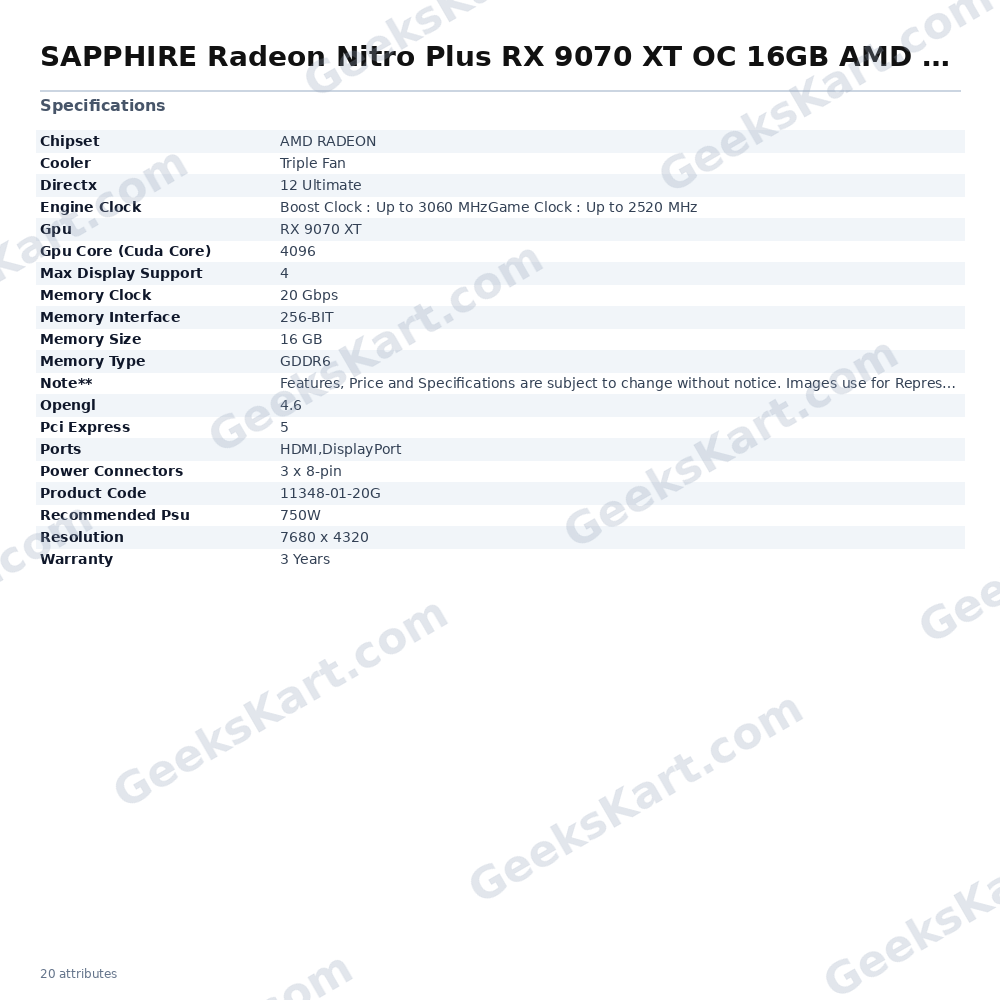

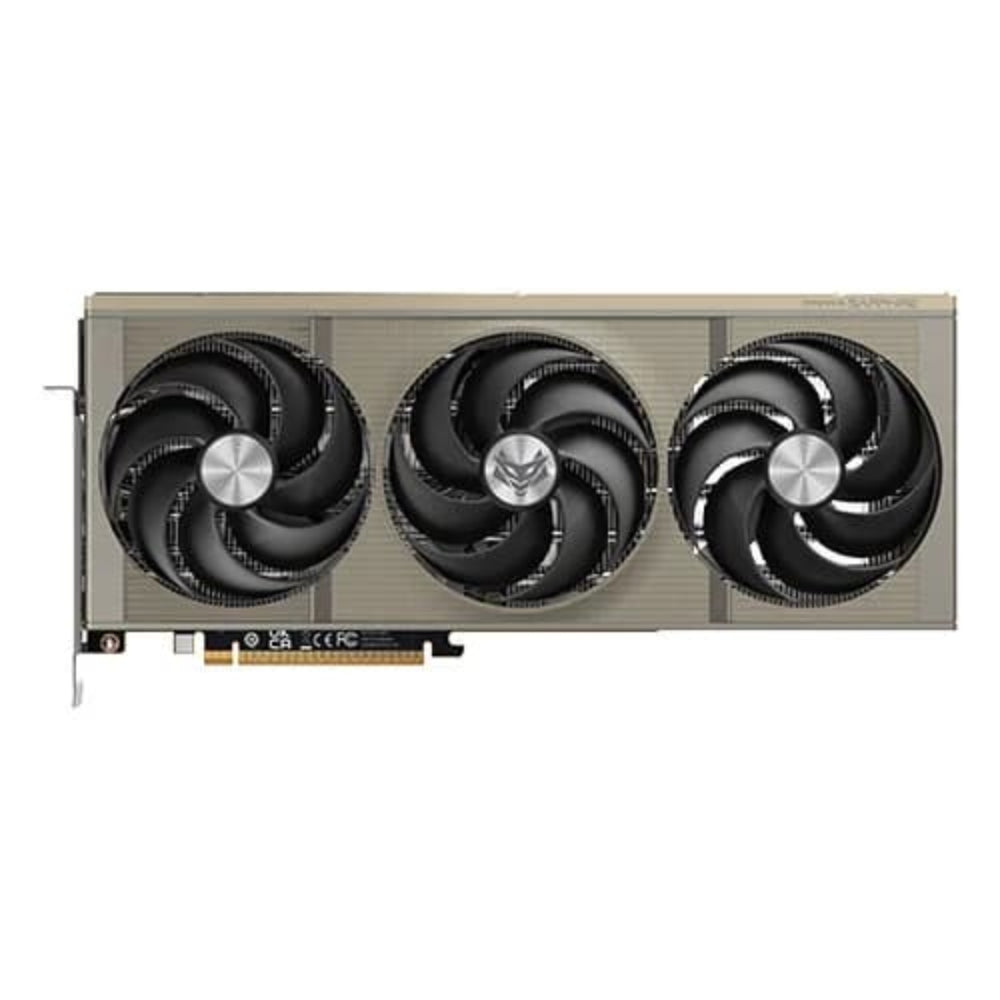

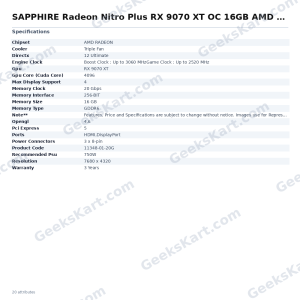

The Sapphire Radeon Nitro+ RX 9070 XT OC 16GB is a high-performance graphics card built on AMD’s RDNA 4 architecture, designed to handle demanding workloads including modern gaming, content creation, and compute-intensive tasks. Sapphire’s Nitro+ line brings together a refined cooling solution and premium build materials in a package that delivers consistent, sustained performance. At the heart of the card sits the AMD Radeon RX 9070 XT GPU with 4096 stream processors and 64 Ray Accelerators, enabling hardware-accelerated ray tracing. The engine runs at a boost clock of up to 3060 MHz and a game clock of up to 2520 MHz, both achievable thanks to the Nitro+ OC factory tune. Sixteen gigabytes of GDDR6 memory sit on a 256-bit bus running at 20 Gbps effective speed, delivering 640 GB/s of memory bandwidth — ample headroom for high-resolution textures at resolutions up to 7680×4320 (8K). The card connects via PCIe 5.0 and supports up to four simultaneous displays via HDMI and DisplayPort outputs. Sapphire equips the Nitro+ with a triple-fan AeroCurve cooler that uses dual ball-bearing fans rated for approximately 85% longer lifespan than sleeve-bearing alternatives. The heatsink assembly employs optimised composite heatpipes and a Free Flow fin module to channel airflow efficiently. Honeywell PTM7950 phase-change thermal interface material sits between the GPU die and the heatsink base, maximising heat transfer at the source. An Integrated Cooling Module ensures direct contact with memory modules and VRMs simultaneously. The card’s structure features a cold-rolled steel frame and FrameDefense box-like enclosure that protect internal components during handling and installation. A Quick Connect MagniPlate magnetic backplate clips on securely, while the STEALTH hidden power connector routes the 3×8-pin power cables out of sight. The Fan Quick Connect system allows individual fan replacement without returning the whole card. An L-shaped GPU support bracket prevents PCIe slot sag. For aesthetics, an ARGB light bar with a 3-pin motherboard sync header lets users co-ordinate lighting via Sapphire TriXX software or their motherboard’s RGB ecosystem. The 12-layer, 2 oz copper high-TG PCB supports the card’s digital power delivery system, and built-in fuse protection on the PCIe power connectors guards against power-surge damage. Verified Specifications: • GPU: AMD Radeon RX 9070 XT (RDNA 4) • Stream Processors: 4096 • Ray Accelerators: 64 • Boost Clock: up to 3060 MHz | Game Clock: up to 2520 MHz • Memory: 16 GB GDDR6, 256-bit bus, 20 Gbps effective • PCI Express: Gen 5 • Outputs: HDMI + DisplayPort (max 4 displays) • Max Resolution: 7680×4320 • DirectX: 12 Ultimate | OpenGL: 4.6 • Power Connectors: 3×8-pin | Recommended PSU: 750 W • Cooler: Triple fan (AeroCurve dual ball-bearing) • Warranty: 3 years • Product Code: 11348-01-20G
