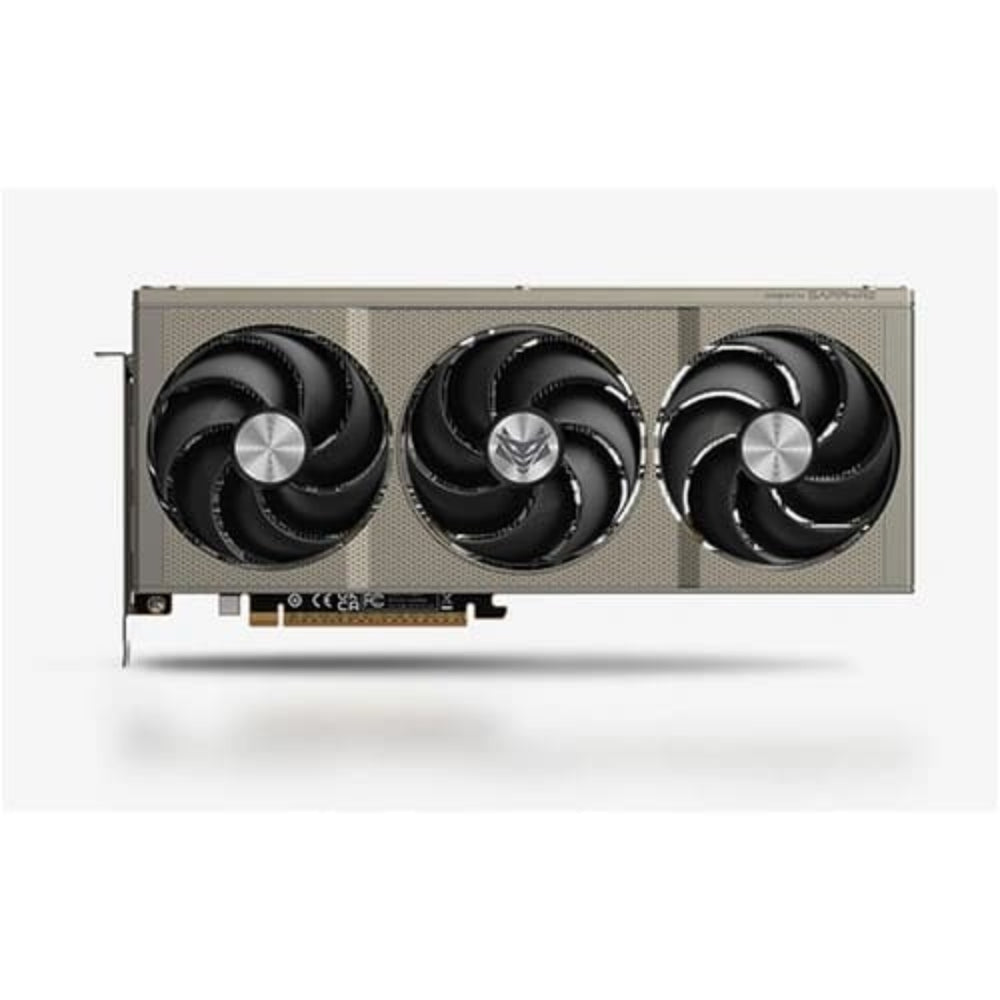

SAPPHIRE Radeon Nitro+ RX 9060 XT OC 16GB AMD Graphic Card

The Sapphire Radeon Nitro+ RX 9060 XT OC 16GB is a premium AMD RDNA 4-architecture graphics card built for high-fidelity gaming and content creation. Based on the AMD Radeon RX 9060 XT GPU, it features 2048 stream processors and 32 ray accelerators, enabling capable ray-traced rendering alongside traditional rasterisation workloads. Powered by 16 GB of GDDR6 memory across a 128-bit interface running at an effective 20 Gbps, the card delivers smooth frame delivery at 1440p and capable 4K output up to 7680 × 4320 resolution. The Nitro+ OC variant ships with a boost clock of up to 3320 MHz and a game clock of up to 2780 MHz, both above AMD’s reference specification, courtesy of Sapphire’s digital power design and overclocking-tuned PCB. Cooling is handled by a triple-fan array using Sapphire’s AeroCurve fan blades, which are designed to reduce air friction while maintaining low noise levels. Dual-ball-bearing fans are rated for an approximately 85% longer lifespan compared with sleeve-bearing alternatives. Heat is transferred via optimised composite heatpipes to a heatsink served by Sapphire’s Free Flow axial airflow design. Between the GPU die and the heatsink sits Honeywell PTM7950 thermal interface material, chosen for its high thermal conductivity in GPU applications. The integrated cooling module maintains direct contact with the GPU, VRAM, and VRMs simultaneously. The structural package includes a FrameDefense box-frame enclosure for rigidity, a full-coverage all-aluminium backplate, and an L-shaped GPU support bracket to prevent PCIe slot sag. Fans are individually serviceable via Fan Quick Connect, secured with a single screw each, so a replacement fan can be dispatched without returning the entire card. Display connectivity consists of HDMI and DisplayPort 2.1a outputs supporting a maximum of three simultaneous displays. The card connects via PCIe 5.0 and requires a single 8-pin power connector with a recommended PSU of 450 W. Built-in fuse protection guards the external PCIe power circuit. ARGB lighting on the shroud and light bar can be synchronised with a motherboard via the 3-pin external header or controlled independently through Sapphire TriXX software. Key Specifications: • GPU: AMD Radeon RX 9060 XT (RDNA 4) • Stream Processors: 2048 • Ray Accelerators: 32 • Boost Clock: up to 3320 MHz • Game Clock: up to 2780 MHz • Memory: 16 GB GDDR6, 128-bit, 20 Gbps effective • Interface: PCIe 5.0 • Display Outputs: HDMI + DisplayPort 2.1a (max 3 displays) • Max Resolution: 7680 × 4320 • Power Connector: 1 × 8-pin • Recommended PSU: 450 W • DirectX: 12 Ultimate | OpenGL: 4.6 • Cooler: Triple fan (AeroCurve, dual-ball-bearing) • TIM: Honeywell PTM7950 • Model Number: 11350-01-20G • Warranty: 3 years
