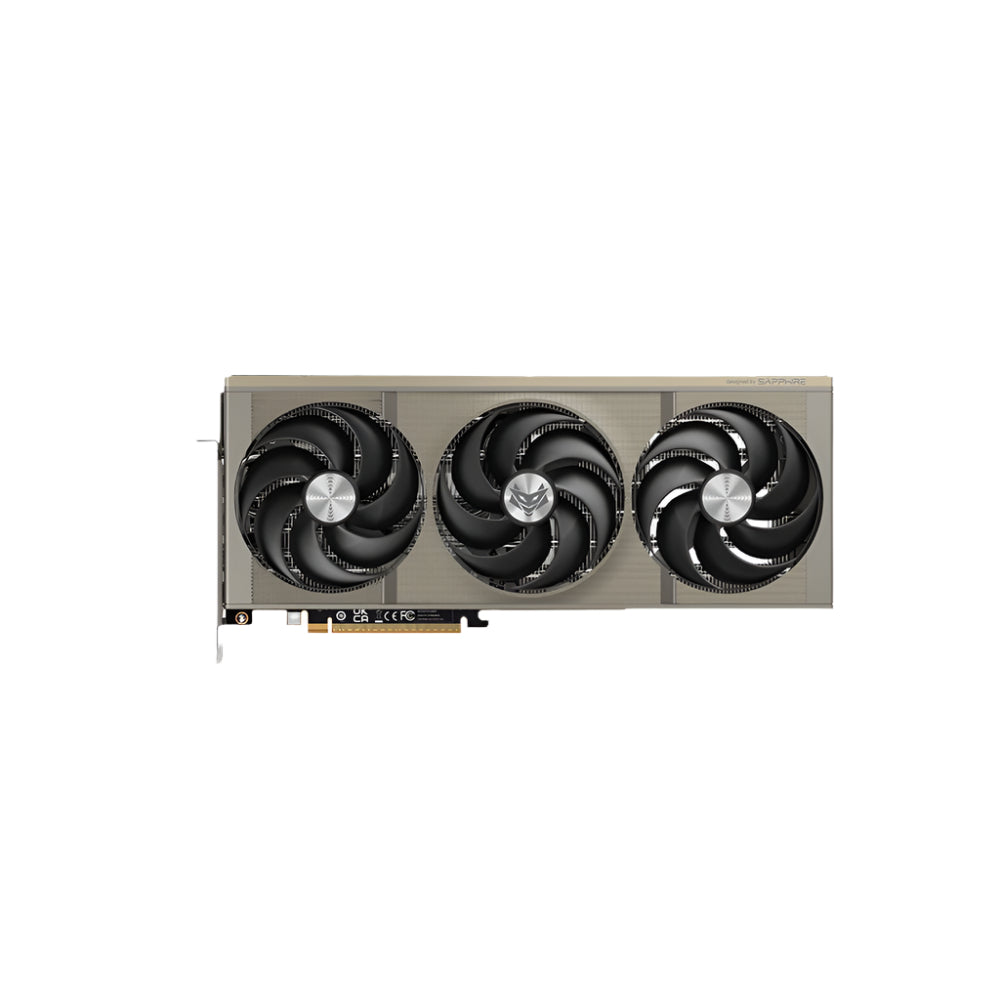

SAPPHIRE Radeon Nitro+ RX 9070 XT 16GB AMD Graphic Card

The Sapphire Radeon Nitro+ RX 9070 XT 16GB is a high-performance desktop graphics card built on AMD’s RDNA 4 architecture. It is designed for demanding 4K gaming, content creation, and GPU-accelerated workloads, combining substantial raw compute throughput with an advanced thermal solution. At the heart of the card sits the AMD Radeon RX 9070 XT GPU (part number 11348-01-20G) with 64 Compute Units housing 4096 Stream Processors, 64 Ray Accelerators (3rd-generation), and 128 AI Accelerators (2nd-generation). The boost clock reaches up to 3060 MHz, while the typical gaming clock runs up to 2520 MHz. Sixteen gigabytes of GDDR6 memory sit on a 256-bit bus with an effective speed of 20 Gbps, backed by 64 MB of Infinity Cache. The card connects via a PCIe 5.0 x16 slot and carries a typical board power of 330 W, requiring a minimum 750 W power supply with a 12V-2×6 (H++) connector — a 3×8-pin adapter is included in the box. Sapphire’s Tri-X cooling system uses three AeroCurve fan blades with dual-ball bearings, which Sapphire states offer approximately 85% greater longevity than sleeve-bearing equivalents and are described as up to 10% quieter than the previous generation. The Integrated Cooling Module maintains direct contact with the GPU die, GDDR6 memory modules, and VRMs for uniform thermal regulation, complemented by optimized composite heatpipes and a Free Flow heatsink fin layout. Honeywell PTM7950 phase-change thermal interface material is used between the die and heatsink for efficient heat transfer. The structural package includes a Cold Rolled Steel Frame, an all-metal backplate with Quick Connect MagniPlate magnetic attachment, and the FrameDefense box-like outer enclosure. The STEALTH Hidden Power Cable routing conceals the 12V-2×6 connector for a cleaner aesthetic. The 12-layer, 2 oz copper, high-TG PCB supports the 16-phase digital power design with built-in fuse protection on the external PCIe power circuit. Individual fans can be removed and replaced with a single screw, with Sapphire’s Fan Quick Connect service available as a replacement path. Video output consists of two HDMI and two DisplayPort 2.1a ports, supporting up to four simultaneous displays at resolutions up to 7680×4320. AMD feature support includes FSR 4 with AI upscaling, AMD Fluid Motion Frames 2, AMD HYPR-RX, Radeon Anti-Lag 2, AV1 hardware encode/decode, FreeSync, DirectX 12 Ultimate, and AMD Noise Suppression. ARGB lighting is synchronisable with motherboard headers via a 3-pin 5V header and controllable through Sapphire’s TriXX software. Verified Specifications: — GPU: AMD Radeon RX 9070 XT (RDNA 4), 64 CUs, 4096 SPs — Boost / Game Clock: up to 3060 MHz / up to 2520 MHz — Memory: 16 GB GDDR6, 256-bit, 20 Gbps effective, 64 MB Infinity Cache — TDP: 330 W typical board power — Interface: PCIe 5.0 x16 — Outputs: 2× HDMI, 2× DisplayPort 2.1a (max 4 displays, up to 8K) — Dimensions: 330.8 × 128.5 × 65.68 mm (3.2-slot ATX) — PSU requirement: 750 W minimum — Warranty: 3 years — Bundled accessories: L-Shape GPU support bracket, 3-pin 5V ARGB cable, magnetic backplate, 12V-2×6 to 3×8-pin power adapter — OS support: Windows 10 / 11 (64-bit), Linux
