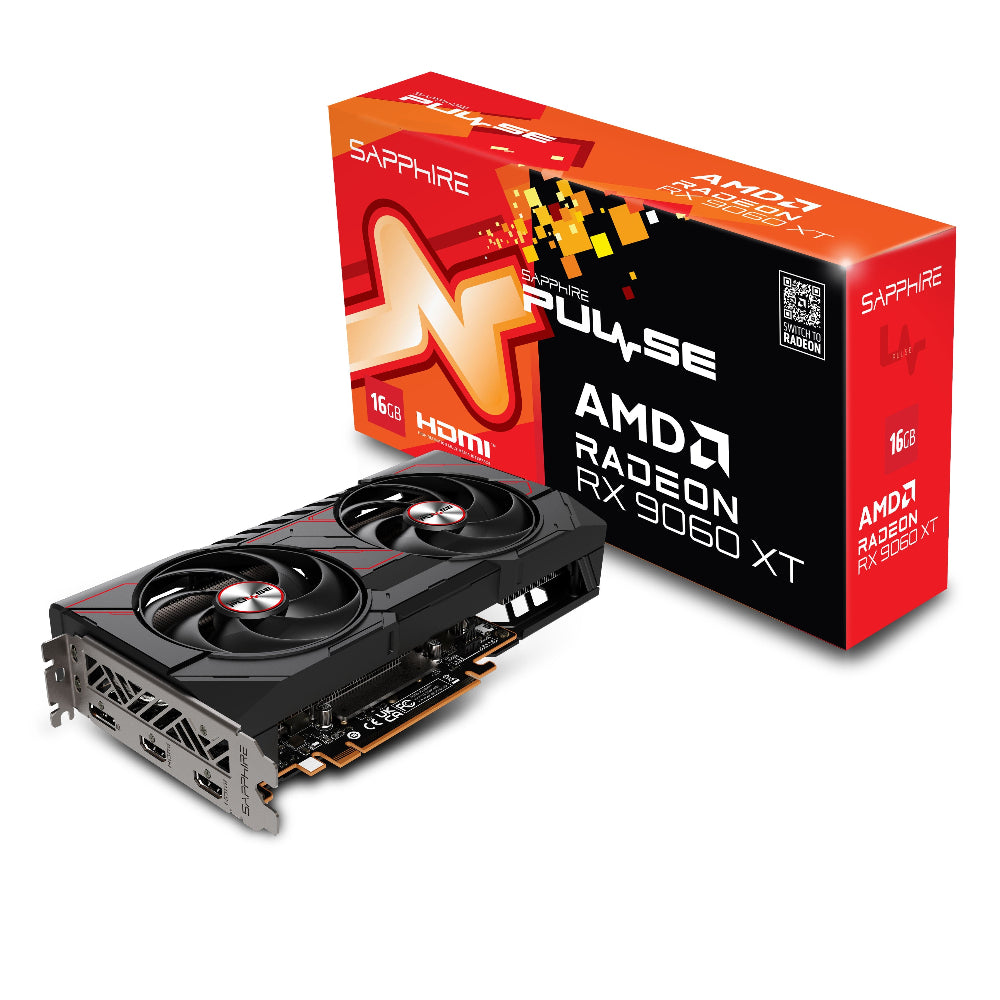

SAPPHIRE Radeon Pulse RX 9060 XT OC 16GB AMD Graphic Card

The Sapphire Pulse Radeon RX 9060 XT OC 16GB is a 1440p-class graphics card built on AMD’s RDNA 4 architecture. With 2,048 stream processors across 32 compute units, a boost clock of up to 3,290 MHz, and a game clock of up to 2,700 MHz, it delivers responsive, high-refresh-rate performance in modern titles. The 16 GB GDDR6 framebuffer on a 128-bit bus runs at 20 Gbps effective, supported by 32 MB of AMD Infinity Cache to broaden effective memory bandwidth where it matters most. Sapphire’s Dual-X cooling solution combines AeroCurve fan blades, a Free Flow heatsink fin module, and optimised composite heatpipes that spread heat evenly across the entire cooler. The Integrated Cooling Module maintains direct contact with the GPU die, GDDR6 memory modules, and VRMs simultaneously, helping sustain stable thermals under extended gaming or creative workloads. Honeywell PTM7950 phase-change thermal interface material sits between the die and heatsink, a premium TIM choice well-regarded for its thermal conductivity characteristics. The card’s FrameDefense rigid outer frame protects internal components during installation and everyday handling, while an all-aluminium backplate adds structural rigidity and contributes to rear-side heat dissipation. Built-in fuse protection on the external PCIe power connector guards against overcurrent events. A high-density, 6-layer, 2 oz copper, high-TG PCB underpins the 9-phase digital power design, delivering precise voltage regulation suited to both stock operation and light overclocking via Sapphire’s TriXX utility. Display connectivity covers up to three simultaneous monitors through two HDMI and one DisplayPort 2.1a output, each capable of driving resolutions up to 7,680 × 4,320. AMD software features include FSR 4 with AI Upscaling, AMD Fluid Motion Frames 2, Radeon Anti-Lag 2, AV1 encode/decode, FreeSync, DirectX 12 Ultimate, and the full AMD Adrenalin Edition driver suite. The card operates on Windows 10 64-bit, Windows 11 64-bit, and Linux. Verified Specifications: • GPU: AMD Radeon RX 9060 XT (RDNA 4) • Stream Processors: 2,048 | Compute Units: 32 • Boost Clock: up to 3,290 MHz | Game Clock: up to 2,700 MHz • Memory: 16 GB GDDR6, 128-bit bus, 20 Gbps effective • Infinity Cache: 32 MB | Ray Accelerators: 32 | AI Accelerators: 64 • Interface: PCI-Express 5.0 x16 • Outputs: 2× HDMI, 1× DisplayPort 2.1a (max 7,680×4,320) • Max Displays: 3 | Form Factor: 2.3-slot ATX (240 × 124 × 46.1 mm) • Typical Board Power: 170 W | Recommended PSU: 450 W minimum • Power Connector: 1× 8-pin • BIOS: UEFI | Part Number: 11350-03-20G • OS Support: Windows 10/11 (64-bit), Linux
