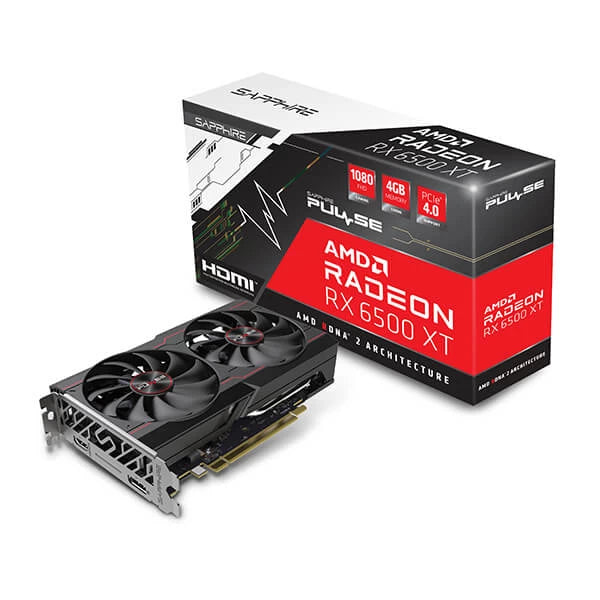

Features of SAPPHIRE Radeon RX 6500 XT Pulse 4GB AMD Graphic Card
The SAPPHIRE PULSE AMD Radeon™ RX 6500 XT Graphics Card runs on the powerful Dual-X Cooling Technology coupled with Intelligent Fan Control to keep temperatures low and fan noise low. The refined PCB design delivers stable, reliable, and steady performance, which efficiently lowers PCB temperature and component signal noise.
Fuse Protection
In order to protect your card, the SAPPHIRE cards have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe
Dual-X Cooling
SAPPHIRE’s acclaimed Dual-X Cooling is powered by two massive yet silent fans and state-of-the-art radiator design. The new form of hybrid fan blades means greater airflow and superior heatsink coverage at lower noise compared to standard cooling designs.
Intelligent Fan Control
Fan speed is intelligently controlled to keep the GPU, memory, PWM IC and other components as low as possible in temperature to balance performance, and fan noise.
Precision fan control
Standard industry fans may have up to 10% difference between fan rotation cycles (RPM). The Fan IC Control on SAPPHIRE graphics cards reduce differential at approximately 3%. This up to 70% improvement on accuracy ensures that cooling and noise performance of every graphics card is up to scratch.
Back Plate
The all-aluminum back plate provides additional rigidity that guarantees nothing bends and dust stays out. It also helps cool your card by increasing heat dissipation
Specifications of SAPPHIRE Radeon RX 6500 XT Pulse 4GB AMD Graphic Card
| GPU | AMD Radeon™ RX 6500 XT Graphics Card |
| 6nm GPU | |
| AMD RDNA™ 2 Architecture | |
| Stream Processors | 1024 |
| Infinity Cache | 16MB |
| Ray Accelerators | 16 |
| Memory Size/Bus | 4GB GDDR6 |
| Displays | Maximum 2 Displays |
| Resolution | HDMI™: 7680×4320 |
| DisplayPort1.4: 7680×4320 | |
| Interface | PCI-Express 4.0 |
| Output | 1x HDMI |
| 1x DisplayPort | |
| BIOS Support | UEFI |
| Game Index | 1080P |
| Sapphire Features | Premium Digital Power Design |
| Fuse Protection | |
| Dual-X Cooling Technology | |
| Intelligent Fan Control | |
| Precision Fan Control | |
| Metal Backplate | |
| TriXX Supported | |
| TriXX Boost | |
| AMD Features | AMD RDNA 2 Gaming Architecture |
| DirectX 12 Ultimate support | |
| AMD Smart Access Memory | |
| AMD Infinity Cache | |
| 6nm GPU | |
| PCI Express 4.0 support | |
| AMD FreeSync Technology | |
| DisplayPort 1.4 with DSC | |
| HDMI support | |
| Video Streaming up to 8K | |
| AMD Radeon VR Ready Premium | |
| AMD FidelityFX | |
| AMD Radeon Image Sharpening | |
| AMD Radeon Anti-Lag | |
| AMD Radeon Software | |
| Game Driver Optimizations | |
| Cooling | Dual Fans |
| Form Factor | 2 slot, ATX |
| Dimension: 194(L)X 120(W)X 39.8(H)mm | |
| Power Consumption | 130W (Board Power) |
| OS |
Linux®, Windows® 7*, Windows® 10, and Windows 11 64-bit operating system required
|
|
*Does not support all features including but not limited to Hardware Raytracing
|
|
| System Requirement | Minimum 400 Watt Power Supply |
| 1 x 6-pin Power Connector. | |
|
PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
|
|
| Minimum 8GB of system memory. 16GB recommended. |
