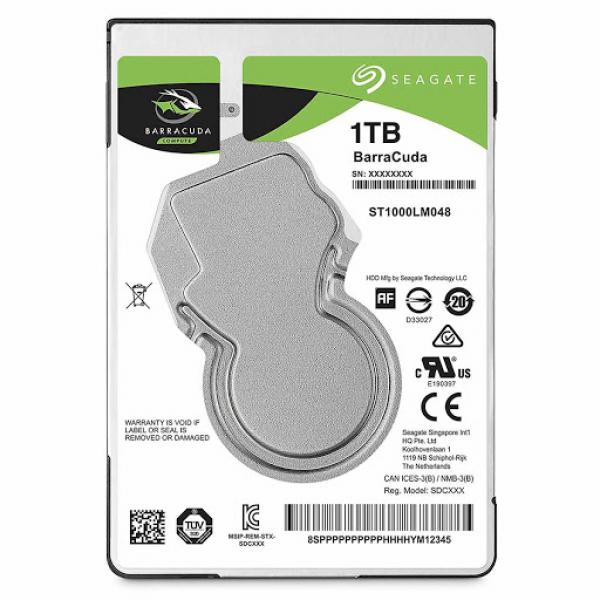

SEAGATE Barracuda 1TB 5400RPM Laptop Internal HDD
MPN SEAGATE-BARRACUDA-1TB5400RPM-LAPTOP-HARDDRIVE · Brand Seagate
Features of SEAGATE Barracuda 1TB 5400RPM Laptop Internal HDD Broadest 2.5-inch hard drive portfolio with Seagate Barracuda up to 1TB capacity and both 7mm and 15mm form factors suitable for a variety of compute applications. Thinnest and lightest 2.5-inch hard drive with up to 1TB storage in a 7mm z-height, providing seamless upgrades of thin and light laptops and smaller form factor systems Fast data rates of up to 140MB/s enables superior PC end-user experience and snappier file transfers. 2
Inclusive of GST · GST invoice available
Overview
Features of SEAGATE Barracuda 1TB 5400RPM Laptop Internal HDD
- Broadest 2.5-inch hard drive portfolio with Seagate Barracuda up to 1TB capacity and both 7mm and 15mm form factors suitable for a variety of compute applications.
- Thinnest and lightest 2.5-inch hard drive with up to 1TB storage in a 7mm z-height, providing seamless upgrades of thin and light laptops and smaller form factor systems
- Fast data rates of up to 140MB/s enables superior PC end-user experience and snappier file transfers.
- 2.5-inch, 15mm z-height hard drives provide 1TB in capacity, offering the highest-capacity 2.5-inch hard drives available for external or all-in-one storage.
- 15mm z-height enables slimmer all-in-one desktop PC drives while helping reduce system heat generation and vibration.
- Low startup current configurations for 1TB drives enable use in legacy low-current systems like USB-2 external boxes, while simultaneously lowering power consumption.
- 1TB drives can store more than 1.25 million songs and 600 hours of HD video.

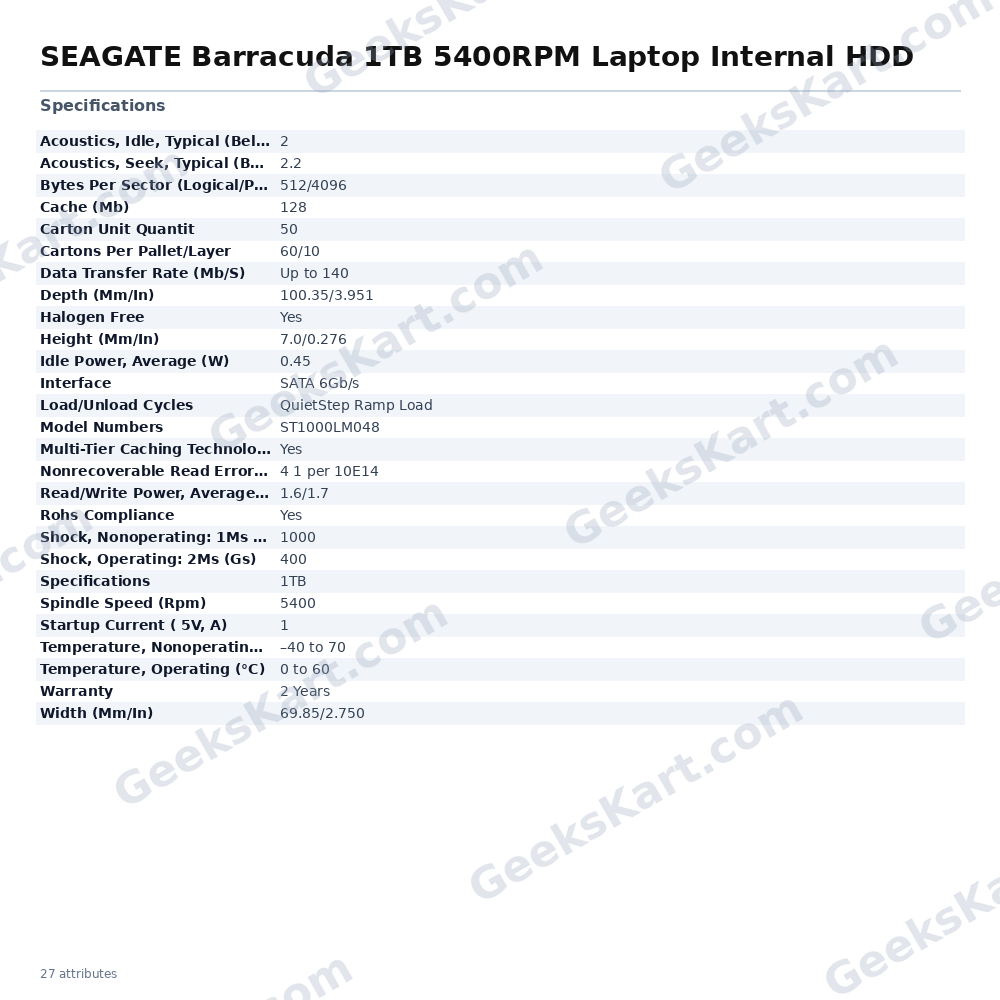

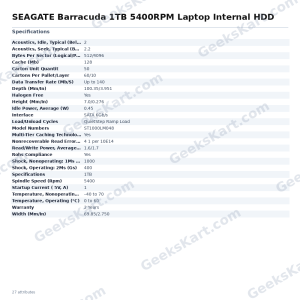

Specifications of SEAGATE Barracuda 1TB 5400RPM Laptop Internal HDD
| Specifications | 1TB |
| Model Numbers | ST1000LM048 |
| Bytes per Sector (logical/physical) | 512/4096 |
| Interface | SATA 6Gb/s |
| Data Transfer Rate (MB/s) | Up to 140 |
| Cache (MB) | 128 |
| Spindle Speed (RPM) | 5400 |
| Load/Unload Cycles | QuietStep Ramp Load |
| Nonrecoverable Read Errors per Bits Read, Max | 4 1 per 10E14 |
| Startup Current ( 5V, A) | 1 |
| Read/Write Power, Average (W) | 1.6/1.7 |
| Idle Power, Average (W) | 0.45 |
| Temperature, Operating (°C) | 0 to 60 |
| Temperature, Nonoperating (°C) | –40 to 70 |
| Shock, Operating: 2ms (Gs) | 400 |
| Shock, Nonoperating: 1ms (Gs) | 1000 |
| Acoustics, Idle, Typical (bels—sound power) | 2 |
| Acoustics, Seek, Typical (bels—sound power) | 2.2 |
| Height (mm/in) | 7.0/0.276 |
| Width (mm/in) | 69.85/2.750 |
| Depth (mm/in) | 100.35/3.951 |
| Carton Unit Quantit | 50 |
| Cartons Per Pallet/Layer | 60/10 |
| Multi-Tier Caching Technology | Yes |
| Halogen Free | Yes |
| RoHS Compliance | Yes |
| Warranty | 2 Years |
| Note | ***Features, Price and Specifications are subject to change without notice |
Datasheet
| Warranty | 2 Years |
|---|---|
| Interface | SATA 6Gb/s |
| Cache (Mb) | 128 |
| Halogen Free | Yes |
| Depth (Mm/In) | 100.35/3.951 |
| Model Numbers | ST1000LM048 |
| Width (Mm/In) | 69.85/2.750 |
| Height (Mm/In) | 7.0/0.276 |
| Specifications | 1TB |
| Rohs Compliance | Yes |
| Load/Unload Cycles | QuietStep Ramp Load |
| Carton Unit Quantit | 50 |
| Spindle Speed (Rpm) | 5400 |
| Idle Power, Average (W) | 0.45 |
| Cartons Per Pallet/Layer | 60/10 |
| Startup Current ( 5V, A) | 1 |
| Data Transfer Rate (Mb/S) | Up to 140 |
| Shock, Operating: 2Ms (Gs) | 400 |
| Temperature, Operating (°C) | 0 to 60 |
| Multi-Tier Caching Technology | Yes |
| Read/Write Power, Average (W) | 1.6/1.7 |
| Shock, Nonoperating: 1Ms (Gs) | 1000 |
| Temperature, Nonoperating (°C) | –40 to 70 |
| Bytes Per Sector (Logical/Physical) | 512/4096 |
| Acoustics, Idle, Typical (Bels—Sound Power) | 2 |
| Acoustics, Seek, Typical (Bels—Sound Power) | 2.2 |
| Nonrecoverable Read Errors Per Bits Read, Max | 4 1 per 10E14 |
