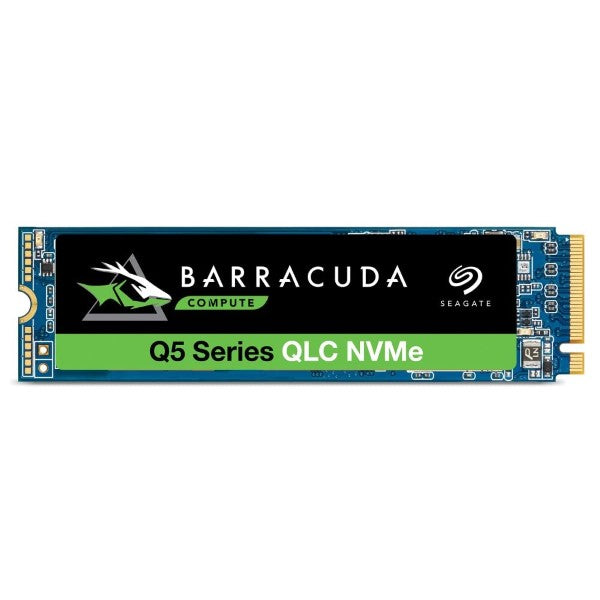

SEAGATE Barracuda Q5 500GB M.2 NVME Gen3 Internal Solid State Drive ( SSD )
MPN SEAGATE-Q5-500GB-M-2-NVME-SSD · Brand Seagate · M.2 2280-S2
Features of SEAGATE Barracuda Q5 500GB M.2 NVME Gen3 Internal Solid State Drive ( SSD ) Upgrade your PC with the Seagate ® BarraCuda ™ Q5 NVMe SSD and unleash performance speeds up to 50× faster than traditional HDDs. Designed with the latest 3D QLC NAND technology, BarraCuda Q5’s slim M.2 2280 form factor provides optimal compatibility and easy plug-and-play installation. FAST: NVMe SSD Drive with speeds up to 2.5x faster than SATA SSDs and up to 50x faster than traditional HDDs; sequential rea
Inclusive of GST · GST invoice available
Overview
Features of SEAGATE Barracuda Q5 500GB M.2 NVME Gen3 Internal Solid State Drive ( SSD )
Upgrade your PC with the Seagate® BarraCuda™ Q5 NVMe SSD and unleash performance speeds up to 50× faster than traditional HDDs. Designed with the latest 3D QLC NAND technology, BarraCuda Q5’s slim M.2 2280 form factor provides optimal
compatibility and easy plug-and-play installation.
FAST: NVMe SSD Drive with speeds up to 2.5x faster than SATA SSDs and up to 50x faster than traditional HDDs; sequential read/write speeds up to 2,400/1,700 MB/s
RESPONSIVE: Upgrade your PC for more efficient downloads, installs and multitasking
VERSATILE: Slim M.2 2280 form factor and multiple capacity options up to 2 TB make for easy upgrades
RELIABLE: Enjoy peace of mind with 1.8M-hours MTBF, limited 3-year warranty, and 1-year Rescue Data Recovery Services
AFFORDABLE: Cost-effective solution for building an efficient system or upgrading your PC SEAGATE SSD.
- Upgrade to cost-effective SSD speeds with next-gen 3D QLC NAND
- Leverage NVMe SSD speeds that are up to 50× faster than traditional hard drives
- Harness high sequential read/write speeds (up to 2,400/1,800 MB/s) for more
responsive downloads, installs and multitasking - Get easy installation and upgrades with a slim M.2 2280 NVMe form factor
- Extend battery life with low active power requirements of up to 3.2W
- Rely on a robust 3-year limited warranty and 1.8M-hours MTBF
- One year of Rescue Data Recovery Services1, offering an industry-leading 95%
success rate against unexpected data loss - Benefit from long-term durability with up to 531 TB total bytes written (TBW)
- Migrate and clone data from old drives with ease using free Seagate DiscWizard™
software tool - Monitor SSD performance, health, and firmware updates with free Seagate
SeaTools™ SSD software tool
Get the Best 500GB SSD from the today!

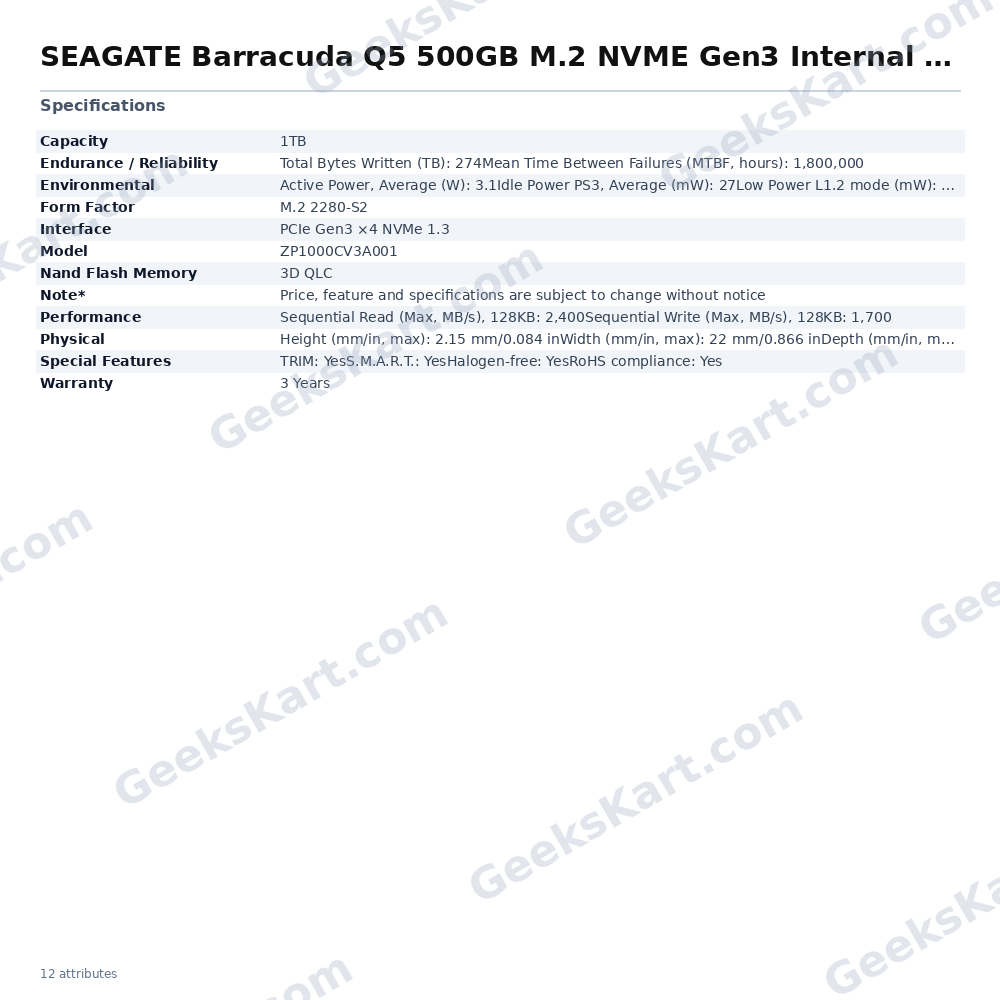

Specifications of SEAGATE Barracuda Q5 500GB M.2 NVME Gen3 Internal Solid State Drive ( SSD )
| Model | ZP1000CV3A001 |
| Capacity | 1TB |
| Model | ZP1000CV3A001 |
| Interface | PCIe Gen3 ×4 NVMe 1.3 |
| NAND Flash Memory | 3D QLC |
| Form Factor | M.2 2280-S2 |
| Performance | Sequential Read (Max, MB/s), 128KB: 2,400 Sequential Write (Max, MB/s), 128KB: 1,700 |
| Endurance / Reliability | Total Bytes Written (TB): 274 Mean Time Between Failures (MTBF, hours): 1,800,000 |
| Environmental | Active Power, Average (W): 3.1 Idle Power PS3, Average (mW): 27 Low Power L1.2 mode (mW): 1.6 |
| Special Features | TRIM: Yes S.M.A.R.T.: Yes Halogen-free: Yes RoHS compliance: Yes |
| Physical | Height (mm/in, max): 2.15 mm/0.084 in Width (mm/in, max): 22 mm/0.866 in Depth (mm/in, max): 80 mm/3.149 in Weight (lb/g): 7 g/0.015 lb |
| Warranty | 3 Years. |
| Note* | Price, feature and specifications are subject to change without notice. |
Datasheet
| Warranty | 3 Years |
|---|---|
| Capacity | 1TB |
| Interface | PCIe Gen3 ×4 NVMe 1.3 |
| Model | ZP1000CV3A001 |
| Note* | Price, feature and specifications are subject to change without notice |
| Physical | Height (mm/in, max): 2.15 mm/0.084 inWidth (mm/in, max): 22 mm/0.866 inDepth (mm/in, max): 80 mm/3.149 inWeight (lb/g): 7 g/0.015 lb |
| Performance | Sequential Read (Max, MB/s), 128KB: 2,400Sequential Write (Max, MB/s), 128KB: 1,700 |
| Environmental | Active Power, Average (W): 3.1Idle Power PS3, Average (mW): 27Low Power L1.2 mode (mW): 1.6 |
| Special Features | TRIM: YesS.M.A.R.T.: YesHalogen-free: YesRoHS compliance: Yes |
| Nand Flash Memory | 3D QLC |
| Endurance / Reliability | Total Bytes Written (TB): 274Mean Time Between Failures (MTBF, hours): 1,800,000 |
| Form Factor | M.2 2280-S2 |
