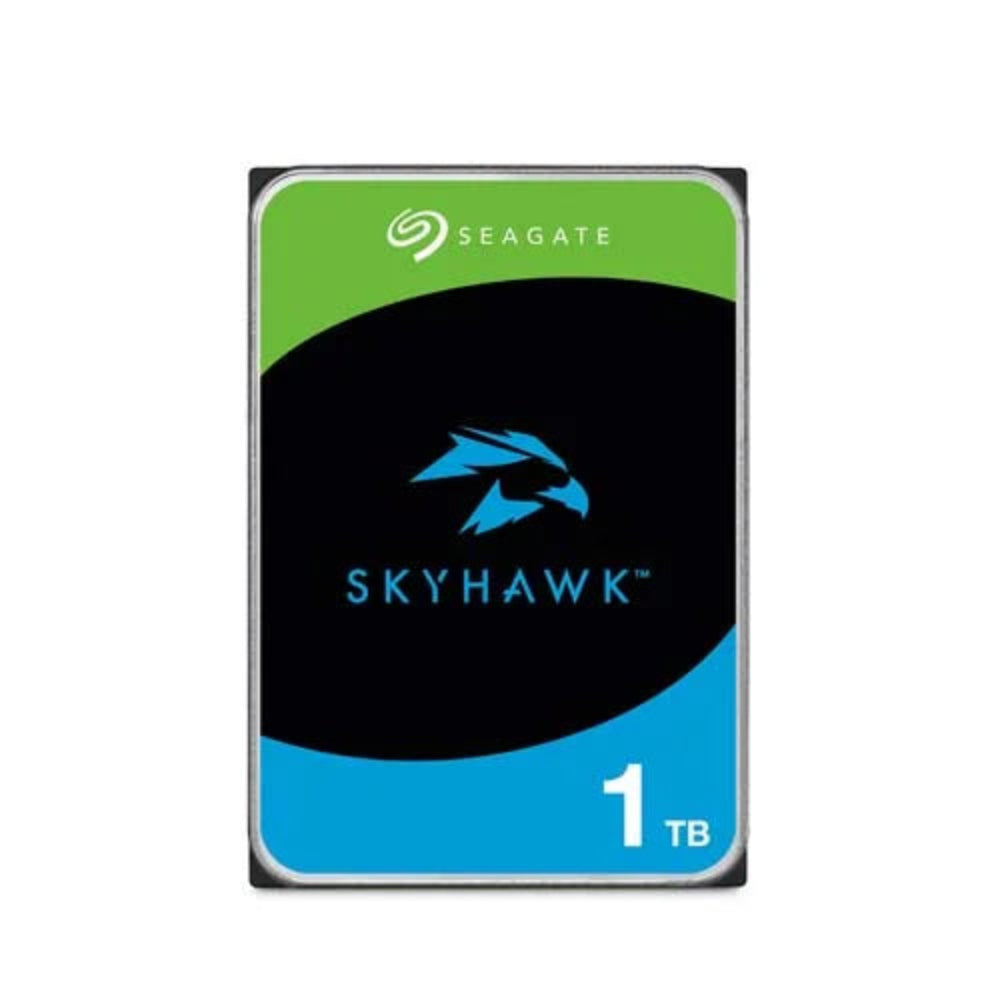

SEAGATE Skyhawk 3.5 Inch 1TB Surveillance Internal HDD
MPN SEAGATE-SKYHAWK-3.5-1TB-SURVEILLANCE-INTERNAL-HDD · Brand Seagate
Features of SEAGATE Skyhawk 3.5 Inch 1TB Surveillance Internal HDD ImagePerfect™ firmware is designed to ensure seamless video footage capture in 24×7 surveillance workloads that record video from 64 HD cameras. SkyHawk Health Management actively helps protect your surveillance storage by focusing on prevention, intervention, and recovery options. Included is RAID RapidRebuild™, which provides 3× faster volume rebuilds over traditional RAID rebuilds. Unparalleled data protection with included 3
Inclusive of GST · GST invoice available
Overview
Features of SEAGATE Skyhawk 3.5 Inch 1TB Surveillance Internal HDD
- ImagePerfect™ firmware is designed to ensure seamless video footage capture in 24×7 surveillance workloads that record video from 64 HD cameras.
- SkyHawk Health Management actively helps protect your surveillance storage by focusing on prevention, intervention, and recovery options. Included is RAID RapidRebuild™, which provides 3× faster volume rebuilds over traditional RAID rebuilds.
- Unparalleled data protection with included 3-year Rescue Data Recovery Services plan, helping protect important video data with Seagate’s in-house data recovery services.
- RV sensors built in allow drives to maintain performance in multi-bay systems, giving customers the flexibility to scale their systems when more storage is needed.
- ATA streaming support enables recordings from up to 64 HD cameras for smooth, uninterrupted footage.
- 1 M hours MTBF, 3-year limited warranty represents an improved total cost of ownership (TCO) with reduced maintenance costs.
- Lower power consumption means a reduction in heat emissions, which improves reliability in surveillance solutions. Tarnish-resistant components help protect drive from environmental elements, increasing field reliability.

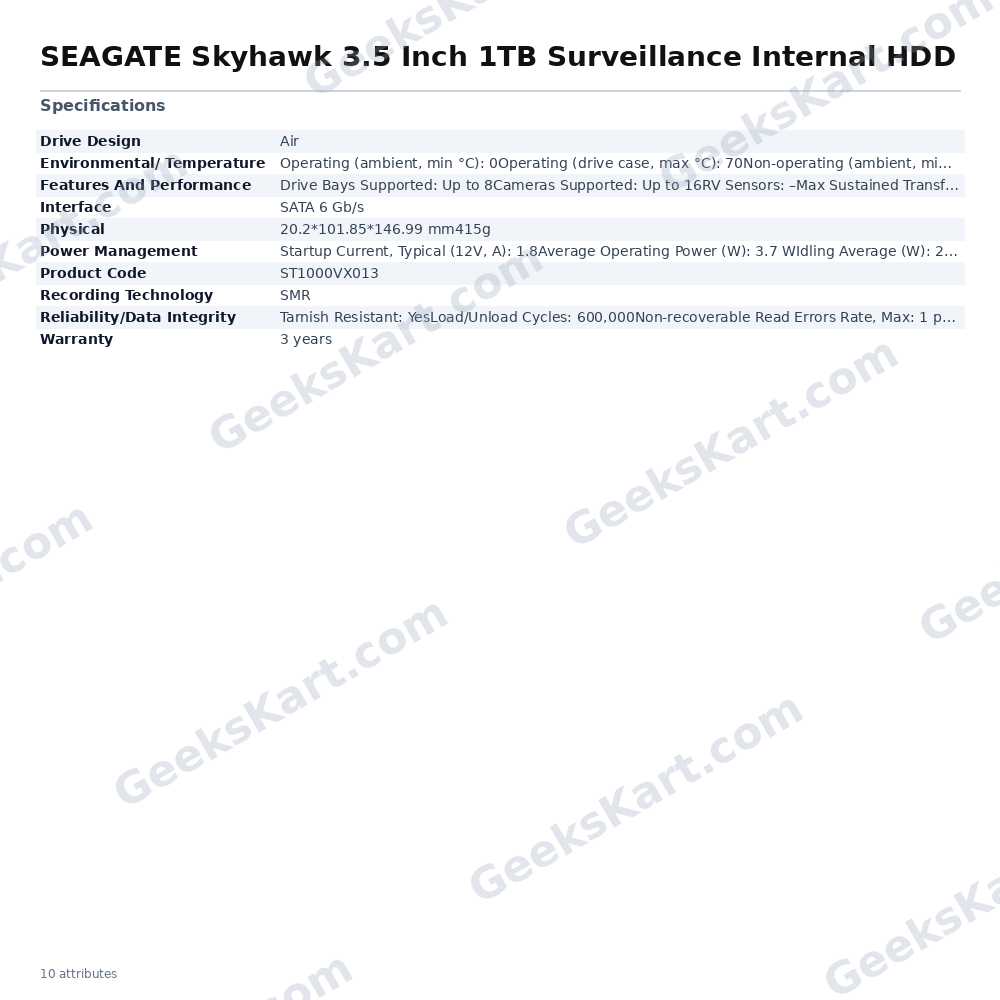

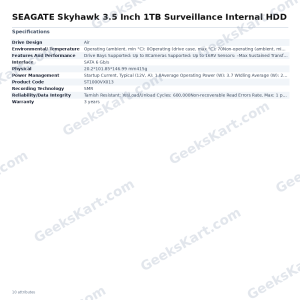

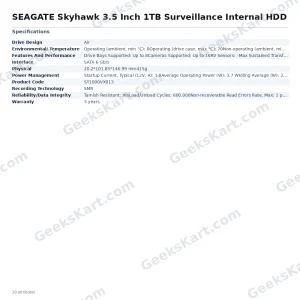

Specifications of SEAGATE Skyhawk 3.5 Inch 1TB Surveillance Internal HDD
| Product Code | ST1000VX013 |
| Interface | SATA 6 Gb/s |
| Recording Technology | SMR |
| Drive Design | Air |
| Features and Performance | Drive Bays Supported: Up to 8 Cameras Supported: Up to 16 RV Sensors: – Max Sustained Transfer Rate OD (MB/s): 180MB/s Cache (MB): 256 |
| Reliability/Data Integrity | Tarnish Resistant: Yes Load/Unload Cycles: 600,000 Non-recoverable Read Errors Rate, Max: 1 per 10E14 Power-On Hours per year: 8,760 Workload Rate Limit (WRL):180 Mean Time Between Failures (MTBF) (hours): 1,000,000 hr |
| Power Management | Startup Current, Typical (12V, A): 1.8 Average Operating Power (W): 3.7 W Idling Average (W): 2.5 W Standby Mode/Sleep Mode, Typical (W): 0.25/0.25 Voltage Tolerance (5 V): ±5% Voltage Tolerance (12 V): ±10% |
| Environmental/ Temperature | Operating (ambient, min °C): 0 Operating (drive case, max °C): 70 Non-operating (ambient, min °C): -40 |
| Physical | 20.2*101.85*146.99 mm 415g |
| Warranty | 3 years |
Datasheet
| Warranty | 3 Years |
|---|---|
| Interface | SATA 6 Gb/s |
| Physical | 20.2*101.85*146.99 mm415g |
| Drive Design | Air |
| Product Code | ST1000VX013 |
| Power Management | Startup Current, Typical (12V, A): 1.8Average Operating Power (W): 3.7 WIdling Average (W): 2.5 WStandby Mode/Sleep Mode, Typical (W): 0.25/0.25Voltage Tolerance (5 V): ±5%Voltage Tolerance (12 V): ±10% |
| Recording Technology | SMR |
| Features And Performance | Drive Bays Supported: Up to 8Cameras Supported: Up to 16RV Sensors: –Max Sustained Transfer Rate OD (MB/s): 180MB/sCache (MB): 256 |
| Environmental/ Temperature | Operating (ambient, min °C): 0Operating (drive case, max °C): 70Non-operating (ambient, min °C): -40 |
| Reliability/Data Integrity | Tarnish Resistant: YesLoad/Unload Cycles: 600,000Non-recoverable Read Errors Rate, Max: 1 per 10E14Power-On Hours per year: 8,760Workload Rate Limit (WRL):180Mean Time Between Failures (MTBF) (hours): 1,000,000 hr |
