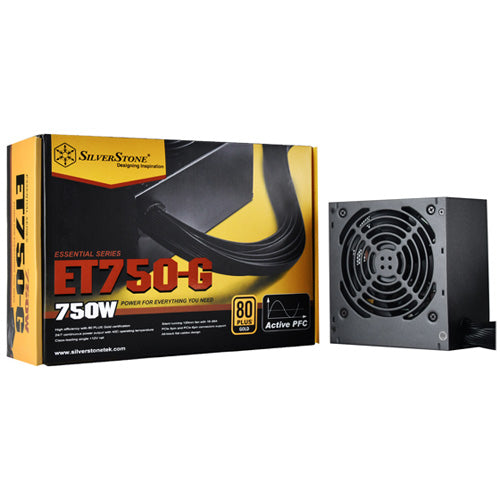

SILVERSTONE SST ET 750 G 750W 80+ Gold Fully Modular ATX 2.0 Power Supply
MPN SILVERSTONE-ET-750W-HG · Brand SilverStone · ATX
Features of SILVERSTONE SST ET 750 G The SILVERSTONE SST ET 750 G is Designed for 80 PLUS Gold level of efficiency to reduce wasted heat and save on electricity 750W Power Supply +12V rail design, perfect for future high-end component upgrades or overclocking The SilverStone Power Supply has to Built-in 120 mm fan has excellent airflow and low noise, perfect for quiet home or office use Flat cables have much greater flexibility to allow for tighter folding and management of cables High efficienc
Inclusive of GST · GST invoice available
Overview
Features of SILVERSTONE SST ET 750 G
- High efficiency with 80 PLUS Gold certification
- 24/7 continuous power output with 40℃ operating temperature
- Class-leading single +12V rail
- Silent running 120mm fan with 18 dBA
- PCIe 8pin and PCIe 6pin connectors support
- All-black flat cables design
- ASUS TUF Gaming Alliance decals & branding (TUF Gaming retail box only)
- Dual EPS 8pin with multiple PCI-E 8 / 6pin connectors support (V1.2)
Get the best 80 Plus Gold computer SMPS price from us today!

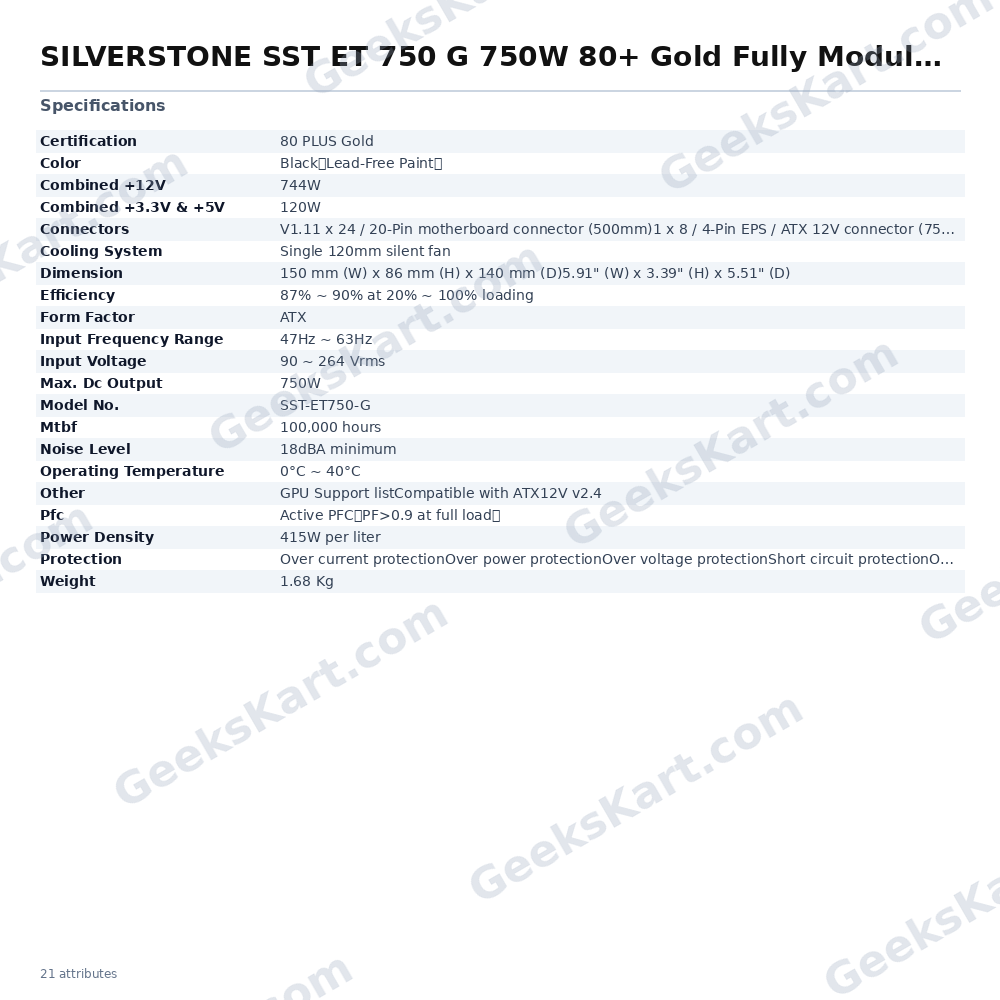

Specifications of SILVERSTONE SST ET 750 G
| Model No. | SST-ET750-G |
| Max. DC Output | 750W |
| Power density | 415W per liter |
| Color | Black（Lead-Free Paint） |
| Combined +3.3V & +5V | 120W |
| Combined +12V | 744W |
| Input Voltage | 90 ~ 264 Vrms |
| Input Frequency Range | 47Hz ~ 63Hz |
| PFC | Active PFC（PF>0.9 at full load） |
| Efficiency | 87% ~ 90% at 20% ~ 100% loading |
| MTBF | 100,000 hours |
| Operating temperature | 0°C ~ 40°C |
| Protection | Over current protection Over power protection Over voltage protection Short circuit protection Over temperature protection |
| Connectors | V1.1 1 x 24 / 20-Pin motherboard connector (500mm) 1 x 8 / 4-Pin EPS / ATX 12V connector (750mm) 4 x 8 / 6-Pin PCIe connector ("500mm / 150mm" x 2) 8 x SATA connector ("500mm / 150mm / 150mm / 150mm" x 2) 3 x 4-Pin Peripheral connector (500mm / 150mm / 150mm) 1 x 4-Pin Floppy connector (500mm / 150mm / 150mm / 150mm) V1.2 1 x 24 / 20-Pin motherboard connector (500mm) *1 x 8-Pin EPS and 1 x 4-Pin + 4-Pin ATX 12V connector (750mm / 150mm) 4 x 8 / 6-Pin PCIe connector ("500mm / 150mm" x 2) 8 x SATA connector ("500mm / 150mm / 150mm / 150mm" x 2) 3 x 4-Pin Peripheral connector (500mm / 150mm / 150mm) 1 x 4-Pin Floppy connector (500mm / 150mm / 150mm / 150mm) |
| Cooling System | Single 120mm silent fan |
| Form factor | ATX |
| Noise Level | 18dBA minimum |
| Dimension | 150 mm (W) x 86 mm (H) x 140 mm (D) 5.91" (W) x 3.39" (H) x 5.51" (D) |
| Weight | 1.68 Kg |
| Certification | 80 PLUS Gold |
| Other | GPU Support list Compatible with ATX12V v2.4 |
Datasheet
| Form Factor | ATX |
|---|---|
| Color | Black |
| Pfc | Active PFC（PF>0.9 at full load） |
| Mtbf | 100,000 hours |
| Other | GPU Support listCompatible with ATX12V v2.4 |
| Weight | 1.68 Kg |
| Dimension | 150 mm (W) x 86 mm (H) x 140 mm (D)5.91" (W) x 3.39" (H) x 5.51" (D) |
| Model No. | SST-ET750-G |
| Connectors | V1.11 x 24 / 20-Pin motherboard connector (500mm)1 x 8 / 4-Pin EPS / ATX 12V connector (750mm)4 x 8 / 6-Pin PCIe connector ("500mm / 150mm" x 2)8 x SATA connector ("500mm / 150mm / 150mm / 150mm" x 2)3 x 4-Pin Peripheral connector (500mm / 150mm / 150mm)1 x 4-Pin Floppy connector (500mm / 150mm / 150mm / 150mm)V1.21 x 24 / 20-Pin motherboard connector (500mm)*1 x 8-Pin EPS and 1 x 4-Pin + 4-Pin ATX 12V connector (750mm / 150mm)4 x 8 / 6-Pin PCIe connector ("500mm / 150mm" x 2)8 x SATA connector ("500mm / 150mm / 150mm / 150mm" x 2)3 x 4-Pin Peripheral connector (500mm / 150mm / 150mm)1 x 4-Pin Floppy connector (500mm / 150mm / 150mm / 150mm) |
| Efficiency | 87% ~ 90% at 20% ~ 100% loading |
| Protection | Over current protectionOver power protectionOver voltage protectionShort circuit protectionOver temperature protection |
| Noise Level | 18dBA minimum |
| Certification | 80 PLUS Gold |
| Combined +12V | 744W |
| Input Voltage | 90 ~ 264 Vrms |
| Power Density | 415W per liter |
| Cooling System | Single 120mm silent fan |
| Max. Dc Output | 750W |
| Combined +3.3V & +5V | 120W |
| Input Frequency Range | 47Hz ~ 63Hz |
| Operating Temperature | 0°C ~ 40°C |
