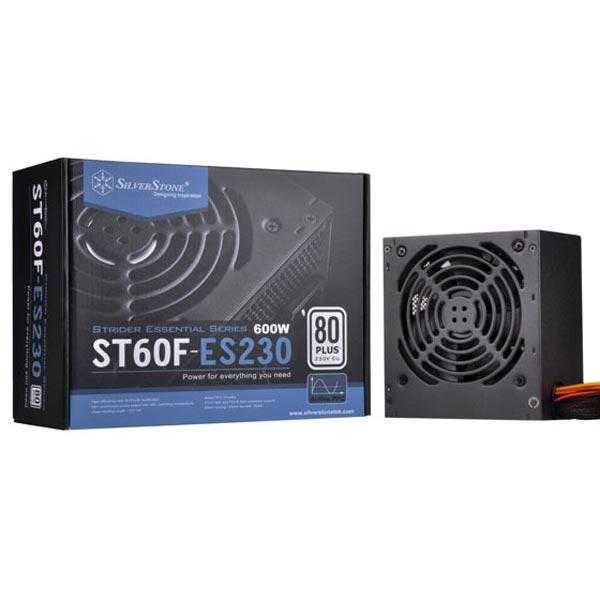

SILVERSTONE SST ST60F ES230 600W 80+ White Non Modular ATX 2.0 Power Supply
MPN SILVERSTONE-ST60F-ES230-WH · Brand SilverStone · ATX
Features of SILVERSTONE SST ST60F ES230 The SILVERSTONE SST ST60F ES230 is 80 PLUS 230V EU 600W Power Supply Designed for 80 PLUS level of efficiency to reduce wasted heat and save on electricity. Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking. The SilverStone Power Supply has Built-in 120mm fan has excellent airflow and low noise, perfect for quiet home or office use. High efficiency with 80 PLUS certification 24/7 continuous power output with 4
Inclusive of GST · GST invoice available
Overview
Features of SILVERSTONE SST ST60F ES230
The SILVERSTONE SST ST60F ES230 is 80 PLUS 230V EU 600W Power Supply
Designed for 80 PLUS level of efficiency to reduce wasted heat and save on electricity.
Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking.
The SilverStone Power Supply has Built-in 120mm fan has excellent airflow and low noise, perfect for quiet home or office use.
- High efficiency with 80 PLUS certification
- 24/7 continuous power output with 40℃ operating temperature
- Class-leading single +12V rail
- Active PFC Circuitry
- PCI-E 8pin and PCI-E 6pin connector support
- Silent running 120mm fan with 18dBA
Get the best 80 Plus White computer SMPS price from us today!

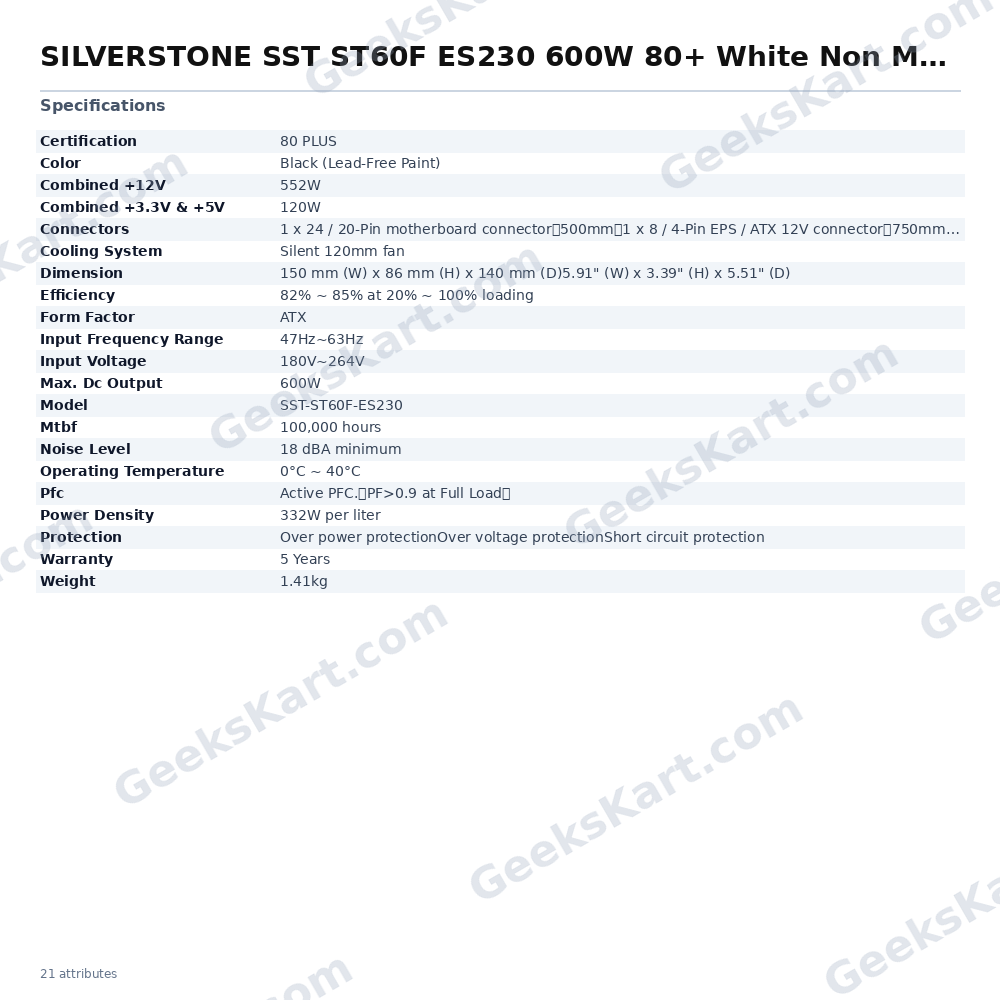

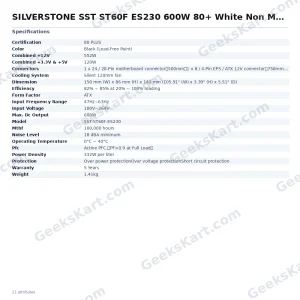

Specifications of SILVERSTONE SST ST60F ES230
| Model No | SST-ST60F-ES230 |
| Max. DC Output | 600W |
| Power density | 332W per liter |
| Color | Black (Lead-Free Paint) |
| Combined +3.3V & +5V | 120W |
| Combined +12V | 552W |
| Input Voltage | 180V~264V |
| Input Frequency Range | 47Hz~63Hz |
| PFC | Active PFC.（PF>0.9 at Full Load） |
| Efficiency | 82% ~ 85% at 20% ~ 100% loading |
| MTBF | 100,000 hours |
| Operating temperature | 0°C ~ 40°C |
| Protection | Over power protection Over voltage protection Short circuit protection |
| Connectors | 1 x 24 / 20-Pin motherboard connector（500mm） 1 x 8 / 4-Pin EPS / ATX 12V connector（750mm） 2 x 8 / 6-Pin PCIE connector（"500mm / 150mm"） 4 x SATA connector（"500mm / 150mm" x 2） 3 x 4-Pin Peripheral connector（500mm / 150mm / 150mm） 1 x 4-Pin Floppy connector（500mm / 150mm / 150mm / 150mm） |
| Cooling System | Silent 120mm fan |
| Form Factor | ATX |
| Noise Level | 18 dBA minimum |
| Dimension | 150 mm (W) x 86 mm (H) x 140 mm (D) 5.91" (W) x 3.39" (H) x 5.51" (D) |
| Weight | 1.41kg |
| Certification | 80 PLUS |
| Warranty | 5 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
Datasheet
| Warranty | 5 Years |
|---|---|
| Form Factor | ATX |
| color | Black |
| Pfc | Active PFC.（PF>0.9 at Full Load） |
| Mtbf | 100,000 hours |
| Weight | 1.41kg |
| Model | SST-ST60F-ES230 |
| Dimension | 150 mm (W) x 86 mm (H) x 140 mm (D)5.91" (W) x 3.39" (H) x 5.51" (D) |
| Connectors | 1 x 24 / 20-Pin motherboard connector（500mm）1 x 8 / 4-Pin EPS / ATX 12V connector（750mm）2 x 8 / 6-Pin PCIE connector（"500mm / 150mm"）4 x SATA connector（"500mm / 150mm" x 2）3 x 4-Pin Peripheral connector（500mm / 150mm / 150mm）1 x 4-Pin Floppy connector（500mm / 150mm / 150mm / 150mm） |
| Efficiency | 82% ~ 85% at 20% ~ 100% loading |
| Protection | Over power protectionOver voltage protectionShort circuit protection |
| Noise Level | 18 dBA minimum |
| Certification | 80 PLUS |
| Combined +12V | 552W |
| Input Voltage | 180V~264V |
| Power Density | 332W per liter |
| Cooling System | Silent 120mm fan |
| Max. Dc Output | 600W |
| Combined +3.3V & +5V | 120W |
| Input Frequency Range | 47Hz~63Hz |
| Operating Temperature | 0°C ~ 40°C |
