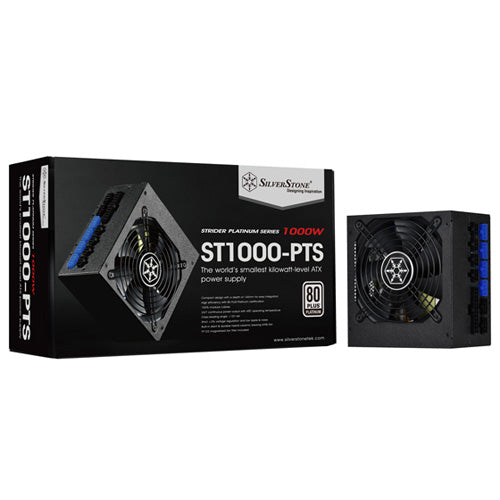

SILVERSTONE ST 1000 PTS 1000W 80+ Platinum Fully Modular ATX 2.0 Power Supply

The SilverStone ST1000-PTS (model SST-ST1000-PTS) is a 1000W fully modular ATX power supply from SilverStone’s Strider Platinum series, certified to the 80 PLUS Platinum efficiency standard. Rated at 89% to 92% efficiency across a 20% to 100% load range, it is engineered to minimise wasted heat and help reduce long-term electricity consumption in demanding desktop systems. A defining characteristic of the ST1000-PTS is its powerful single +12V rail, which delivers up to 996W of combined 12V output — well suited to high-end discrete graphics cards and processor configurations, as well as overclocked builds. The combined +3.3V and +5V rail is rated at 120W, rounding out a balanced power delivery architecture. Cooling is handled by a single 120mm HYB (hybrid) fan, with a minimum noise level of 18 dBA, allowing the unit to operate quietly under typical workloads. The included FF122 magnetised fan filter attaches and removes easily and helps reduce dust ingress over time. Despite its 1000W rating, the ST1000-PTS maintains a compact 140mm depth (150mm W × 86mm H × 140mm D), making it compatible with a wide range of ATX mid-tower and full-tower cases. It supports full-range AC input from 90V to 264V at 47Hz–63Hz, making it suitable for use with Indian mains power supplies. Active PFC achieves a power factor greater than 0.9 at full load. The 100% modular cabling system allows unused cables to be removed entirely for cleaner airflow and easier cable management. The connector set includes one 24/20-pin motherboard cable, two EPS/ATX 12V CPU cables (550mm and 750mm), eight PCIe 8/6-pin connectors across four cables, eight SATA connectors across two cables, six 4-pin peripheral connectors across two cables, and two 4-pin floppy connectors. Onboard protections cover over-power, over-current, over-voltage, over-temperature, under-voltage, and short-circuit conditions. The unit is rated for continuous operation between 0°C and 40°C and carries an MTBF rating of 100,000 hours. It is compatible with ATX12V v2.4. Verified Specifications: Model: SST-ST1000-PTS | Max DC Output: 1000W | Combined +12V: 996W | Combined +3.3V & +5V: 120W | Efficiency: 89–92% (20–100% load) | Certification: 80 PLUS Platinum | Form Factor: ATX | Dimensions: 150mm (W) × 86mm (H) × 140mm (D) | Weight: 1.98kg | Cooling: 120mm HYB fan | Noise: 18 dBA min | Input: 90V–264V, 47–63Hz | PFC: Active (PF >0.9 at full load) | MTBF: 100,000 hours | Power Density: 554W per litre | Colour: Black (lead-free paint)
