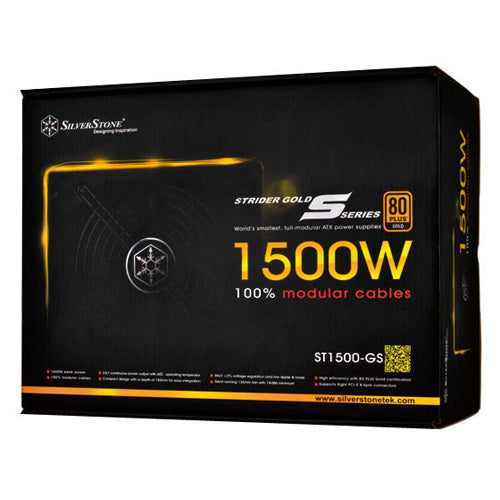

Features of SILVERSTONE ST 1500 GS
The SILVERSTONE ST 1500W Power Supply. Designed for 80 PLUS Gold level of efficiency to reduce wasted heat and save on electricity.
100% modular cable design for use with short cable kit such as SilverStone’s PP05-E or for easy removal in a case with cable routed and tied down.
Flat cables have much greater flexibility to allow for tighter folding and management of cables.
The SilverStone Power Supply 180mm depth sets new standard for high wattage PSUs with modular cables.
±3% regulation and low ripple & noise performance for high stability.
Built-in 135mm fan has excellent airflow and low noise, perfect for quiet home or office use.
- High efficiency with 80 PLUS Gold certification
- 100% modular cables
- 24/7 continuous power output with 40℃ operating temperature
- 1600W peak power
- Strict ±3% voltage regulation and low ripple & noise
- Silent running 135mm fan with 18dBA minimum
- Supports Eight PCI-E 8/6pin connectors
- Compact design with a depth of 180mm for easy integration
Get the best 80 Plus Gold computer SMPS price from us today!

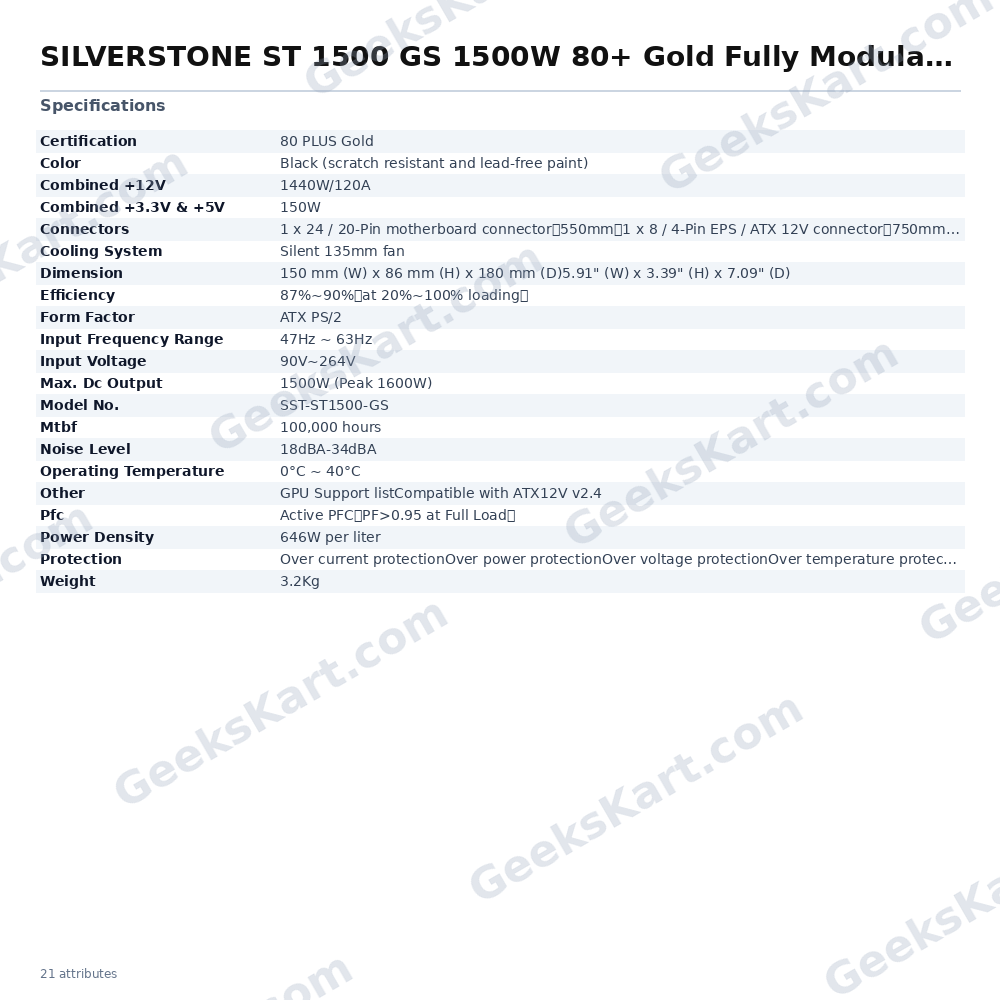

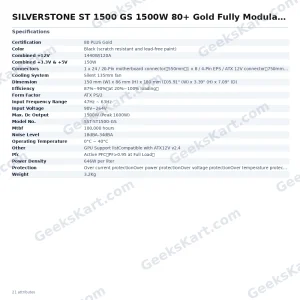

Specifications of SILVERSTONE ST 1500 GS
| Model No. | SST-ST1500-GS |
| Max. DC Output | 1500W (Peak 1600W) |
| Power density | 646W per liter |
| Color | Black (scratch resistant and lead-free paint) |
| Combined +3.3V & +5V | 150W |
| Combined +12V | 1440W/120A |
| Input Voltage | 90V~264V |
| Input Frequency Range | 47Hz ~ 63Hz |
| PFC | Active PFC（PF>0.95 at Full Load） |
| Efficiency | 87%~90%（at 20%~100% loading） |
| MTBF | 100,000 hours |
| Operating temperature | 0°C ~ 40°C |
| Protection | Over current protection Over power protection Over voltage protection Over temperature protection Under voltage protection Short circuit protection No load operation |
| Connectors | 1 x 24 / 20-Pin motherboard connector（550mm） 1 x 8 / 4-Pin EPS / ATX 12V connector（750mm） 1 x 8 / 4-Pin EPS / ATX 12V connector（550mm） 8 x 8 / 6-Pin PCIE connector（”550mm / 150mm” x4） 16 x SATA connector（”600mm / 150mm / 150mm / 150mm” x4） 6 x 4-Pin Peripheral connector （”600mm / 150mm / 150mm” x 2） 2 x 4-Pin Floppy connector（”600mm / 150mm / 150mm / 150mm” x 2） |
| Cooling System | Silent 135mm fan |
| Form factor | ATX PS/2 |
| Noise Level | 18dBA-34dBA |
| Dimension | 150 mm (W) x 86 mm (H) x 180 mm (D) 5.91″ (W) x 3.39″ (H) x 7.09″ (D) |
| Weight | 3.2Kg |
| Certification | 80 PLUS Gold |
| Other | GPU Support list Compatible with ATX12V v2.4 |
