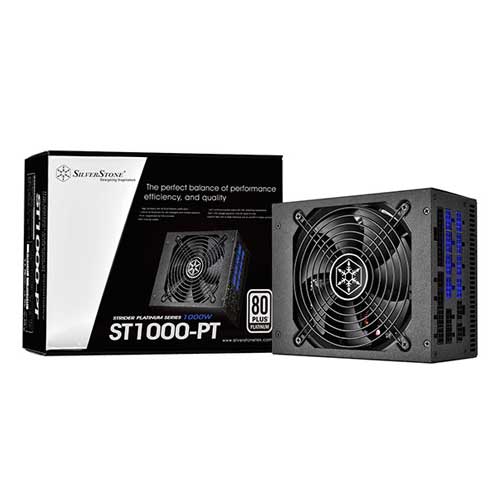

SILVERSTONE ST-ST1000 1000W80+ Platinum Fully Modular ATX 2.0 Power Supply
MPN SILVERSTONE-SST-ST1000-PT · Brand SilverStone
Features of SILVERSTONE ST-ST1000 SILVERSTONE Strider Platinum SST-ST1000-PT Modular PSU is the power supply which is designed for 80 PLUS PLATINUM level of efficiency which reduces the wasted heat and save the maximum amount of electricity. Silverstone Strider Platinum SST-ST1000-PT Modular PSU comes with flat cables which have much greater flexibility which allows a tighter grip and management of the cables. It has a 100% modular cable design which can used with the short cable kit such as the
Inclusive of GST · GST invoice available
Overview
Features of SILVERSTONE ST-ST1000
SILVERSTONE Strider Platinum SST-ST1000-PT Modular PSU is the power supply which is designed for 80 PLUS PLATINUM level of efficiency which reduces the wasted heat and save the maximum amount of electricity. Silverstone Strider Platinum SST-ST1000-PT Modular PSU comes with flat cables which have much greater flexibility which allows a tighter grip and management of the cables. It has a 100% modular cable design which can used with the short cable kit such as the Silverstone PP05-E or for an easy removal in a case in which the cables are routed and tied down. It has 139mm fan with air penetration and a semi-fanless operation with an intelligent RPM control which gives cool performance and silent operation with minimum 18 dBA. The fan is embedded with magnet FF141 which can be easily attached to any steel power supply surface and a filter is included with it.
The Silverstone Power Supply has dual EPS 8 in with multiple or individual one on one PCIe 8/6 pin connectors. It comes with a powerful single +12V rail design which is perfect of future high end component upgrades or the overclocking and also has a strict +/- 3% voltage regulation with low ripple and low noise for high stability and greater performance. The maximum DC output is 1000W Power Supply with 431W per liter of power density. The input voltage ranges from 90V – 264V with 47 Hz – 63 Hz of input frequency. The dimensions of the PSU are 150mm (Weight) x 86 mm (height) x 180 mm (depth) with 3.3 kg of weight and has 5 years of manufacturer warranty.
- High efficiency with 80 PLUS Platinum certification
- 139mm Air Penetrator fan with intelligent semi-fanless operation
- FF141 magnetized fan filter included
- 100% modular cables
- 24/7 continuous power output with 40 degree C operating temperature
- Strict /- 3% voltage regulation and low ripple & noise
- Dual EPS 8pin with multiple individual one- one PCI-E 8/6pin connectors
- Over Current Protection, Over Power Protection, Over Voltage Protection, Short Circuit Protection, Under Voltage Protection, Over Temperature Protection
Get the best 80 Plus Platinum computer SMPS price from us today!
Specifications of SILVERSTONE ST-ST1000
| Type: | ATX12V / EPS12V |
| Maximum Power: | 1000W |
| Fans: | Single 139mm silent fan |
| PFC: | Active |
| Main Connector: | 20 4Pin |
| 12V Rails: | Single |
| PCI-Express Connector: | 6 x 6 2-Pin |
| SATA Power Connector: | 16 |
| Efficiency: | 89% – 92% |
| Energy - Efficient: | 80 PLUS PLATINUM Certified |
| Over Voltage Protection: | Yes |
| Input Voltage: | 90 – 264 V |
| Input Frequency Range: | 47 – 63 Hz |
| Output: | 3.3V@22A, 5V@25A, 12V@83A, [email protected], [email protected] |
| MTBF: | >100,000 Hours |
| Dimensions: | 3.39″ x 5.91″ x 7.09″ |
| Weight: | 7.28 lbs |
Datasheet
| Pfc | Active |
|---|---|
| Fans | Single 139mm silent fan |
| Mtbf | >100,000 Hours |
| Weight | 7.28 lbs |
| Output | 3.3V@22A, 5V@25A, 12V@83A, [email protected], [email protected] |
| 12V Rails | Single |
| Dimensions | 3.39″ x 5.91″ x 7.09″ |
| Efficiency | 89% – 92% |
| Input Voltage | 90 – 264 V |
| Maximum Power | 1000W |
| Main Connector | 20 4Pin |
| Energy - Efficient | 80 PLUS PLATINUM Certified |
| Sata Power Connector | 16 |
| Input Frequency Range | 47 – 63 Hz |
| Pci-Express Connector | 6 x 6 2-Pin |
| Over Voltage Protection | Yes |
