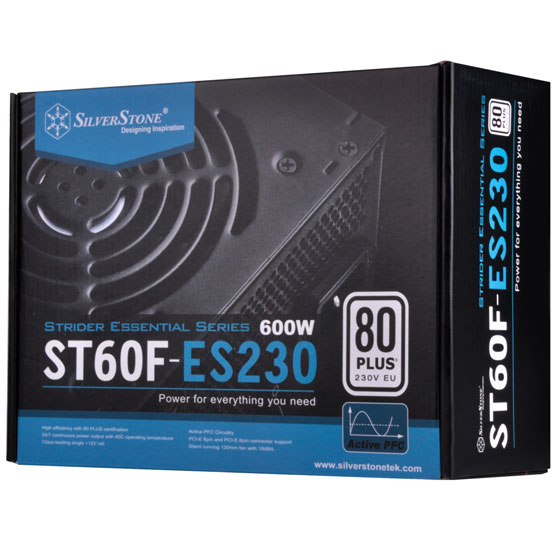

SILVERSTONE ST60F-ES230 80+ White Non Modular Power Supply (600 W)
MPN SILVERSTONE-ST60F-ES230-600-WATT-80-PLUS-CERTIFIED-PSU · Brand SilverStone · ATX
The SilverStone ST60F-ES230 is a 600W 80 Plus-certified non-modular ATX power supply featuring a single +12V rail (552W), active PFC, and a quiet 120mm fan rated at 18 dBA minimum
Inclusive of GST · GST invoice available
Overview
The SilverStone ST60F-ES230 is a 600W ATX form-factor power supply designed for mainstream desktop PC builds requiring a reliable, efficient, and quiet power source. Carrying the 80 Plus certification, this unit delivers 82% to 85% efficiency across 20% to 100% of its rated load, reducing heat output and keeping energy costs lower compared to non-certified alternatives. At the heart of the ST60F-ES230 is a single +12V rail rated at 552W combined output, providing clean and stable power to modern CPUs and GPUs alike. The remaining combined +3.3V and +5V rails contribute 120W, giving a total maximum DC output of 600W. Active Power Factor Correction (PFC) keeps the power factor above 0.9 at full load, making the unit well-suited for the 230V EU input range of 180V to 264V at 47Hz to 63Hz. Cooling is handled by a single 120mm fan with a minimum noise level of 18 dBA, making this PSU suitable for quiet home office environments where acoustic comfort matters. The unit is non-modular, meaning all cables are permanently attached, which simplifies installation in standard ATX mid-tower or full-tower cases. The connector set covers a wide range of components: one 24/20-pin motherboard connector, one 8/4-pin EPS/ATX 12V connector, two 8/6-pin PCIe connectors for discrete graphics cards, four SATA connectors, three 4-pin peripheral connectors, and one 4-pin floppy connector. Protection features include over-power protection, over-voltage protection, and short-circuit protection, helping safeguard connected components. The ST60F-ES230 is compatible with ATX12V v2.4 and has an MTBF rating of 100,000 hours. Its compact dimensions of 150mm (W) x 86mm (H) x 140mm (D) and weight of 1.41 kg make it straightforward to fit into standard cases. Verified Specifications: Model: SST-ST60F-ES230 | Max DC Output: 600W | Combined +12V: 552W | Combined +3.3V & +5V: 120W | Input Voltage: 180V–264V | Input Frequency: 47Hz–63Hz | PFC: Active (PF>0.9 at full load) | Efficiency: 82%–85% at 20%–100% load | Certification: 80 Plus | Noise Level: 18 dBA minimum | Cooling: Single 120mm fan | Form Factor: ATX | Dimensions: 150mm x 86mm x 140mm | Weight: 1.41 kg | MTBF: 100,000 hours | Color: Black (Lead-Free Paint) | ATX12V Compatibility: v2.4
Datasheet
| Pfc | Active PFC（PF>0.9 at full load） |
|---|---|
| Mtbf | 100,000 hours |
| Other | GPU Support listCompatible with ATX12V v2.4 |
| Weight | 1.41 kg |
| Dimension | 150 mm (W) x 86 mm (H) x 140 mm (D)5.91" (W) x 3.39" (H) x 5.51" (D) |
| Model No. | SST-ST60F-ES230 |
| Connectors | 1 x 24 / 20-Pin motherboard connector（500mm）1 x 8 / 4-Pin EPS / ATX 12V connector（750mm）2 x 8 / 6-Pin PCIE connector（"500mm / 150mm"）4 x SATA connector（"500mm / 150mm" x 2）3 x 4-Pin Peripheral connector（500mm / 150mm / 150mm）1 x 4-Pin Floppy connector（500mm / 150mm / 150mm / 150mm） |
| Efficiency | 82% ~ 85% at 20% ~ 100% loading |
| Protection | Over power protectionOver voltage protectionShort circuit protection |
| Noise Level | 18 dBA minimum |
| Certification | 80 PLUS |
| Combined +12V | 552W |
| Input Voltage | 180V~264V |
| Power Density | 332W per liter |
| Cooling System | Single 120mm silent fan |
| Max. Dc Output | 600W |
| Combined +3.3V & +5V | 120W |
| Input Frequency Range | 47Hz~63Hz |
| Operating Temperature | 0°C ~ 40°C |
| Form Factor | ATX |
| color | Black |
