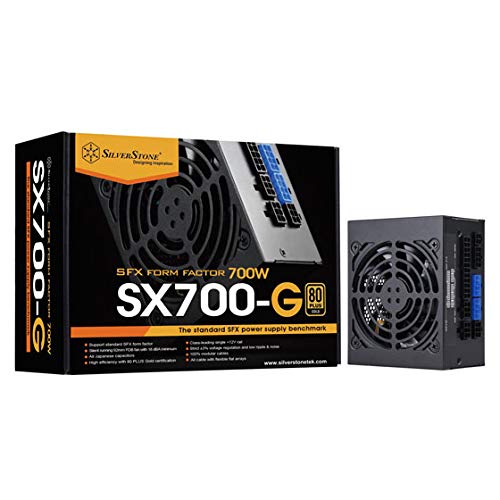

SILVERSTONE SX700-G SFX 80+ Gold Fully Modular Power Supply (700 W)
MPN SILVERSTONE-SX700-GOLD-700W-PSU · Brand SilverStone · SFX
Features of SILVERSTONE SX700-G The SILVERSTONE SX700-G 700W Power Supply is Designed for 80 PLUS Gold level of efficiency to reduce wasted heat and save on electricity. Built-in 92mm FDB fan has excellent airflow and low noise, perfect for quiet home or office use. 100% modular cable design for easy removal in a case with cable routed and tied down. The Silverstone Power Supply has flexible flat cables have much greater flexibility to allow for tighter folding and management of cables. Powerful
Inclusive of GST · GST invoice available
Overview
Features of SILVERSTONE SX700-G
The SILVERSTONE SX700-G 700W Power Supply is Designed for 80 PLUS Gold level of efficiency to reduce wasted heat and save on electricity.
Built-in 92mm FDB fan has excellent airflow and low noise, perfect for quiet home or office use.
100% modular cable design for easy removal in a case with cable routed and tied down.
The Silverstone Power Supply has flexible flat cables have much greater flexibility to allow for tighter folding and management of cables.
Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking.
±3% regulation and low ripple & noise performance for high stability.
- Support standard SFX form factor
- Silent running 92mm FDB fan with 18 dBA minimum
- All Japanese capacitors
- High efficiency with 80 PLUS Gold certification
- Class-leading single +12V rail
- Strict ±3% voltage regulation and low ripple & noise
- 100% modular cables
- All cable with flexible flat arrays
Get the best 80 Plus Gold computer SMPS price from us today!

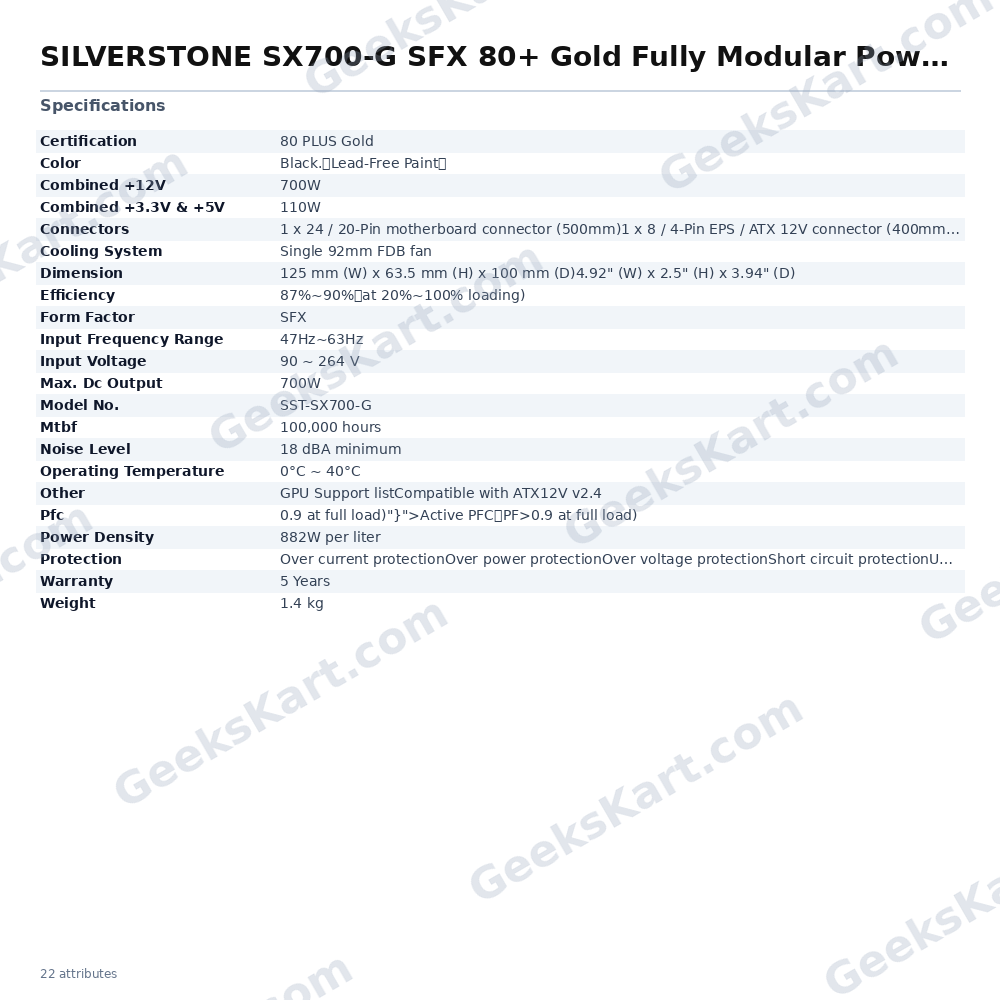

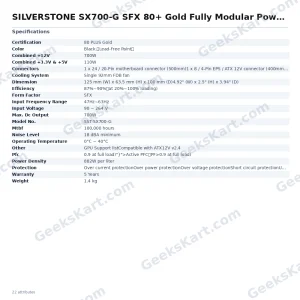

Specifications of SILVERSTONE SX700-G
| Model No. | SST-SX700-G |
| Max. DC Output | 700W |
| Power density | 882W per liter |
| Color | Black.（Lead-Free Paint） |
| Combined +3.3V & +5V | 110W |
| Combined +12V | 700W |
| Input Voltage | 90 ~ 264 V |
| Input Frequency Range | 47Hz~63Hz |
| PFC | 0.9 at full load)"}">Active PFC（PF>0.9 at full load) |
| Efficiency | 87%~90%（at 20%~100% loading) |
| MTBF | 100,000 hours |
| Operating temperature | 0°C ~ 40°C |
| Protection | Over current protection Over power protection Over voltage protection Short circuit protection Under voltage protection Over temperature protection |
| Connectors | 1 x 24 / 20-Pin motherboard connector (500mm) 1 x 8 / 4-Pin EPS / ATX 12V connector (400mm) 4 x 8 / 6-Pin PCIe connector ("500mm / 150mm" x 2) 8 x SATA connector ("500mm / 150mm / 150mm / 150mm" x 2) 3 x 4-Pin Peripheral connector (500mm / 150mm / 150mm) 1 x 4-Pin Floppy connector (500mm / 150mm / 150mm / 150mm) |
| Cooling System | Single 92mm FDB fan |
| Form factor | SFX |
| Noise Level | 18 dBA minimum |
| Dimension | 125 mm (W) x 63.5 mm (H) x 100 mm (D) 4.92" (W) x 2.5" (H) x 3.94" (D) |
| Weight | 1.4 kg |
| Certification | 80 PLUS Gold |
| Other | GPU Support list Compatible with ATX12V v2.4 |
| Warranty | 5 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
Datasheet
| Warranty | 5 Years |
|---|---|
| Form Factor | SFX |
| Color | Black |
| Pfc | 0.9 at full load)"}">Active PFC（PF>0.9 at full load) |
| Mtbf | 100,000 hours |
| Other | GPU Support listCompatible with ATX12V v2.4 |
| Weight | 1.4 kg |
| Dimension | 125 mm (W) x 63.5 mm (H) x 100 mm (D)4.92" (W) x 2.5" (H) x 3.94" (D) |
| Model No. | SST-SX700-G |
| Connectors | 1 x 24 / 20-Pin motherboard connector (500mm)1 x 8 / 4-Pin EPS / ATX 12V connector (400mm)4 x 8 / 6-Pin PCIe connector ("500mm / 150mm" x 2)8 x SATA connector ("500mm / 150mm / 150mm / 150mm" x 2)3 x 4-Pin Peripheral connector (500mm / 150mm / 150mm)1 x 4-Pin Floppy connector (500mm / 150mm / 150mm / 150mm) |
| Efficiency | 87%~90%（at 20%~100% loading) |
| Protection | Over current protectionOver power protectionOver voltage protectionShort circuit protectionUnder voltage protectionOver temperature protection |
| Noise Level | 18 dBA minimum |
| Certification | 80 PLUS Gold |
| Combined +12V | 700W |
| Input Voltage | 90 ~ 264 V |
| Power Density | 882W per liter |
| Cooling System | Single 92mm FDB fan |
| Max. Dc Output | 700W |
| Combined +3.3V & +5V | 110W |
| Input Frequency Range | 47Hz~63Hz |
| Operating Temperature | 0°C ~ 40°C |
