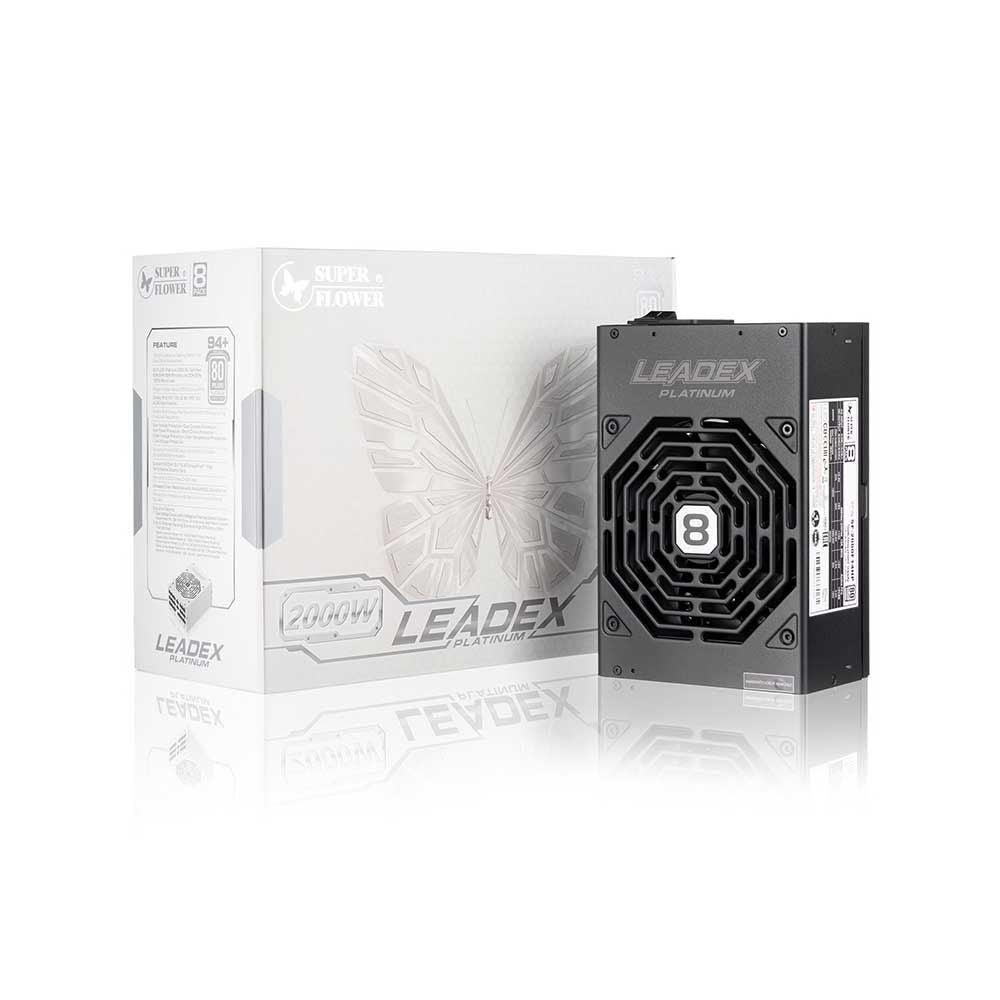

SUPER FLOWER Leadex 2000 80 Plus Platinum ATX 2.0 Fully Modular Power Supply (2000 W)
MPN SUPER-FLOWER-LEADEX-2000W-PLATINUM · Brand SUPER FLOWER
Feature of SUPER FLOWER Leadex 2000 80 Plus Platinum SUPER FLOWER Leadex 2000w Power Supply are 80+ Platinum certified with 100% fully modular cable design, our R&D team’s latest innovation, a brilliant idea to maximize PSU cables & connectors management to have the best cable routing solution, also increase case chassis air flow to have best cooling for your system. Super Flower Power Supply provides high efficiency & stable power output and come with a 14cm two-way thermal control
Inclusive of GST · GST invoice available
Overview
Feature of SUPER FLOWER Leadex 2000 80 Plus Platinum
SUPER FLOWER Leadex 2000w Power Supply are 80+ Platinum certified with 100% fully modular cable design, our R&D team’s latest innovation, a brilliant idea to maximize PSU cables & connectors management to have the best cable routing solution, also increase case chassis air flow to have best cooling for your system.
Super Flower Power Supply provides high efficiency & stable power output and come with a 14cm two-way thermal control intelligent cooling fan to ensure your professional PC system will work under heavy load, also capable of powering your PC system equipped with NVIDIA® SLI™ or ATI CrossFireX™ setup.
- 100% Full Modular Cabling Design For Easy Cable Management
- 80 PLUS® Platinum 230V EU Certified,92% 94% 90% Efficiency At 20% 50% 100% Rated Load.
- Single Voltage Design 230V (Active PFC).
- Comply With ATX 12V. V2.2, EPS 12V. V2.91 & SSI EPS 12V. V2.92 Specification
- Comply With Energy Star Standard & EuP (Energy Using Products) Regulation
- Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection / Under Voltage Protection / Over Temperature Protection / Low Voltage Protection.
- Support All Intel/AMD Multi-Core CPU & ATX/BTX Compatible Motherboards
- Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card
- More than 2,000 times On/Off test
- Unleaded Green Materials with RoHS/WEEE Compliance
- Perfect For Professional & High Performance Gaming System
- Bridgeless PFC & Full-Bridge LLC Resonant Circuit Design
- Exclusive Patents
- Dual Voltage Circuit with IntelligenceThermal Control System (Taiwan Patent NO.:381102 (China,U.S.A,Germany,Japan patent applied))
- Multi Patenet Pending Extreme High Efficiency Main Transformer
Taiwan Invention Patent no: 103127942 (Patent Pending)
Taiwan Utility Model Patent no: 103214502 (Patent Pending)
China Invention Patent no: 201410414373.3 (Patent Pending)
China Utility Model Patent no: 201420474128.7 (Patent Pending)
Germany, United Kingdom, USA, Korea, Japan Patent Applied
This product is designed for personal desktop system and high-end gaming systems, warranty void if use for the following special-purpose system
Get the best 80 Plus Platinum computer SMPS price from us today!
SF-2000F14HP-ATX-2-9

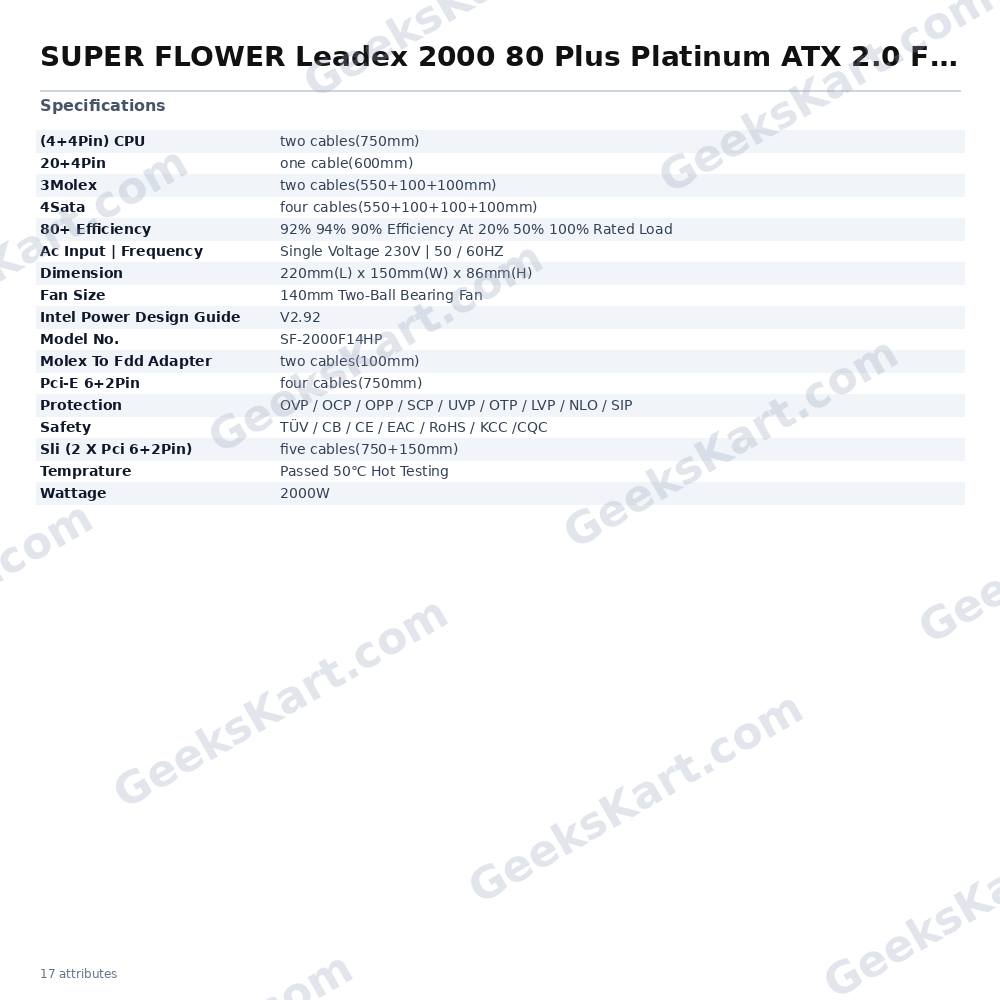

Specifications of SUPER FLOWER Leadex 2000 80 Plus Platinum
| Model No. | SF-2000F14HP |
| Wattage | 2000W |
| 80+ Efficiency | 92% 94% 90% Efficiency At 20% 50% 100% Rated Load |
| Intel Power Design Guide | V2.92 |
| AC Input | Frequency | Single Voltage 230V | 50 / 60HZ |
| Fan Size | 140mm Two-Ball Bearing Fan |
| Dimension | 220mm(L) x 150mm(W) x 86mm(H) |
| Protection | OVP / OCP / OPP / SCP / UVP / OTP / LVP / NLO / SIP |
| Safety | TÜV / CB / CE / EAC / RoHS / KCC /CQC |
| Temprature | Passed 50℃ Hot Testing |
| 20+4Pin | one cable(600mm) |
| (4+4Pin) CPU | two cables(750mm) |
| PCI-E 6+2Pin | four cables(750mm) |
| SLI (2 x PCI 6+2Pin) | five cables(750+150mm) |
| 4SATA | four cables(550+100+100+100mm) |
| 3Molex | two cables(550+100+100mm) |
| Molex to FDD Adapter | two cables(100mm) |
Datasheet
| 4Sata | four cables(550+100+100+100mm) |
|---|---|
| 3Molex | two cables(550+100+100mm) |
| Safety | TÜV / CB / CE / EAC / RoHS / KCC /CQC |
| 20+4Pin | one cable(600mm) |
| Wattage | 2000W |
| Fan Size | 140mm Two-Ball Bearing Fan |
| Dimension | 220mm(L) x 150mm(W) x 86mm(H) |
| Model No. | SF-2000F14HP |
| Protection | OVP / OCP / OPP / SCP / UVP / OTP / LVP / NLO / SIP |
| Temprature | Passed 50℃ Hot Testing |
| (4+4Pin) CPU | two cables(750mm) |
| Pci-E 6+2Pin | four cables(750mm) |
| 80+ Efficiency | 92% 94% 90% Efficiency At 20% 50% 100% Rated Load |
| Ac Input | Frequency | Single Voltage 230V, 50 / 60HZ |
| Molex To Fdd Adapter | two cables(100mm) |
| Sli (2 X Pci 6+2Pin) | five cables(750+150mm) |
| Intel Power Design Guide | V2.92 |
