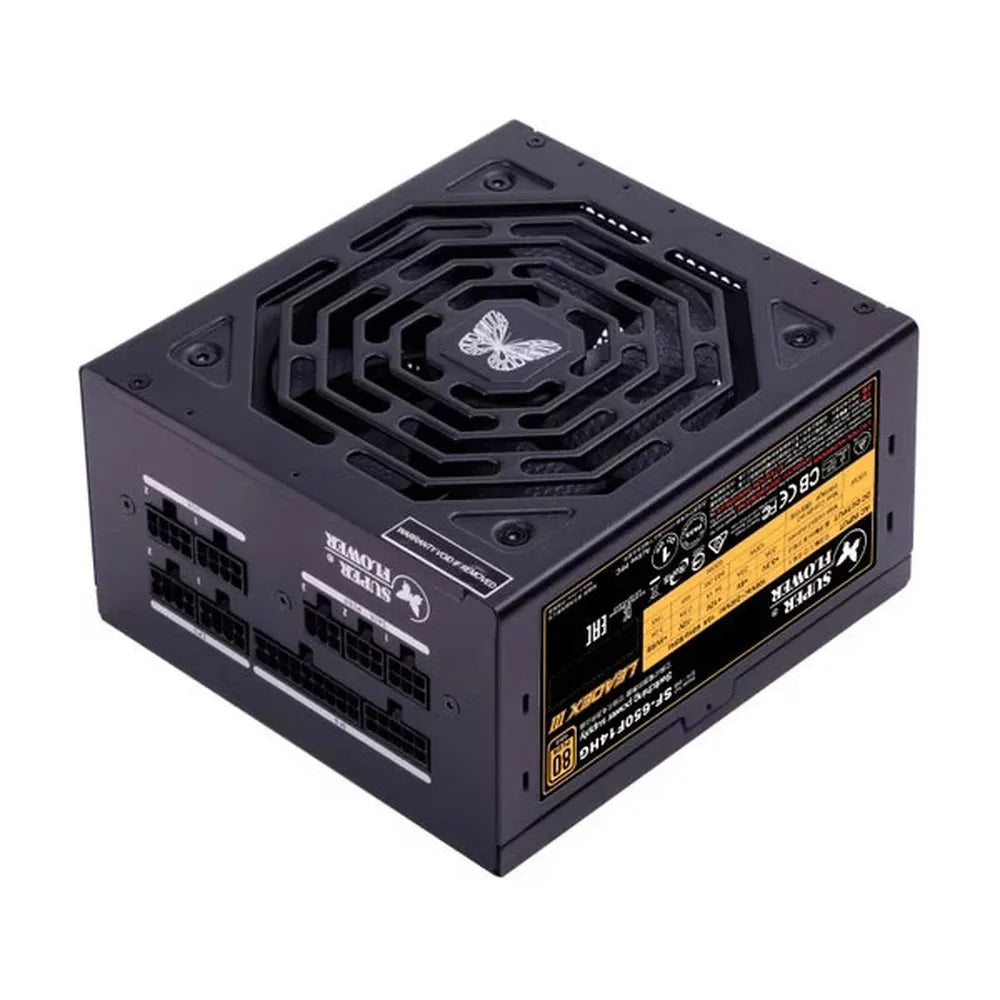

Feature of SUPER FLOWER Leadex III 650 80 Plus
SUPER FLOWER Leadex III 650W Power Supply are 80 PLUS Gold certified with 100% fully modular cable design, our R&D team’s latest innovation, a brilliant idea to maximize PSU cables & connectors management to have the best cable routing solution, also increase case chassis air flow to have best cooling for your system. Super Flower Power Supply provides high efficiency & stable power output and come with a 13cm three-way thermal control intelligent cooling fan to ensure your professional PC system will work under heavy load, also capable of powering your PC system equipped with NVIDIA® SLI™ or ATI CrossFireX™ setup.
Innovative Design for gaming System & PSU protection
1. DC output +12V/ +5V/ +3.3V remain stable
2. Dynamic loading improvement on +12V/ +5V/ +3.3V
3. Low Output Voltage Ripple
4. Dual Over Power Protection
ECO-design
- Auto + two levels of ECO Fan control
2. High efficiency on all rails, including 5VSB
♦ 100% Fully Modular Cabling Design For Easy Cable Management
♦ 80 PLUS ® Gold Certified for LEADEX III Gold Series
♦ 100% Japanese 105°C Capacitors (Main Board & Modular Backpanel)
♦ 100% Taiwan A Grade 105°C Capacitors (Modular Backpanel)
♦ Full Range Auto Voltage Detection Design 100V~240V (Active PFC)
♦ Comply With ATX 12V. v2.32 & EPS 12V. v2.92 Specification
♦ Comply With Energy Star Standard & EuP (Energy Using Products) Regulation
♦ Over Voltage Protection / Over Current Protection / Dual Over Power Protection / Short Circuit Protection / Under Voltage Protection / Over Temperature Protection / No Load Operation / Surge & Inrush Protection
♦ Support All Intel / AMD Multi-Core CPU & ATX / BTX Compatible Motherboards(Haswell ready)
♦ Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card
♦ More than 2,000 times On/Off test
♦ Lead-free Green Materials with RoHS / WEEE Compliance
♦ Perfect For Professional & High Performance Gaming System
Get the best 80 Plus Gold computer SMPS price from us today!

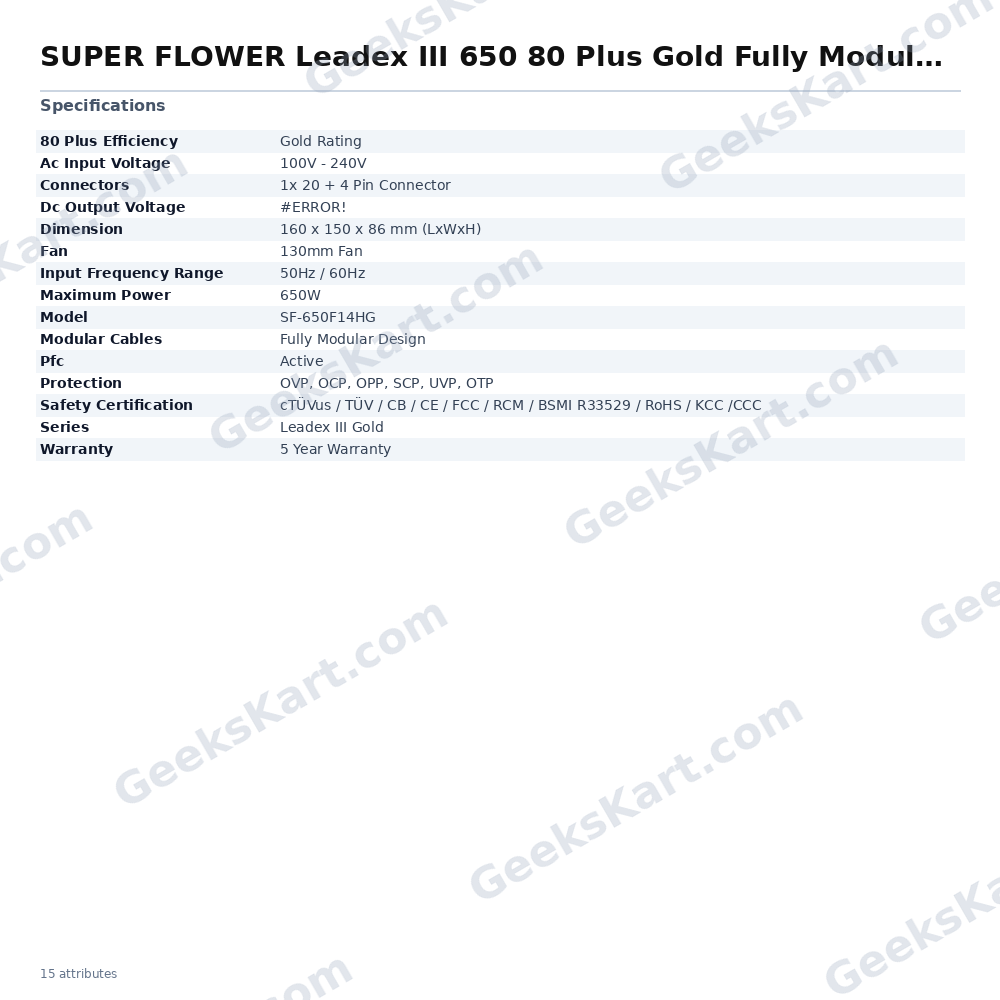

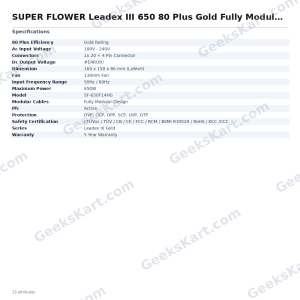

Specifications of SUPER FLOWER Leadex III 650 80 Plus
| Brand | Super Flower |
| Series | Leadex III Gold |
| Model | SF-650F14HG |
| Type | ATX |
| Maximum Power | 650W |
| 80 Plus Efficiency | Gold Rating |
| 20%: 87% / 50%: 90% / 100%: 87% (115V Internal Gold) | |
| Fan | 130mm Fan |
| FDB (Fluid Dynamic Bearing) | |
| PFC | Active |
| Modular Cables | Fully Modular Design |
| Connectors | 1x 20 + 4 Pin Connector |
| 2x 4 + 4 Pin Connector | |
| 4x PCI 6 + 2 Pin Connectors | |
| 6x SATA Connectors | |
| 4x 4 Pin Molex Connectors | |
| AC Input Voltage | 100V – 240V |
| Input Frequency Range | 50Hz / 60Hz |
| DC Output Voltage | #ERROR! |
| Protection | OVP, OCP, OPP, SCP, UVP, OTP |
| Safety Certification | cTÜVus / TÜV / CB / CE / FCC / RCM / BSMI R33529 / RoHS / KCC /CCC |
| Dimension | 160 x 150 x 86 mm (LxWxH) |
| Warranty Information | |
| Warranty | 5 Year Warranty |
