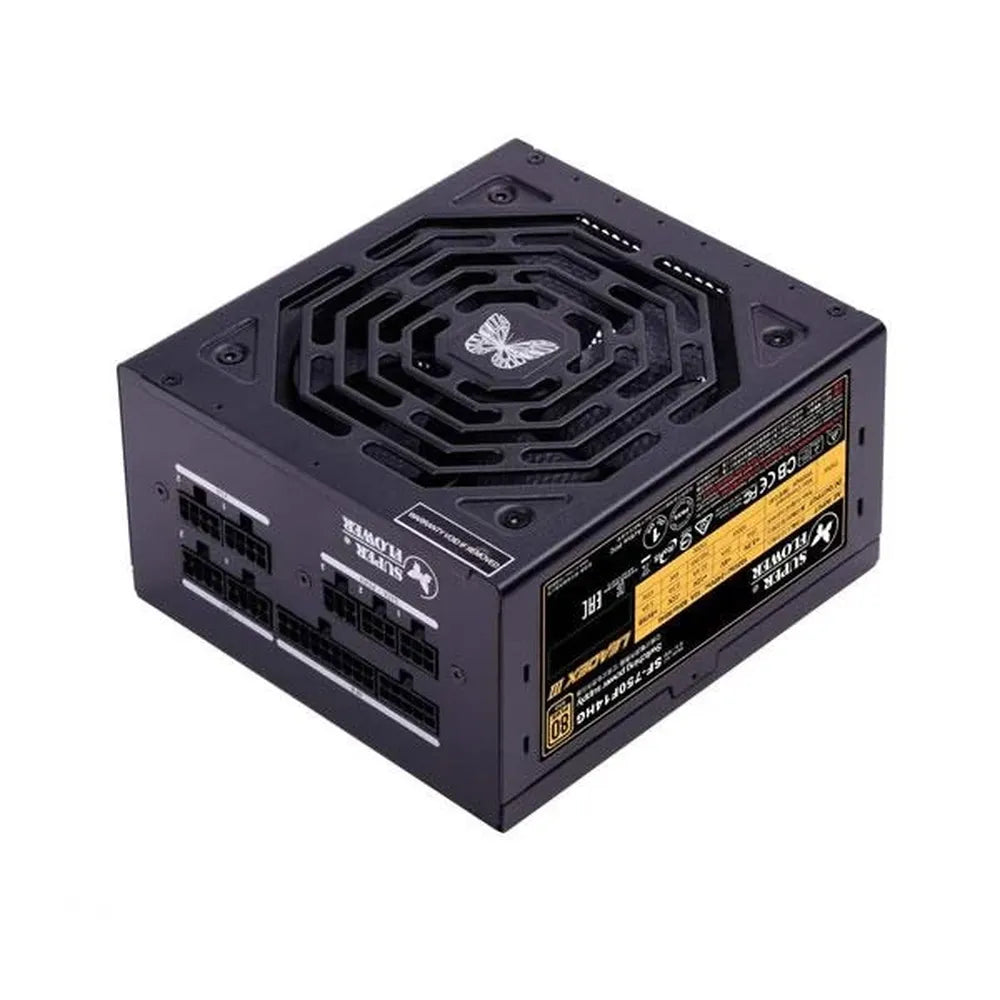

SUPER FLOWER Leadex III 750 80 Plus Gold ATX 2.0 Fully Modular Power Supply (750 W)
MPN SUPER-FLOWER-LEADEX-III-750W-GOLD · Brand SUPER FLOWER
Feature of SUPER FLOWER Leadex III 750 80 Plus SUPER FLOWER Leadex III 750 W Power Supply are 80PLUS Gold certified with 100% fully modular cable design, our R&D team's latest innovation, a brilliant idea to maximize PSU cables & connectors management to have the best cable routing solution, also increase case chassis air flow to have best cooling for your system. Super Flower Power Supply provides high efficiency & stable power output and come with a 13cm three-way thermal control i
Inclusive of GST · GST invoice available
Overview
Feature of SUPER FLOWER Leadex III 750 80 Plus
SUPER FLOWER Leadex III 750 W Power Supply are 80PLUS Gold certified with 100% fully modular cable design, our R&D team's latest innovation, a brilliant idea to maximize PSU cables & connectors management to have the best cable routing solution, also increase case chassis air flow to have best cooling for your system. Super Flower Power Supply provides high efficiency & stable power output and come with a 13cm three-way thermal control intelligent cooling fan to ensure your professional PC system will work under heavy load, also capable of powering your PC system equipped with NVIDIA® SLI™ or ATI CrossFireX™ setup.
Innovative Design for gaming System & PSU protection
1. DC output +12V/ +5V/ +3.3V remain stable
2. Dynamic loading improvement on +12V/ +5V/ +3.3V
3. Low Output Voltage Ripple
4. Dual Over Power Protection
ECO-design
- Auto + two levels of ECO Fan control
2. High efficiency on all rails, including 5VSB
★ 100% Fully Modular Cabling Design For Easy Cable Management
★ 80 PLUS ® Gold Certified for LEADEX III Gold Series
★ 100% Japanese 105°C Capacitors (Main Board & Modular Backpanel)
★ 100% Taiwan A Grade 105°C Capacitors (Modular Backpanel)
★ Full Range Auto Voltage Detection Design 100V~240V (Active PFC)
★ Comply With ATX 12V. v2.32 & EPS 12V. v2.92 Specification
★ Comply With Energy Star Standard & EuP (Energy Using Products) Regulation
★ Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection / Under Voltage Protection / Over Temperature Protection / No Load Operation / Surge & Inrush Protection
★ Support All Intel / AMD Multi-Core CPU & ATX / BTX Compatible Motherboards(Haswell ready)
★ Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card
★ More than 2,000 times On/Off test
★ Lead-free Green Materials with RoHS / WEEE Compliance
★ Perfect For Professional & High Performance Gaming System
Get the best 80 Plus Gold computer SMPS price from us today!
Specifications of SUPER FLOWER Leadex III 750 80 Plus
| Model No | SF-750F14HG |
| Wattage | 750W |
| 80+ Efficiency | 20%: 87%; 50%: 90%; 100%: 87% (115V Internal Gold) |
| Intel Power Design Guide | V2.92 |
| AC Input | Frequency | 100V~240V | 60 / 50Hz |
| Fan Size | 130mm F.D.B Fan |
| Dimension | 160mm(L) x 150mm(W) x 86mm(H) |
| Protection | OVP / OCP / Dual OPP / SCP / UVP / OTP / NLO / SIP |
| Safety | cTÜVus / TÜV / CB / CE / FCC / RCM / BSMI / RoHS / KCC /CCC |
| Temperature | Passed 50℃ Hot Testing |
| Cable Spec | |
| 20+4Pin | one cable (600mm) |
| 8 (4+4Pin) CPU | two cables (700mm) |
| SLI (2 x PCI 6+2Pin) | two cables (550mm + 150mm) |
| 4SATA | two cables (550mm + 120mm+120mm+120mm) |
| 4Molex | one cable (550mm + 100mm+100mm+100mm) |
| Warranty | 10 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |

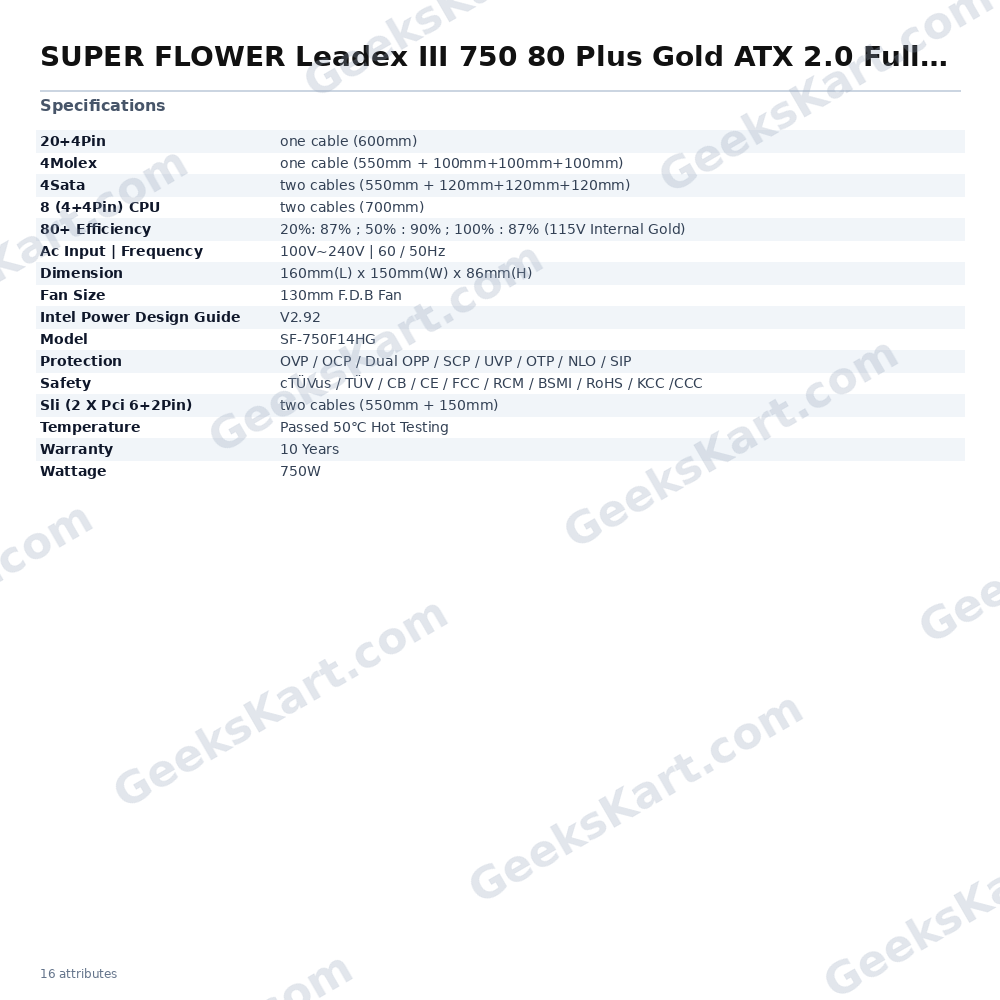

Datasheet
| Warranty | 10 Years |
|---|---|
| 4Sata | two cables (550mm + 120mm+120mm+120mm) |
| 4Molex | one cable (550mm + 100mm+100mm+100mm) |
| Safety | cTÜVus / TÜV / CB / CE / FCC / RCM / BSMI / RoHS / KCC /CCC |
| 20+4Pin | one cable (600mm) |
| Wattage | 750W |
| Fan Size | 130mm F.D.B Fan |
| Model | SF-750F14HG |
| Dimension | 160mm(L) x 150mm(W) x 86mm(H) |
| Protection | OVP / OCP / Dual OPP / SCP / UVP / OTP / NLO / SIP |
| Temperature | Passed 50℃ Hot Testing |
| 8 (4+4Pin) CPU | two cables (700mm) |
| 80+ Efficiency | 20%: 87% ; 50% : 90% ; 100% : 87% (115V Internal Gold) |
| Ac Input | Frequency | 100V~240V, 60 / 50Hz |
| Sli (2 X Pci 6+2Pin) | two cables (550mm + 150mm) |
| Intel Power Design Guide | V2.92 |
