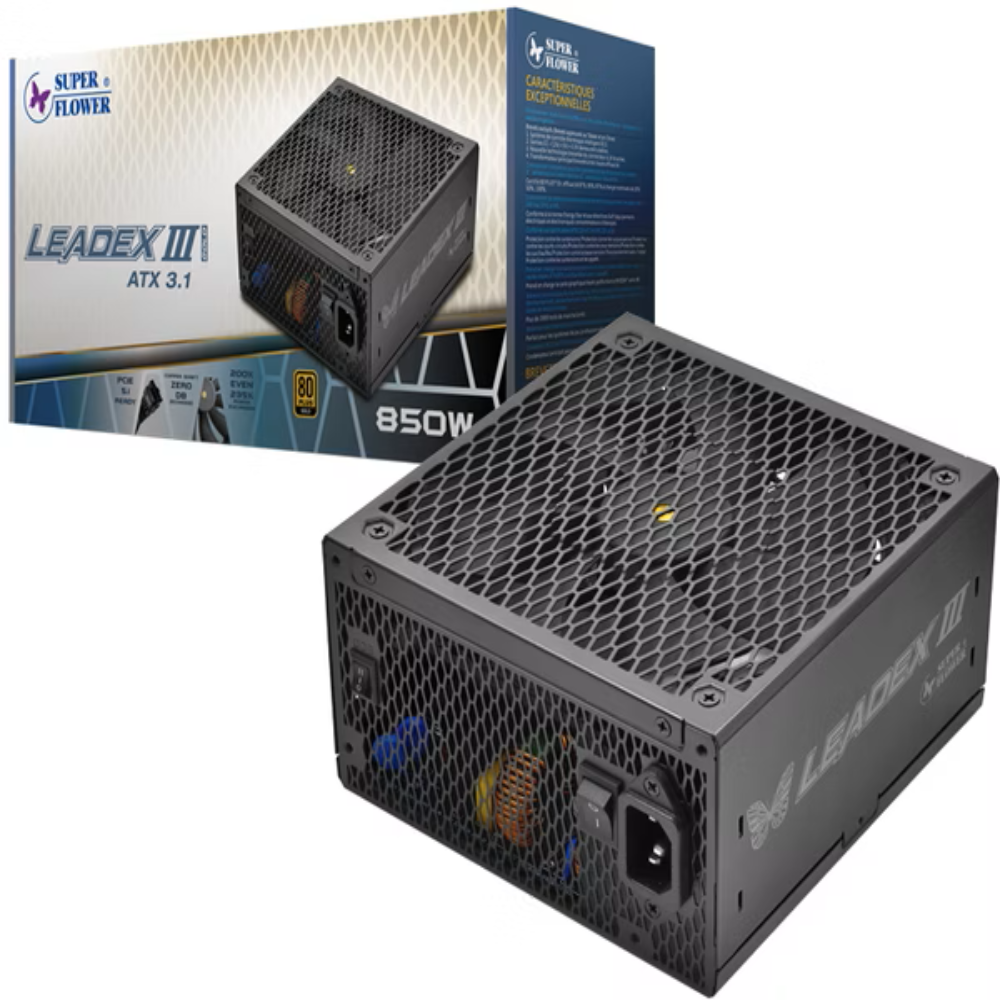

Features of SUPER FLOWER Leadex III Gold Up 850W 80 + Gold Fully Modular ATX 3.1 Power Supply
LEADEX III GE is fully compatible with Intel ATX 3.1 Specifications, supporting up to 200% power excursion. HCS terminals & Dual 8-pin sockets on the modular panel to 12+4 pin socket on GPU side, safer design to avoid high angle bending issue. Modern Design to meet the latest safety & PC requirement with IEC/EN 62368 & ALPM mode.
140mm F.D.B Fan: Unique 7-blade design for high airflow and more stable cooling system and provides accurate RPM thus minimizing the noise (dBA).
- Copper shaft around the bearing which provides stability and durability during operation thus better heat dissipation and longer life span.
- New patented technology of Buckle (20+4) Pin connector (Patent No.: Taiwan M563575; China 7566010,USA)
- Innovative Design for gaming System & PSU protection
1. DC output +12V/ +5V/ +3.3V remain stable
2. Dynamic loading (Transient response) improvement on +12V/+5V/+3.3V
3. +12V Output With Exceptional Low Ripple Measurements
4. Low Output Voltage Ripple - ECO-design
1. Auto & ECO Fan control
2. High efficiency on all rails, including 5VSB - 100% Fully Modular With All Ultra Flexible Ribbon Cables For Easy Cable Management.
- 80 PLUS® Gold Certified,87% 90% 87% Efficiency At 20% 50% 100% Rated Load.
- Japanese Main Capacitor
- Full Range Auto Voltage Detection Design 100V~240V (Active PFC)
- Comply With ATX 12V v3.1, EPS 12V v2.92 Specification.
- Comply With Energy Star Standard & EuP (Energy Using Products) Regulation
- Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection / Under Voltage Protection / Over Temperature Protection / No Load Operation / Surge & Inrush Protection
- Support All Intel / AMD Multi-Core CPU & ATX / BTX Compatible Motherboards (Haswell ready)
- Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card
- More than 2,000 times On/Off test
- Lead-free Green Materials with RoHS / WEEE Compliance
- Perfect For Professional & High Performance Gaming System
- PCI-E (6+2) Pin Connector For High-End Graphic Card Requirement.

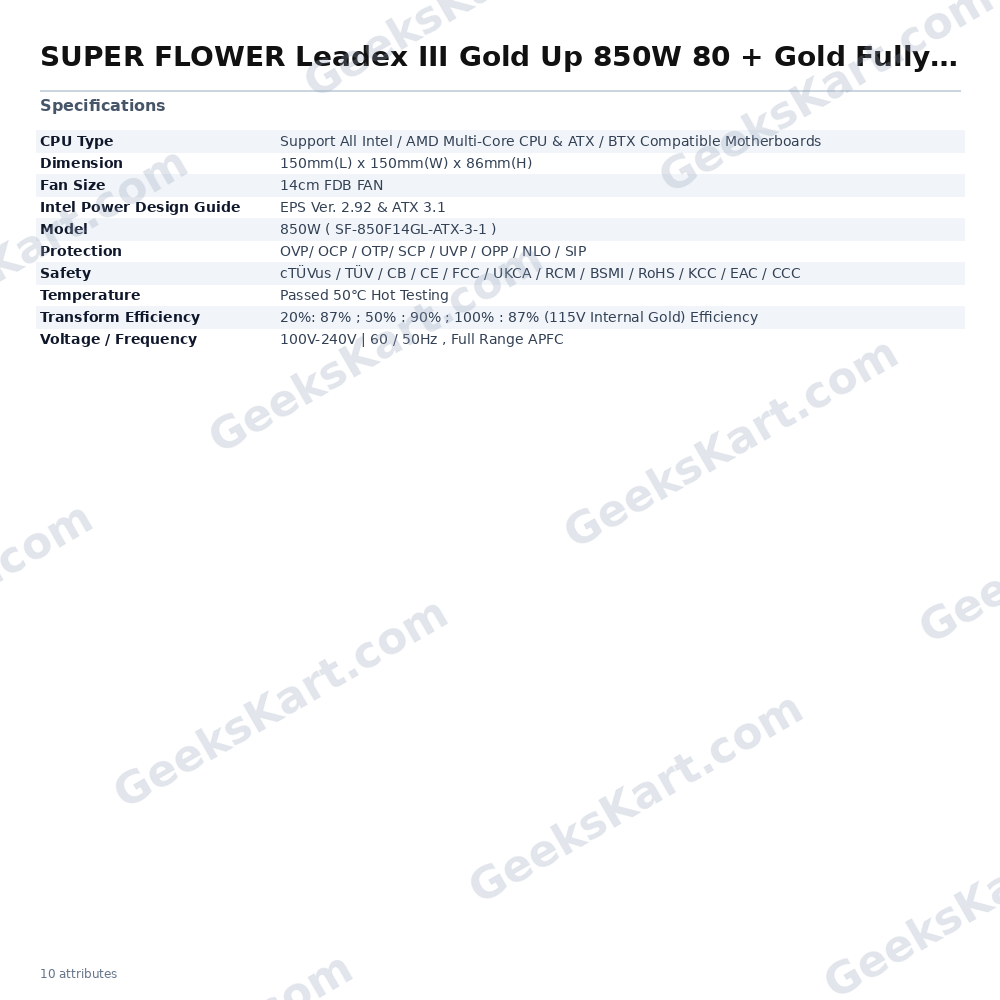

Specification of SUPER FLOWER Leadex III Gold Up 850W 80 + Gold Fully Modular ATX 3.1 Power Supply
|
Model No |
850W ( SF-850F14GL-ATX-3-1 ) |
| Transform Efficiency | 20%: 87%; 50%: 90%; 100%: 87% (115V Internal Gold) Efficiency |
| Intel Power Design Guide | EPS Ver. 2.92 & ATX 3.1 |
| CPU | Support All Intel / AMD Multi-Core CPU & ATX / BTX Compatible Motherboards |
| Voltage / Frequency | 100V-240V | 60 / 50Hz, Full Range APFC |
| Fan Size | 14cm FDB FAN |
| Dimension | 150mm(L) x 150mm(W) x 86mm(H) |
| Protection | OVP/ OCP / OTP/ SCP / UVP / OPP / NLO / SIP |
| Safety | cTÜVus / TÜV / CB / CE / FCC / UKCA / RCM / BSMI / RoHS / KCC / EAC / CCC |
| Temperature | Passed 50℃ Hot Testing |
