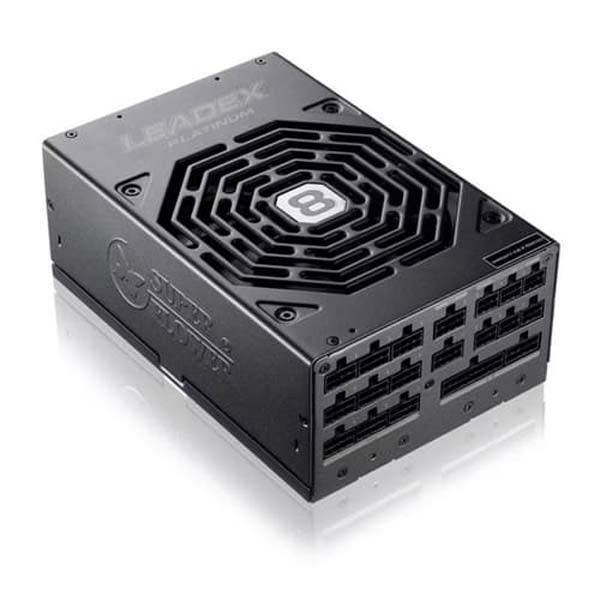

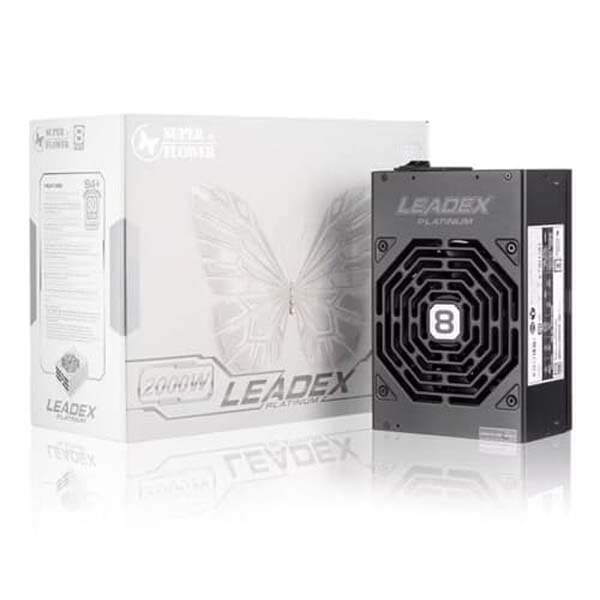

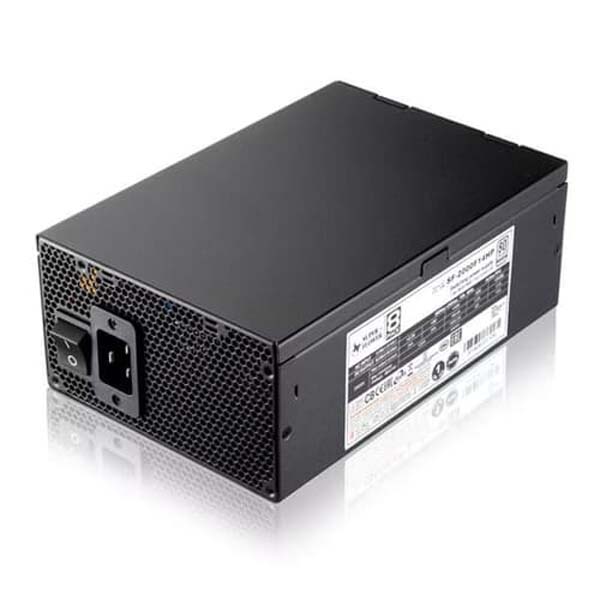

Super Flower Leadex Platinum 2000W Fully Modular SMPS
MPN SF-2000F14HP · Brand Super Flower
100% Full Modular Cabling Design For Easy Cable Management 80 PLUS Platinum 230V EU Certified,92% 94% 90% Efficiency At 20% 50% 100% Rated
Inclusive of GST · GST invoice available
Overview
- 100% Full Modular Cabling Design For Easy Cable Management
- 80 PLUS Platinum 230V EU Certified,92% 94% 90% Efficiency At 20% 50% 100% Rated

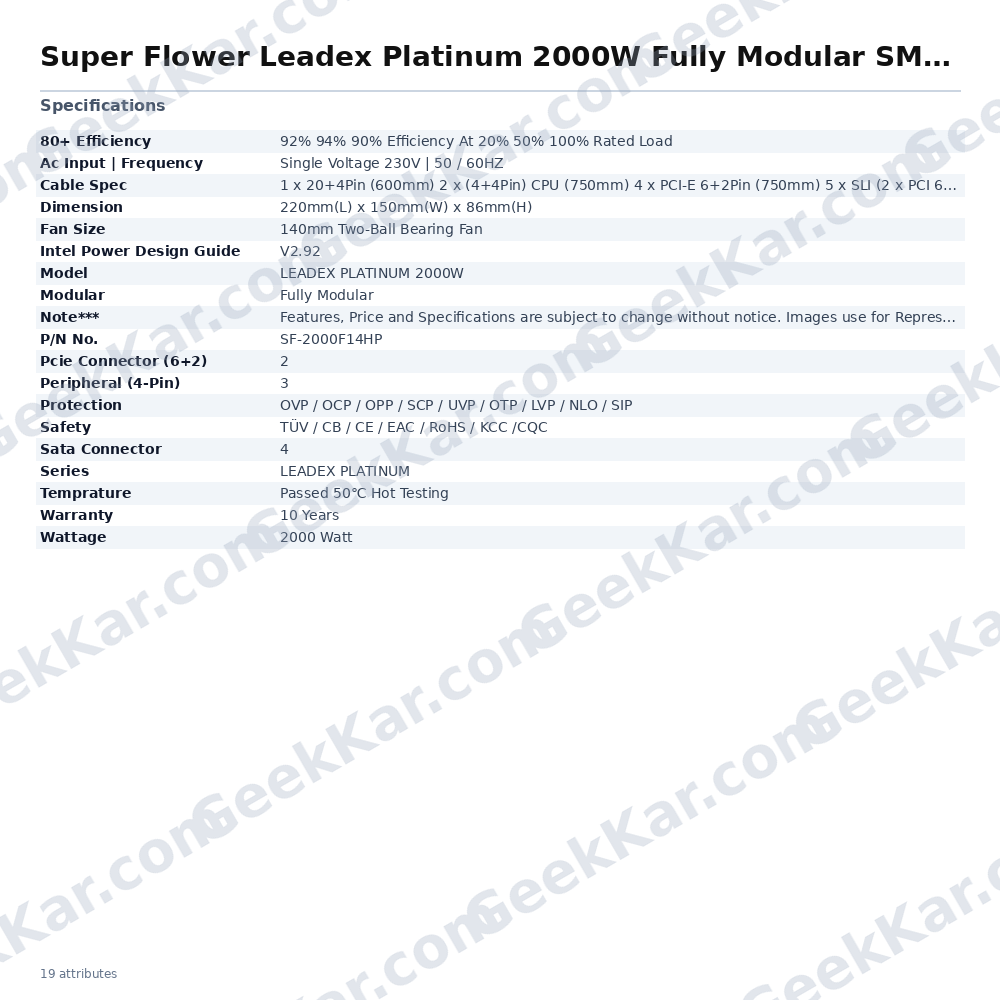

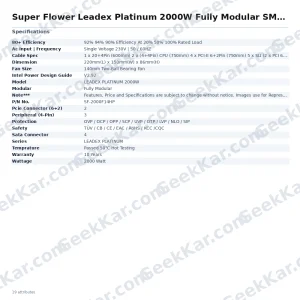

Datasheet
| Modular | FULLY MODULAR |
|---|---|
| Wattage | 2000 Watt |
| Model | LEADEX PLATINUM 2000W |
| Safety | TÜV / CB / CE / EAC / RoHS / KCC /CQC |
| Series | LEADEX PLATINUM |
| Note*** | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only |
| P/N No. | SF-2000F14HP |
| Fan Size | 140mm Two-Ball Bearing Fan |
| Dimension | 220mm(L) x 150mm(W) x 86mm(H) |

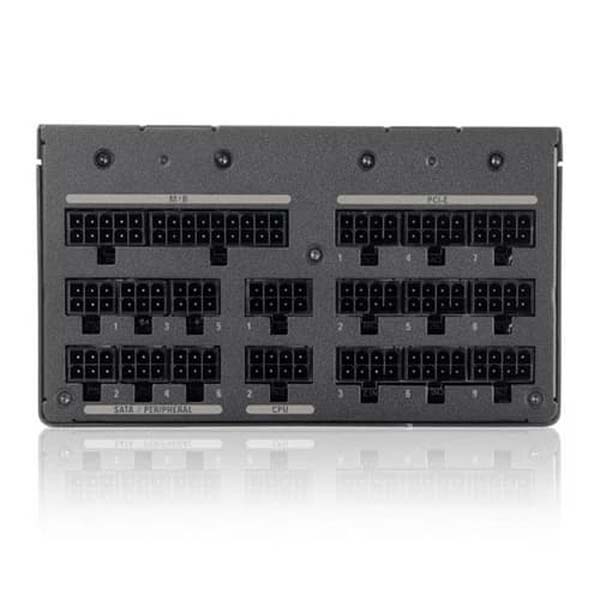

| Cable Spec | 1 x 20+4Pin (600mm) 2 x (4+4Pin) CPU (750mm) 4 x PCI-E 6+2Pin (750mm) 5 x SLI (2 x PCI 6+2Pin) (750+150mm) 4 x 4SATA (550+100+100+100mm) 2 x 3Molex (550+100+100mm) 2 x Molex to FDD Adapter (100mm) |
| Protection | OVP / OCP / OPP / SCP / UVP / OTP / LVP / NLO / SIP |
| Temprature | Passed 50℃ Hot Testing |
| 80+ Efficiency | 92% 94% 90% Efficiency At 20% 50% 100% Rated Load |
| Sata Connector | 4 |
| Peripheral (4-Pin) | 3 |
| Ac Input | Frequency | Single Voltage 230V, 50 / 60HZ |
| Pcie Connector (6+2) | 2 |
| Intel Power Design Guide | V2.92 |
| Warranty | 10 Years |
