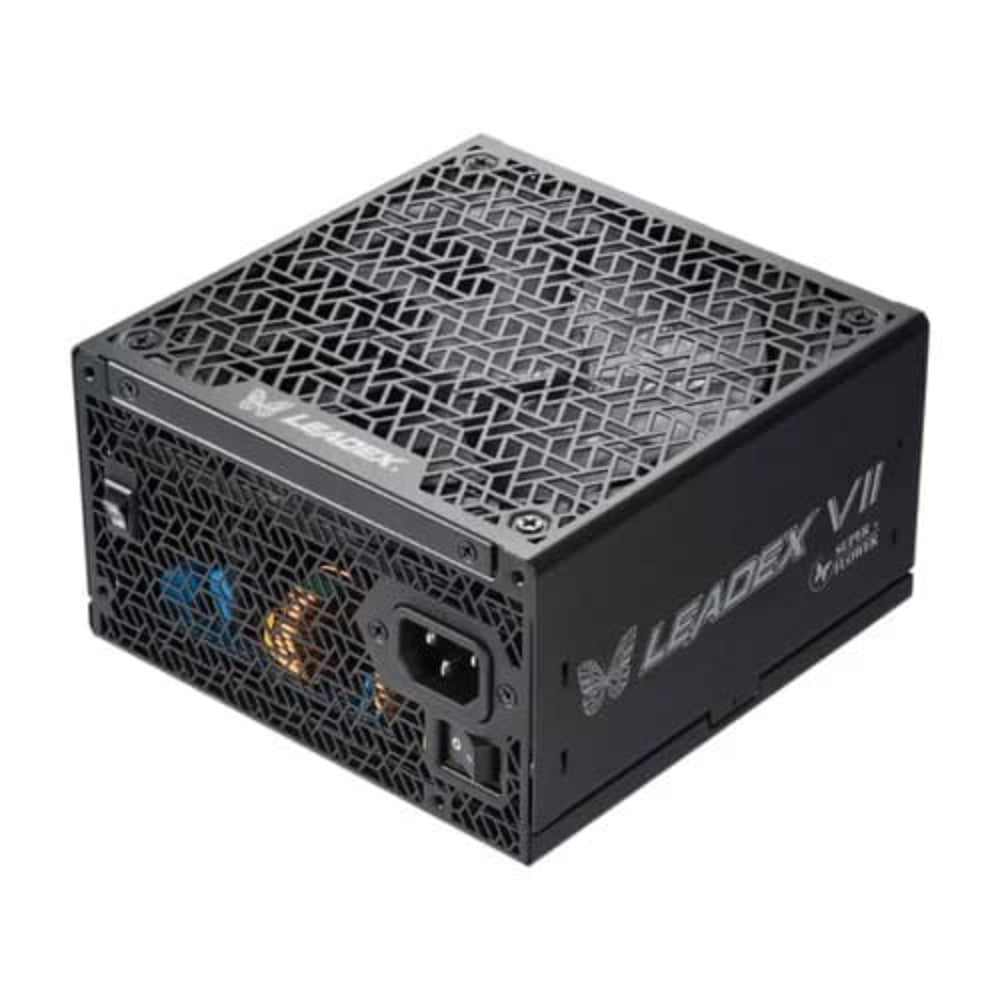

SUPER FLOWER Leadex VII 1000W 80+ Platinum Pro Fully Modular ATX 3.1 Power Supply ( 1000W ) ( Black )

The Super Flower Leadex VII 1000W 80+ Platinum Pro (Model: SF-1000F14XP-ATX-3-1) is a fully modular power supply built for demanding gaming and professional workstation builds. Compliant with Intel ATX 12V v3.1 and EPS 12V v2.92 specifications, it supports up to 200% power excursion headroom, making it ready for the latest high-TDP graphics cards including those using the 12+4 pin PCIe connector. At the heart of its thermal management is a 140mm Fluid Dynamic Bearing (F.D.B.) fan featuring a unique 9-blade design. The copper-shaft bearing construction improves stability, heat dissipation, and longevity. An Auto and ECO fan control mode keeps the system silent under light loads and ramps cooling automatically as demand increases. Efficiency is certified at 80 PLUS Platinum, delivering 90% efficiency at 20% load, 92% at 50% load, and 89% at 100% rated load — reducing waste heat and energy costs compared to lower-rated units. All primary and modular backpanel capacitors are 100% Japanese-made 105°C-rated components, chosen for long-term reliability in sustained high-temperature environments. Superior cable flexibility comes from 100% fully modular ultra-flexible ribbon cables, allowing clean routing and simplified cable management inside modern chassis. The modular panel features Super Flower's dual patented 9-pin Universal Super Connectors (Patent No.: Taiwan D196948, D196949; China CN304998083S), enabling flexible assignment of CPU, PCIe, and peripheral cables across any of the available 9-pin sockets. The (20+4) Pin buckle connector is also covered by its own patent (Taiwan M563575; China 7566010). The unit accepts a full-range auto-switching input of 100V–240V via Active PFC, making it suitable for use across different regional mains voltages. Protection features include Over Voltage Protection, Over Current Protection, Over Power Protection, Short Circuit Protection, Under Voltage Protection, Over Temperature Protection, No-Load Operation support, and Surge & Inrush Protection. The Leadex VII Platinum Pro is compliant with IEC/EN 62368 safety standards and ALPM (Active Link Power Management) mode. It also meets Energy Star and EuP (Energy Using Products) regulations, and uses lead-free RoHS/WEEE-compliant materials. Verified Specifications: - Model: SF-1000F14XP-ATX-3-1 - Wattage: 1000W - Efficiency Certification: 80 PLUS Platinum (90%/92%/89% at 20%/50%/100% load) - Form Factor: ATX 3.1 / EPS 12V v2.92 compliant - Fan: 140mm F.D.B., 9-blade, Auto & ECO control - Modularity: 100% fully modular, ribbon cables - PCIe (6+2) Pin Connectors: 4 - SATA Connectors: 3 - Peripheral (4-Pin) Connectors: 1 - Input Voltage: 100V–240V (Active PFC) - Capacitors: 100% Japanese 105°C rated - Warranty: 10 Years - Colour: Black - Compliance: RoHS, WEEE, Energy Star, EuP, IEC/EN 62368
