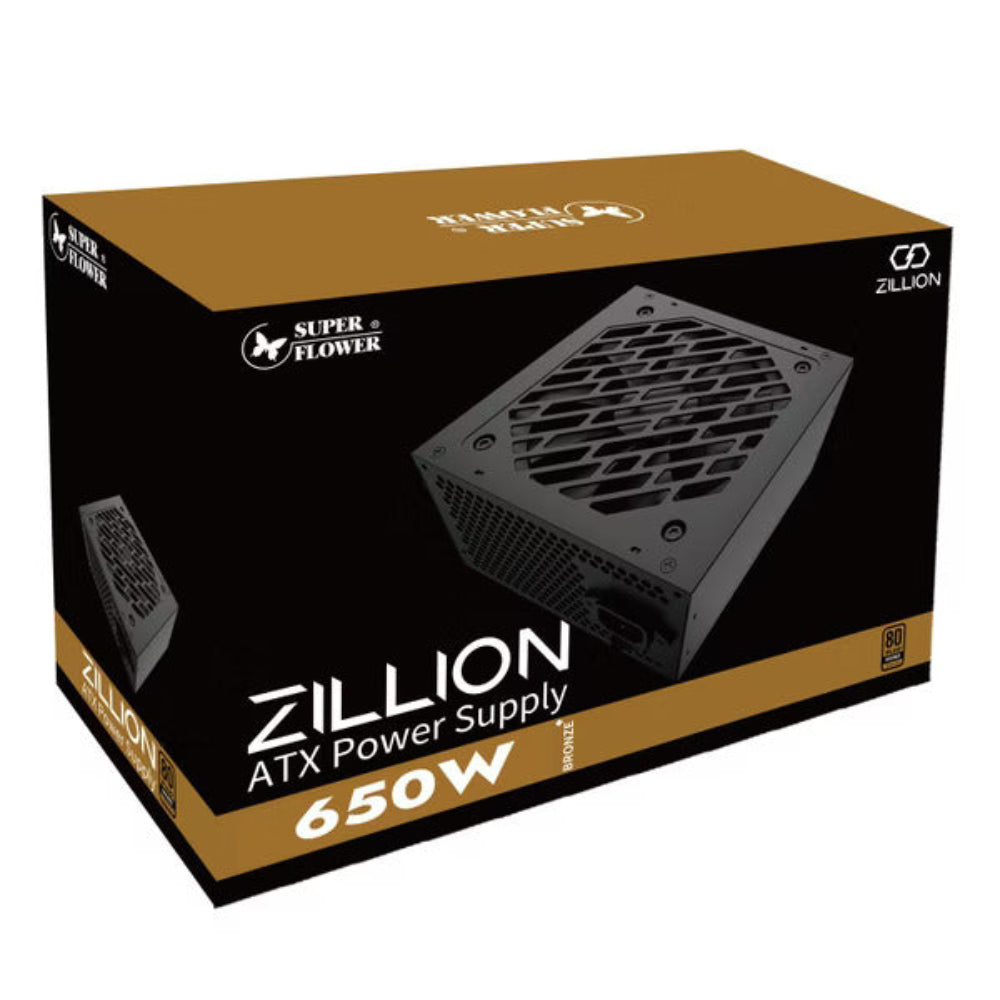

SUPER FLOWER Zillion DB 650W 80 plus Bronze Non-Modular ATX 2.0 Power Supply ( 650W )
MPN SUPER-FLOWER-ZILLION-650W-BRONZE-NON-MODULAR · Brand SUPER FLOWER
Features of SUPER FLOWER Zillion DB 650W 80 plus Bronze Non-Modular ATX 2.0 Power Supply ( 650W ) EXCELLENT ADAPTABILITY Support All Intel/ AMD Multi-Core CPU & ATX/ BTX Compatible Motherboards. 80 Plus BRONZE 230V EU 80 PLUS® Bronze Certified, 85% 88% 85% Efficiency At 20% 50% 100% Rated Load. LONG LIFE SILENT FAN The silent and efficient fan offers excellent heat dissipation performance and a quiet operating environment. Support All Intel / AMD Multi-Core CPU & ATX / BTX Compatible Mot
Inclusive of GST · GST invoice available
Overview
Features of SUPER FLOWER Zillion DB 650W 80 plus Bronze Non-Modular ATX 2.0 Power Supply ( 650W )
EXCELLENT ADAPTABILITY
Support All Intel/ AMD Multi-Core CPU & ATX/ BTX Compatible Motherboards.
80 Plus BRONZE 230V EU
80 PLUS® Bronze Certified, 85% 88% 85% Efficiency At 20% 50% 100% Rated Load.
LONG LIFE SILENT FAN
The silent and efficient fan offers excellent heat dissipation performance and a quiet operating environment.
- Support All Intel / AMD Multi-Core CPU & ATX / BTX Compatible Motherboards.
- Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card.
- 80 PLUS® Bronze Certified, 85% 88% 85% Efficiency At 20% 50% 100% Rated Load.
- Comply With ATX 12V v2.3, EPS 12V v2.92 Specification.
- PCI-E (6+2) Pin Connector For High-End Graphic Card Requirement.
- OVP / SCP / OPP / NLP
- All Flat Cables.
- 105°C Taiwanese Main Capacitor.
Specifications of SUPER FLOWER Zillion DB 650W 80 plus Bronze Non-Modular ATX 2.0 Power Supply ( 650W )
| Wattage | 650W ( SF-650Z12DB ) |
| Efficiency | 20%: 85%; 50%: 88%; 100%: 85% (230V EU Internal Bronze) |
| Intel Power Design Guide | ATX 12V v2.3, EPS 12V v2.92 Specification. |
| AC Input / Frequency | 200V~240V | 50-60Hz |
| Fan Size | 120mm Sleeve Fan |
| Dimension | 140mm(L) x 150mm(W) x 86mm(H) |
| Protection | OVP / SCP / OPP / NLP |
| Safety | TÜV / CB / CE / RoHS |
| Weight | Around 1.5 KG |

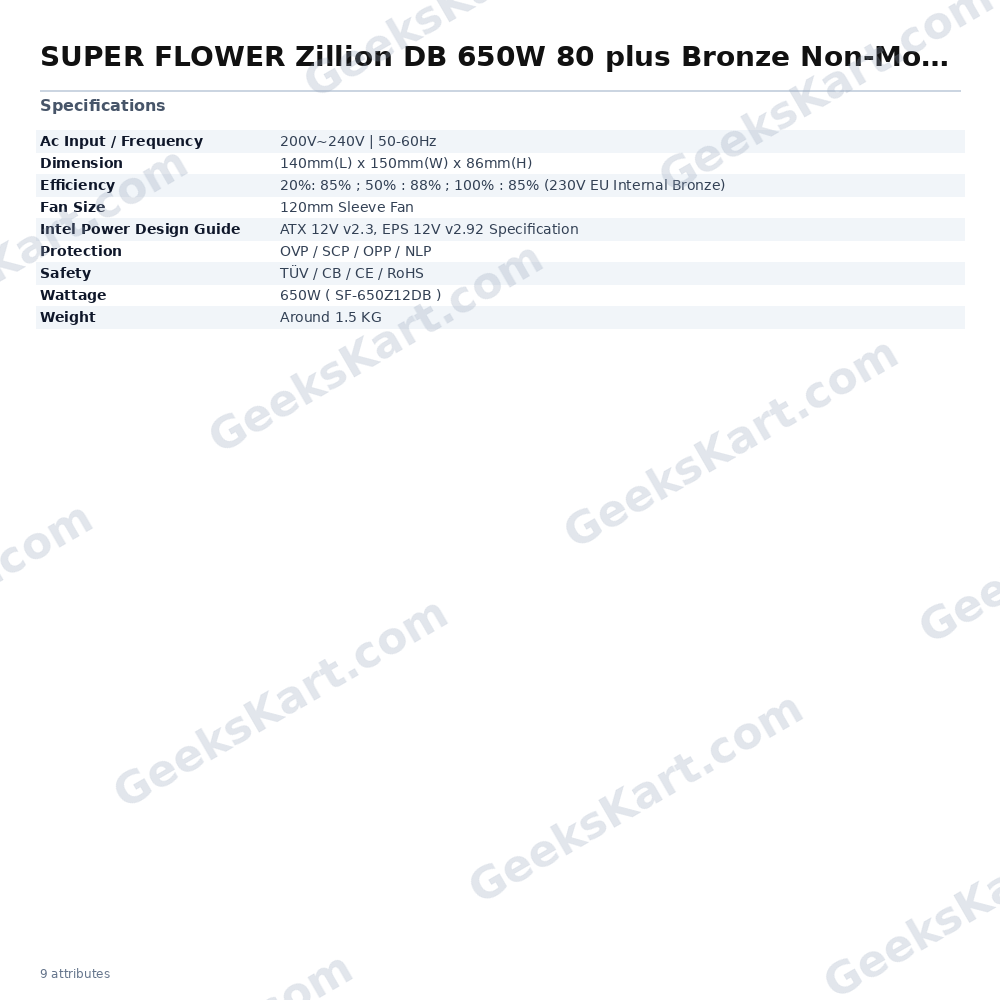

Datasheet
| Safety | TÜV / CB / CE / RoHS |
|---|---|
| Weight | Around 1.5 KG |
| Wattage | 650W ( SF-650Z12DB ) |
| Fan Size | 120mm Sleeve Fan |
| Dimension | 140mm(L) x 150mm(W) x 86mm(H) |
| Efficiency | 20%: 85% ; 50% : 88% ; 100% : 85% (230V EU Internal Bronze) |
| Protection | OVP / SCP / OPP / NLP |
| Ac Input / Frequency | 200V~240V, 50-60Hz |
| Intel Power Design Guide | ATX 12V v2.3, EPS 12V v2.92 Specification |
