THERMALTAKE AX100 EATX Mid Tower Cabinet (Black)

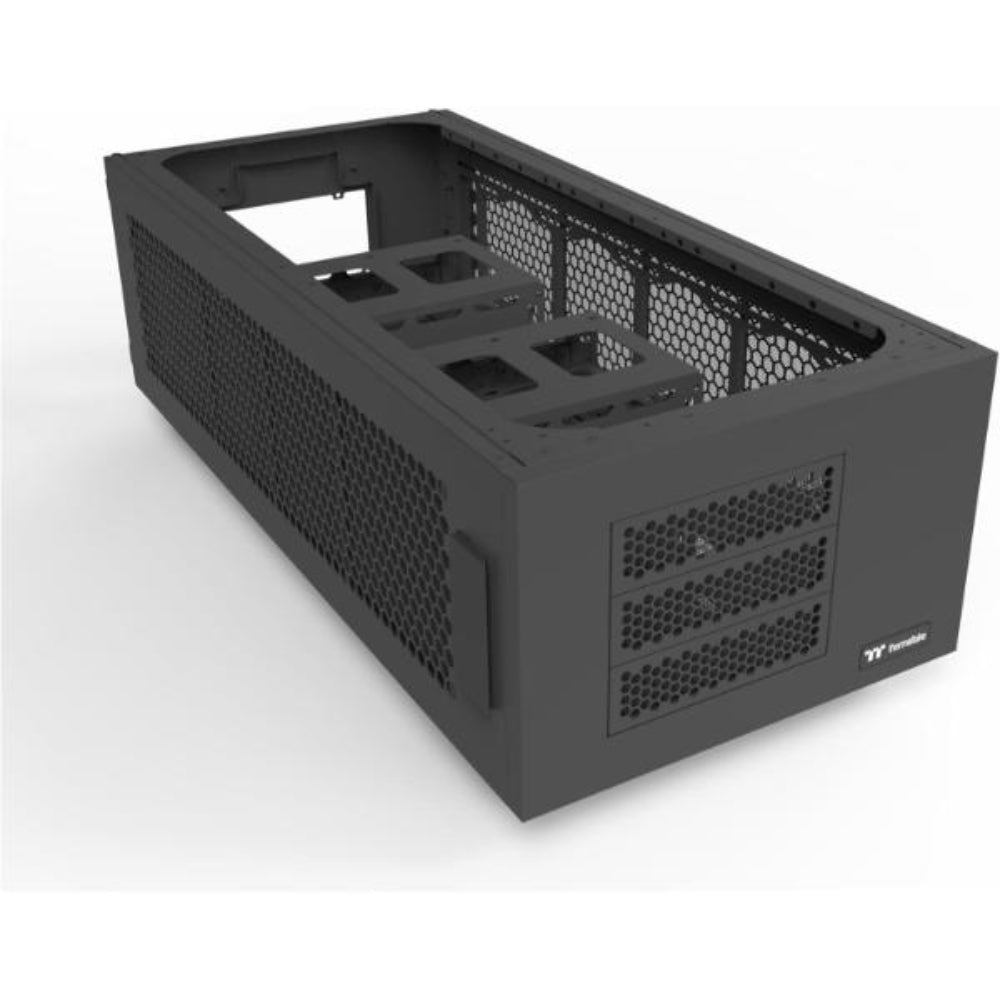

The Thermaltake AX100 is a dedicated pedestal expansion unit designed to work alongside the Thermaltake AX700 or AX700 TG Super Tower Chassis. Rather than a standalone mid-tower, the AX100 functions as an add-on chamber — stackable either beneath, above, or on both sides of the primary chassis — giving power users a structured path to scale their system without rebuilding from scratch. Storage capacity is a headline strength. The AX100 houses up to eight drives simultaneously, accepting any combination of 3.5-inch HDDs and 2.5-inch SSDs in its dedicated HDD cage. Whether you are building a content-creation workstation with multi-terabyte archives or a NAS-adjacent rig that demands high drive counts, the AX100 provides the physical real estate to match. Cooling headroom is equally substantial. Both the left and right side panels support fan arrays of up to four 120mm or four 140mm fans each, totalling eight fan positions across the chassis. On the radiator side, each panel accommodates up to a 480mm or 560mm radiator, enabling dual large-format liquid cooling loops — an arrangement suited to highly thermal-loaded builds where a single radiator is insufficient. Power supply integration is handled via a standard PS2 ATX PSU slot (optional fitment), with a PSU length ceiling of 220mm when two bottom fans are installed — a clearance figure builders should verify against their chosen unit before purchasing. The chassis body is fabricated from SPCC steel with a steel panel finish in matte black. Dust management is addressed by filters positioned on the front, left, and right sides. Thermaltake's Dismantlable Modular Design (DMD) philosophy carries through: panel sections detach cleanly to eliminate awkward fastener access during assembly and maintenance. Verifiable Specifications: • Part Number: CA-11C-00D1NN-00 • Case Type: Pedestal (expansion unit) • Dimensions (H × W × D): 201 × 320 × 678.3 mm (7.91 × 12.60 × 26.71 in) • Material: SPCC steel • Panel: Steel, Black • Drive Bays: 8 × 3.5-inch or 2.5-inch (HDD cage) • Fan Support — Left Side: 4 × 120mm or 4 × 140mm; Right Side: 4 × 120mm or 4 × 140mm • Radiator Support — Left Side: up to 480mm or 560mm; Right Side: up to 480mm or 560mm • PSU: Standard PS2 ATX (optional); max length 220mm with two bottom fans installed • Dust Filters: Front, left side, right side • Compatible Primary Chassis: AX700 / AX700 TG Super Tower
