THERMALTAKE Core P3 ATX Mid Tower Cabinet (Black)

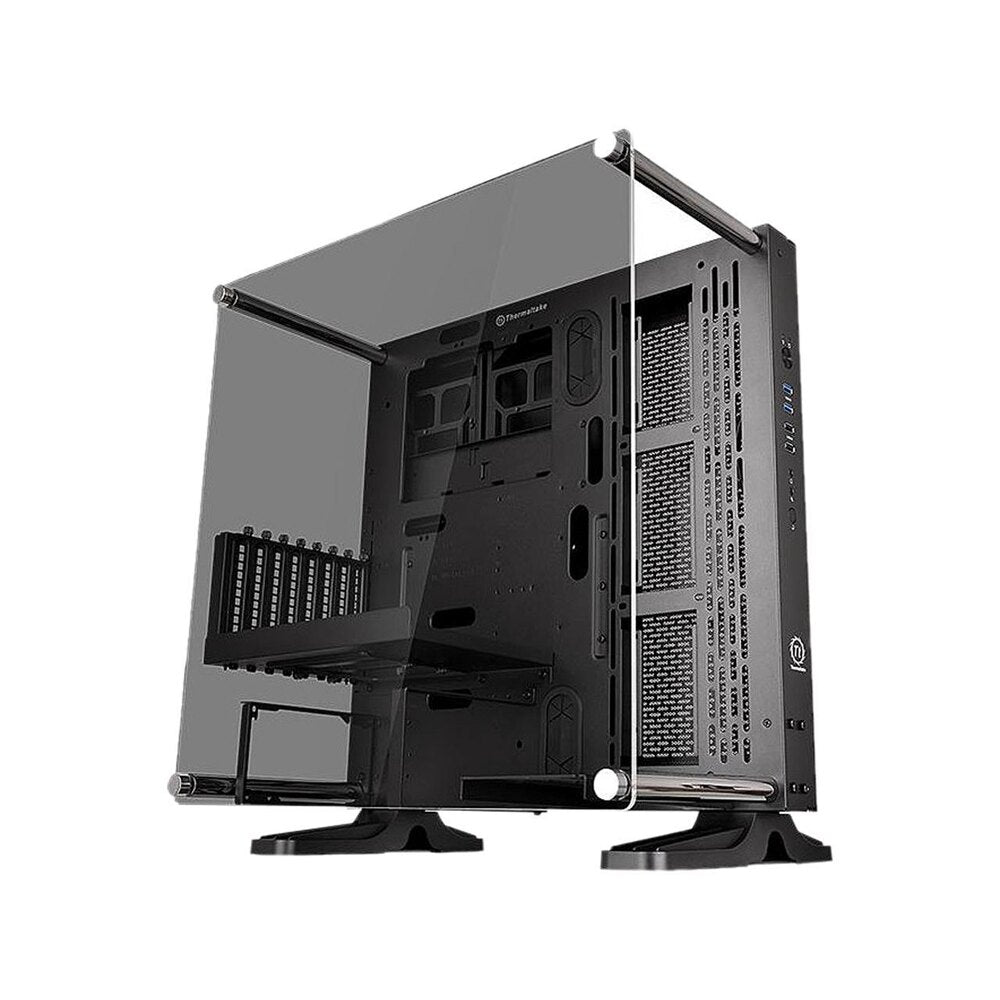

The Thermaltake Core P3 TG is an ATX mid-tower open-frame chassis designed from the ground up for PC builders who want maximum visibility and liquid-cooling flexibility. Its distinctive open-frame structure is paired with a single 5mm tempered glass panel, letting you showcase every component without restriction. The chassis carries Thermaltake’s Tt LCS Certified designation, indicating it has passed Thermaltake’s own design and fitment criteria for liquid-cooling configurations. One of the Core P3 TG’s defining characteristics is its 3-Way Placement Layout: the case can be oriented vertically standing, laid horizontally flat, or mounted on a wall, giving builders the freedom to display their system in any way that suits their space. The Dismantlable Modular Design (DMD) means panels, racks, and brackets can be removed and reconfigured, so installation and cable routing remain accessible at every stage of the build. The left-side mounting array supports up to three 120mm or three 140mm fans. For liquid-cooling enthusiasts, radiator clearance extends to a full 360mm or 420mm on the left side, allowing large custom or AIO loops without additional brackets. All-In-One coolers are natively supported. CPU air coolers up to 180mm tall are accommodated, while graphics cards can reach 450mm in length when no reservoir or radiator is installed (280mm with reservoir and radiator present). PSUs up to 200mm in length fit the standard PS2 PSU bay. Storage flexibility is handled by two accessible 3.5-inch or three 2.5-inch drive positions outside the chassis, plus two hidden 3.5-inch or 2.5-inch trays in the rear panel area, which also provides 45mm of cable management space. Eight expansion slots cover multi-GPU and add-in card configurations. The front I/O panel includes two USB 3.0 ports, two USB 2.0 ports, and one HD Audio connector. The case supports Mini-ITX (6.7″ × 6.7″), Micro-ATX (9.6″ × 9.6″), and ATX (12″ × 9.6″) motherboards. The steel body is constructed from SPCC (cold-rolled steel). Overall dimensions are 512 × 333 × 470 mm (H × W × D). Thermaltake backs the Core P3 TG with a 3-year warranty. Verified Specifications: – Part Number: CA-1G4-00M1WN-06 – Model: Core P3 TG | Series: Core | Case Type: Mid Tower – Dimensions (H × W × D): 512 × 333 × 470 mm (20.2 × 13.1 × 18.5 in) – Side Panel: 5mm Tempered Glass × 1 – Material: SPCC steel | Color: Black – Motherboard Support: Mini-ITX, Micro-ATX, ATX – Fan Support (Left Side): 3 × 120mm or 3 × 140mm – Radiator Support (Left Side): 1 × 360mm or 1 × 420mm – CPU Cooler Height Limit: 180mm – GPU Length Limit: 450mm (no radiator/reservoir), 280mm (with radiator/reservoir) – PSU Length Limit: 200mm | PSU Type: Standard PS2 (optional, not included) – Drive Bays: 2 × 3.5″ or 3 × 2.5″ (accessible, outside chassis); 2 × 3.5″/2.5″ (hidden, inside chassis) – Expansion Slots: 8 – I/O Ports: USB 3.0 × 2, USB 2.0 × 2, HD Audio × 1 – Warranty: 3 Years
