THERMALTAKE Core P3 Pro EATX Mid Tower Cabinet (Black)
MPN THERMALTAKE-CORE-P3-PRO · Brand Thermaltake
The Thermaltake Core P3 TG Pro is an open-frame E-ATX mid-tower with 4 mm tempered glass, support for up to 420 mm radiators, rotational PCIe slots, and a fully modular design — built for enthusiast custom and AIO liquid-cooled systems
Inclusive of GST · GST invoice available
Overview
The Thermaltake Core P3 TG Pro is an open-frame E-ATX mid-tower cabinet engineered for PC builders who want full visibility and maximum hardware flexibility. Built as a refined successor to the Core P3 TG, this chassis introduces a redesigned base for improved stability, modernised front I/O ports, and a rethought motherboard-side layout that opens up new possibilities for high-end GPU and cooling installations. One of the standout additions is an extra fan bracket that can be positioned at the front or on the top of the chassis. This bracket accommodates up to three 120 mm or 140 mm fans, a 360 mm or 420 mm radiator, or a custom distro plate — giving both AIO and custom loop enthusiasts plenty of room to work with. A redesigned recessed compartment on the motherboard's right side makes installing long graphics cards more straightforward and supports dual GPU placement orientations. The rotational PCIe expansion slots let you orient your graphics card either horizontally or vertically for optimal cable routing and showcase potential. An included GPU holder helps counter sag from heavy cards. The chassis supports motherboards from Mini-ITX through to E-ATX (up to 12" × 10.5"), making it compatible with a wide range of platform configurations. The single 4 mm tempered glass side panel provides an unobstructed view of your components while contributing to the case's structural rigidity. Three mounting orientations — vertical, horizontal, and wall-mounted — allow you to present your build however suits your setup. The Dismantlable Modular Design (DMD) lets you reconfigure panels, racks, and brackets without awkward blind screw positions. Verified Specifications: - Part Number: CA-1G4-00M1WN-09 - Case Type: Mid Tower (Open Frame) - Dimensions (H × W × D): 535 × 268 × 500 mm - Net Weight: 12.5 kg / 27.6 lbs - Material: SPCC steel - Side Panel: 4 mm Tempered Glass × 1 - Motherboard Support: Mini-ITX, Micro-ATX, ATX, E-ATX (up to 12" × 10.5") - Expansion Slots: 8 - I/O Ports: USB 3.2 Gen 2 Type-C × 1, USB 3.0 × 2, HD Audio × 1 - Fan Support (M/B side & bracket): up to 3 × 120 mm or 3 × 140 mm per zone - Radiator Support (M/B side & bracket): up to 420 mm per zone - CPU Cooler Clearance: 180 mm - GPU Length: 450 mm (without reservoir), 330 mm (with reservoir) - PSU Length: up to 200 mm (Standard PS2, optional) - Drive Bays: up to 4 × 3.5" HDD or 5 × 2.5" SSD (with HDD bracket) - Warranty: 3 Years

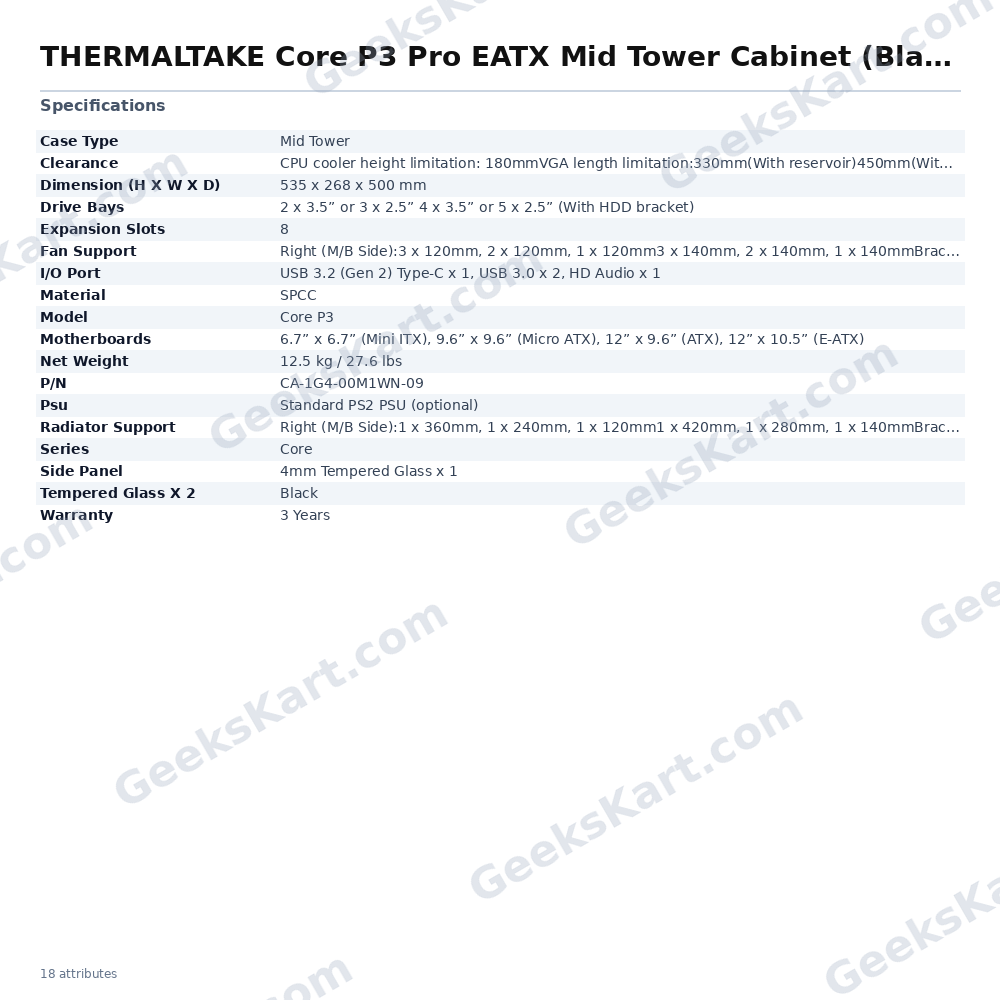

Datasheet
| Warranty | 3 Years |
|---|---|
| P/N | CA-1G4-00M1WN-09 |
| Psu | Standard PS2 PSU (optional) |
| Model | Core P3 |
| Series | Core |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| Material | SPCC |
| Case Type | Mid Tower |
| Clearance | CPU cooler height limitation: 180mmVGA length limitation:330mm(With reservoir)450mm(Without reservoir)PSU length limitation:200mm |
| Drive Bays | 2 x 3.5” or 3 x 2.5” 4 x 3.5” or 5 x 2.5” (With HDD bracket) |
| Net Weight | 12.5 kg / 27.6 lbs |
| Side Panel | 4mm Tempered Glass x 1 |
| Fan Support | Right (M/B Side):3 x 120mm, 2 x 120mm, 1 x 120mm3 x 140mm, 2 x 140mm, 1 x 140mmBracket (front or top):3 x 120mm, 2 x 120mm, 1 x 120mm3 x 140mm, 2 x 140mm, 1 x 140mm |
| Motherboards | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 10.5” (E-ATX) |
| Expansion Slots | 8 |
| Radiator Support | Right (M/B Side):1 x 360mm, 1 x 240mm, 1 x 120mm1 x 420mm, 1 x 280mm, 1 x 140mmBracket (front or top):1 x 360mm, 1 x 240mm, 1 x 120mm1 x 420mm, 1 x 280mm, 1 x 140mm |
| Tempered Glass X 2 | Black |
| Dimension (H X W X D) | 535 x 268 x 500 mm |
